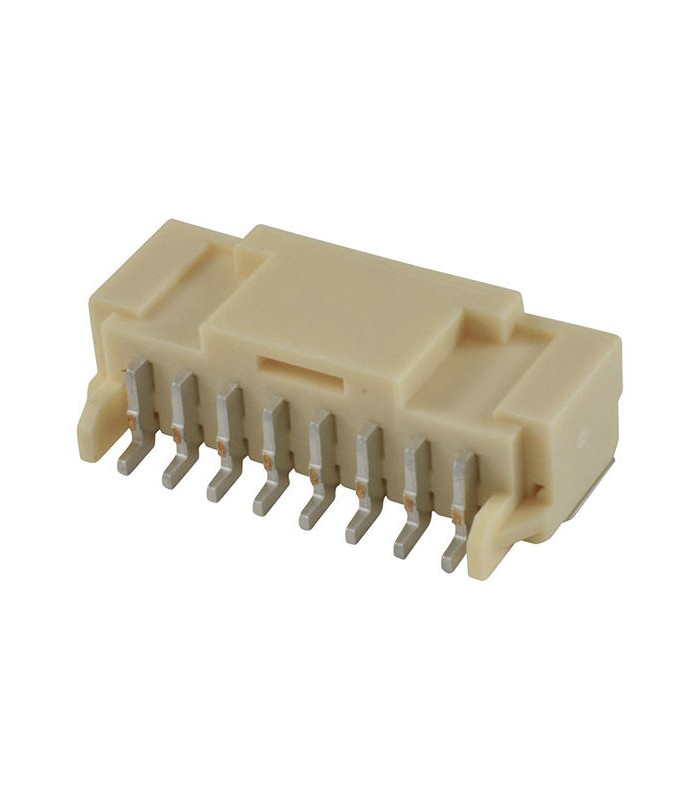

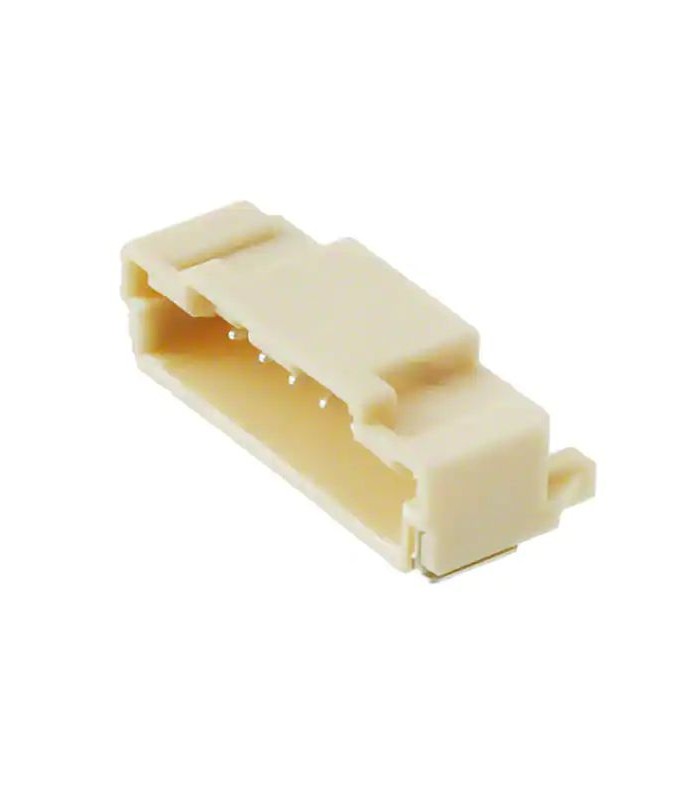

Connectors Duraclik Female 6 Way PCB 90°
Errebi code: 49005
Producer code: 502352-0800
Producer: Molex
Read moreShow lessProducer code: 502352-0800
Producer: Molex
€1.70
(tax excl.)
€2.07
(tax incl.)
Condition
New
Reference:
RBCTDCFCS8VM
Brand:
Add to wishlist
Series: 502352
Application: Automotive, Signal, Wire-to-BoardOverview DuraClik Connector System
Product Name: DuraClik
Breakaway: No
Circuits (Loaded): 8
Circuits (maximum): 8
Color - Resin: Natural
Durability (mating cycles max): 30
First Mate / Last Break: No
Flammability: SC-0
Glow-Wire Capable: No
Keying to Mating Part: Yes
Lock to Mating Part: Yes
Mated Height: 6.40mm
Material - Metal: Copper Alloy
Material - Plating Mating: Tin
Material - Resin: Polyamide
Number of Rows: 1
Orientation: Right Angle
PCB Locator: No
PCB Retention: Yes
Pitch - Mating Interface: 2.00mm
Polarized to Mating Part: Yes
Polarized to PCB: Yes
Stackable: No
Temperature Range - Operating: -40° to +105°C
Termination Interface: Style: Surface Mount
Current - Maximum per Contact: 3.0A
Voltage - Maximum: 125V
Read moreShow less
Application: Automotive, Signal, Wire-to-BoardOverview DuraClik Connector System
Product Name: DuraClik
Breakaway: No
Circuits (Loaded): 8
Circuits (maximum): 8
Color - Resin: Natural
Durability (mating cycles max): 30
First Mate / Last Break: No
Flammability: SC-0
Glow-Wire Capable: No
Keying to Mating Part: Yes
Lock to Mating Part: Yes
Mated Height: 6.40mm
Material - Metal: Copper Alloy
Material - Plating Mating: Tin
Material - Resin: Polyamide
Number of Rows: 1
Orientation: Right Angle
PCB Locator: No
PCB Retention: Yes
Pitch - Mating Interface: 2.00mm
Polarized to Mating Part: Yes
Polarized to PCB: Yes
Stackable: No
Temperature Range - Operating: -40° to +105°C
Termination Interface: Style: Surface Mount
Current - Maximum per Contact: 3.0A
Voltage - Maximum: 125V
RBCTDCFCS8VM
Data sheet
- Product type
- Connector
- Serie
- DuraClik - 502352
- Amperage
- 3A
- Material
- PA (Polyamide, Nylon)
- Color
- White
- Operating temperature
- -40°C to +105°C
- Dimensions
- 9,40x20,00x6,40 (L x W x H)
- Flammability
- SC-0
- Voltage
- 125V
- Contact material
- Copper Alloy
- Mounting
- Printed circuit
- Kind
- Female
- Number of poles
- 8
- Number of rows
- 1
- Pitch
- 2.00 mm
- Orientation
- 90°
- Contact plating
- Tin
- Minimum order quantity
- 1
- Unit Type
- piece
Specific References
- UPC
- 800756731742
