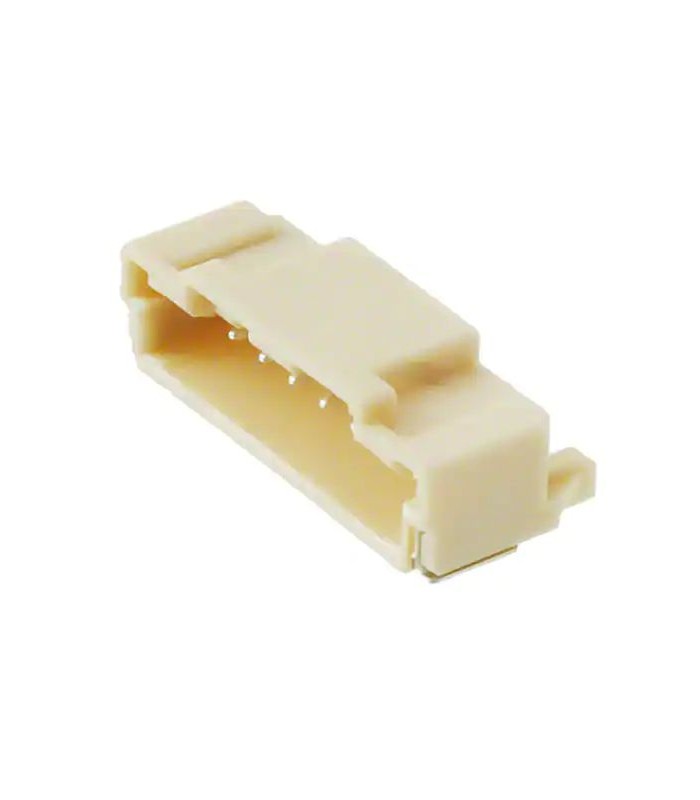

Steckverbinder Duraclik Weiblich 6 Wege PCB 90°
Errebi code: 49005
Produzent code: 502352-0800
Produzent: Molex
Read moreShow lessProduzent code: 502352-0800
Produzent: Molex
2,10 €
(tax excl.)
2,56 €
(inkl. MwSt.)
Zustand
Neu
Reference:
RBCTDCPM8VCSM
Marke:
Zur Wunschliste hinzufügen
Series: 502352
Application: Automotive, Signal, Wire-to-BoardOverview DuraClik Connector System
Product Name: DuraClik
Breakaway: No
Circuits (Loaded): 8
Circuits (maximum): 8
Color - Resin: Natural
Durability (mating cycles max): 30
First Mate / Last Break: No
Flammability: SC-0
Glow-Wire Capable: No
Keying to Mating Part: Yes
Lock to Mating Part: Yes
Mated Height: 6.40mm
Material - Metal: Copper Alloy
Material - Plating Mating: Tin
Material - Resin: Polyamide
Number of Rows: 1
Orientation: Right Angle
PCB Locator: No
PCB Retention: Yes
Pitch - Mating Interface: 2.00mm
Polarized to Mating Part: Yes
Polarized to PCB: Yes
Stackable: No
Temperature Range - Operating: -40° to +105°C
Termination Interface: Style: Surface Mount
Current - Maximum per Contact: 3.0A
Voltage - Maximum: 125V
Read moreShow less
Application: Automotive, Signal, Wire-to-BoardOverview DuraClik Connector System
Product Name: DuraClik
Breakaway: No
Circuits (Loaded): 8
Circuits (maximum): 8
Color - Resin: Natural
Durability (mating cycles max): 30
First Mate / Last Break: No
Flammability: SC-0
Glow-Wire Capable: No
Keying to Mating Part: Yes
Lock to Mating Part: Yes
Mated Height: 6.40mm
Material - Metal: Copper Alloy
Material - Plating Mating: Tin
Material - Resin: Polyamide
Number of Rows: 1
Orientation: Right Angle
PCB Locator: No
PCB Retention: Yes
Pitch - Mating Interface: 2.00mm
Polarized to Mating Part: Yes
Polarized to PCB: Yes
Stackable: No
Temperature Range - Operating: -40° to +105°C
Termination Interface: Style: Surface Mount
Current - Maximum per Contact: 3.0A
Voltage - Maximum: 125V
RBCTDCPM8VCSM
Technische Daten
- Produktart
- Steckverbinder
- Serie
- DuraClik - 502352
- Stromstärke
- 3A
- Material
- PA (Polyamid, Nylon)
- Farbe
- Weiß
- Betriebstemperatur
- -40°C bis +105°C
- Aussenmass
- 9,40x20,00x6,40 (L x W x H)
- Entzündbarkeit
- SC-0
- Spannung
- 125V
- Kontaktmaterial
- Kupferlegierung
- Montage
- Gedruckte Schaltung
- Art
- Weibilich
- Anzahl der Pole
- 8
- Anzahl der reihen
- 1
- Raster
- 2.00 mm
- Ausrichtung
- 90°
- Kontaktbeschichtung
- Zinn
- Mindestbestellmenge
- 1
- Maßeinheit
- stück
Besondere Bestellnummern
- upc
- 800756731742
