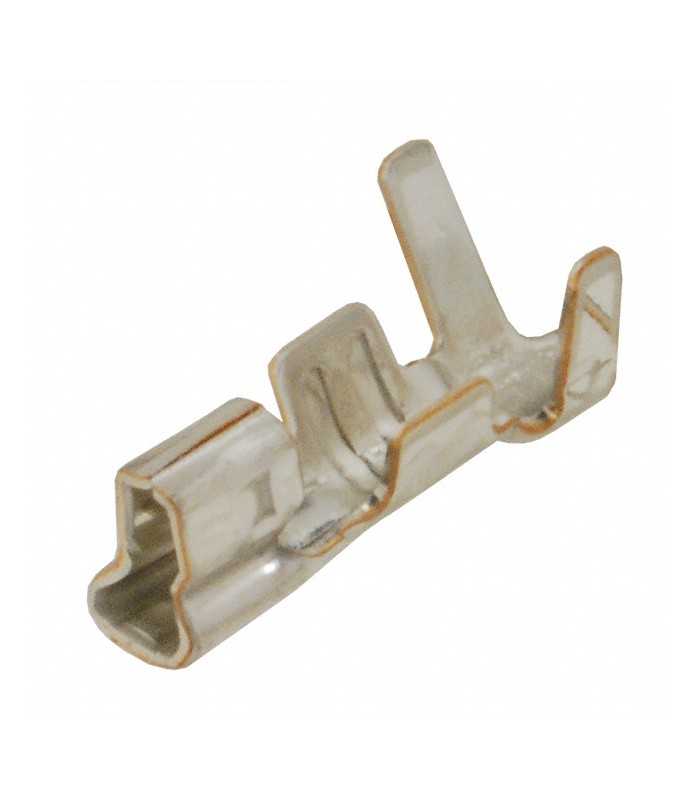

EHR Terminal female
Errebi code: 16930
Producer code: SEH-001T-P0.6
Producer: Japan Solderless Terminals
Read moreShow lessProducer code: SEH-001T-P0.6
Producer: Japan Solderless Terminals
€0.04
(tax excl.)
€0.05
(tax incl.)
Condition
New
Reference:
RBTNEHRF22
Brand:
Add to wishlist
Series: EH
For Use With: EH series Housing
Contact Gender: Socket
Contact Material: Phosphor Bronze
Contact Plating: Tin
Contact Termination Type: Crimp
Wire Size AWG Min: 22AWG
Wire Size AWG Max: 30AWG
SVHC: No SVHC (16-Jun-2014)
Cable Diameter Max: 1.9mm
Cable Diameter Min: 1.0mm
Contact Resistance: 10mohm
Contact Termination: Crimp
Current Rating: 3A
Operating Temperature Max: 85°C
Operating Temperature Min: -25°C
Wire Area Size Max: 0.33mm²
Wire Area Size Min: 0.05mm²
Working Voltage: 250V
Read moreShow less
For Use With: EH series Housing
Contact Gender: Socket
Contact Material: Phosphor Bronze
Contact Plating: Tin
Contact Termination Type: Crimp
Wire Size AWG Min: 22AWG
Wire Size AWG Max: 30AWG
SVHC: No SVHC (16-Jun-2014)
Cable Diameter Max: 1.9mm
Cable Diameter Min: 1.0mm
Contact Resistance: 10mohm
Contact Termination: Crimp
Current Rating: 3A
Operating Temperature Max: 85°C
Operating Temperature Min: -25°C
Wire Area Size Max: 0.33mm²
Wire Area Size Min: 0.05mm²
Working Voltage: 250V
RBTNEHRF22
Data sheet
- Product type
- Terminal
- Serie
- EH
- Amperage
- 3A
- Operating temperature
- -25°C a +85°C
- Voltage
- 250V
- Contact material
- Phosphor Bronze
- Mounting
- On cable
- Wire range
- 0.05 - 0.33 mmq
- Kind
- Female
- Orientation
- 180°
- Contact plating
- Tin
- Minimum order quantity
- 40
- Unit Type
- pieces
