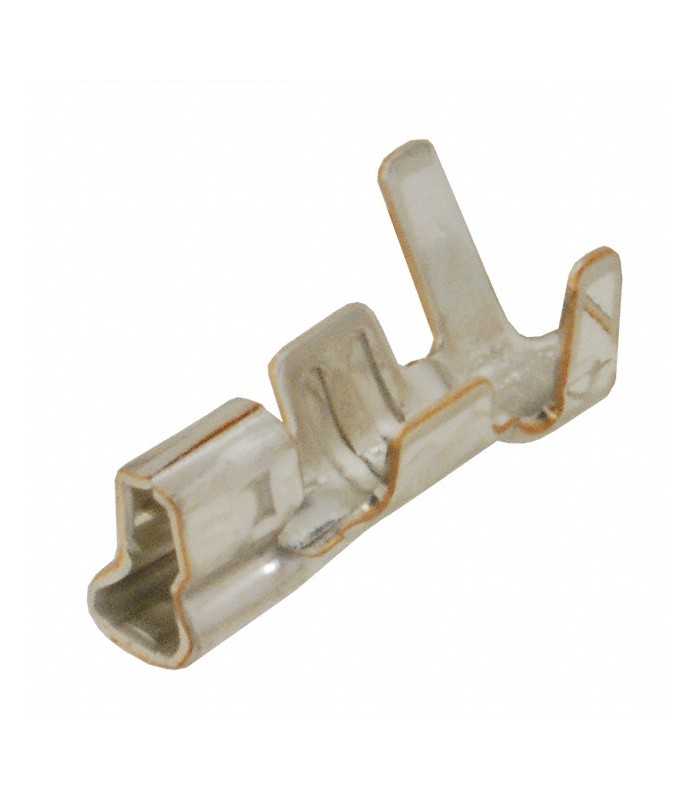

Terminale EHR femmina
Codice ErreBi: 16930
Codice produttore: SEH-001T-P0.6
Produttore: Japan Solderless Terminals
Confezione: 40 pezzi
Note: Quantità 1 corrisponde a 40 pezzi
Codice produttore: SEH-001T-P0.6
Produttore: Japan Solderless Terminals
Confezione: 40 pezzi
Note: Quantità 1 corrisponde a 40 pezzi
0,40 €
(Tasse escluse)
0,49 €
(0,01 € / pcs)
Condizione
Nuovo prodotto
Reference:
RBTNEHRF
Brand:
Aggiungi alla lista desideri
Series: EH
For Use With: EH series Housing
Contact Gender: Socket
Contact Material: Phosphor Bronze
Contact Plating: Tin
Contact Termination Type: Crimp
Wire Size AWG Min: 22AWG
Wire Size AWG Max: 30AWG
SVHC: No SVHC (16-Jun-2014)
Cable Diameter Max: 1.9mm
Cable Diameter Min: 1.0mm
Contact Resistance: 10mohm
Contact Termination: Crimp
Current Rating: 3A
Operating Temperature Max: 85°C
Operating Temperature Min: -25°C
Wire Area Size Max: 0.33mm²
Wire Area Size Min: 0.05mm²
Working Voltage: 250V
For Use With: EH series Housing
Contact Gender: Socket
Contact Material: Phosphor Bronze
Contact Plating: Tin
Contact Termination Type: Crimp
Wire Size AWG Min: 22AWG
Wire Size AWG Max: 30AWG
SVHC: No SVHC (16-Jun-2014)
Cable Diameter Max: 1.9mm
Cable Diameter Min: 1.0mm
Contact Resistance: 10mohm
Contact Termination: Crimp
Current Rating: 3A
Operating Temperature Max: 85°C
Operating Temperature Min: -25°C
Wire Area Size Max: 0.33mm²
Wire Area Size Min: 0.05mm²
Working Voltage: 250V
RBTNEHRF
Scheda tecnica
- Serie
- EH
- Amperaggio
- 3A
- Temperatura operativa
- -25°C a +85°C
- Voltaggio
- 250V
- Materiale del contatto
- Bronzo fosforico
- Range del filo
- 0.05 - 0.33 mmq
- Genere
- Femmina
- Copertura del contatto
- Stagno
