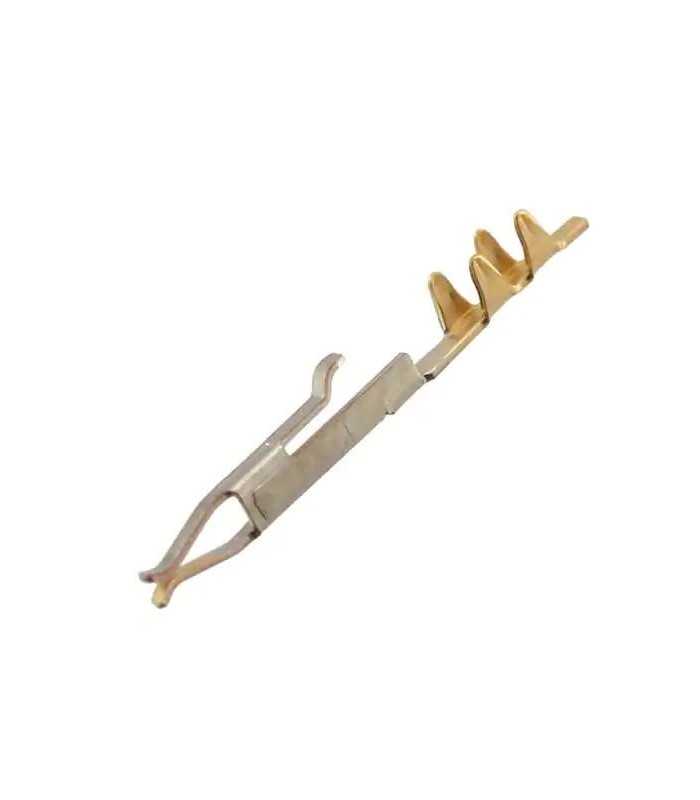

FFC Terminal female

ErreBi code: 20212
Producer code: 1-487547-2
Producer: TE/Connectivity
Read moreShow less
€0.27 (tax excl.)
€0.33

Discounts for quantities

Quantity Unit price You Save
6 €0.33 €0.00
12 €0.30 €0.39
30 €0.26 €1.97
54 €0.25 €4.45
102 €0.21 €11.79
252 €0.18 €37.31
504 €0.16 €83.01
1002 €0.15 €181.70
Available in stock 300 Items
The minimum purchase order quantity for the product is 6.
Condition
New
Reference:
RBTNFFCF
Add to wishlist
Description
Product Type Features
-Connector System: Cable-to-Cable
-Sealable: No
-Connector & Contact Terminates To: Wire & Cable

Configuration Features
-Compatible With Wire & Cable Type: FFC

Contact Features
-Contact Base Material: Phosphor Bronze
-PCB Contact Termination Area Plating Material: Gold Flash
-Contact Underplating Material: Nickel
-Contact Mating Area Plating Material Thickness(µin): 15
-Contact Type: Socket
-Contact Mating Area Plating Material: Gold, Gold Flash over Palladium Nickel
-Contact Current Rating (Max)(A): 1.5

Termination Features
-Termination Method to Wire & Cable: Insulation Displacement (IDC)

Mechanical Attachment
-Connector Mounting Type: Cable Mount (Free-Hanging)

Housing Features
-Centerline (Pitch): 1.27mm[.05in]

Dimensions
-Accepts Conductor Width(mm): .66, 2.33

Usage Conditions
-Operating Temperature Range: -55 – 105°C[-67 – 221°F]

Operation/Application
-Circuit Application: Signal
Read moreShow less
Product Details
RBTNFFCF

Data sheet

Product type
Terminal
Serie
IDC
Amperage
1.5A
Operating temperature
-55°C a +105°C
Contact material
Phosphor Bronze
Mounting
On cable
Kind
Female
Pitch
1.27 mm
Orientation
180°
Contact plating
Nichel (Gold finish)
Minimum order quantity
6
Unit Type
pieces
