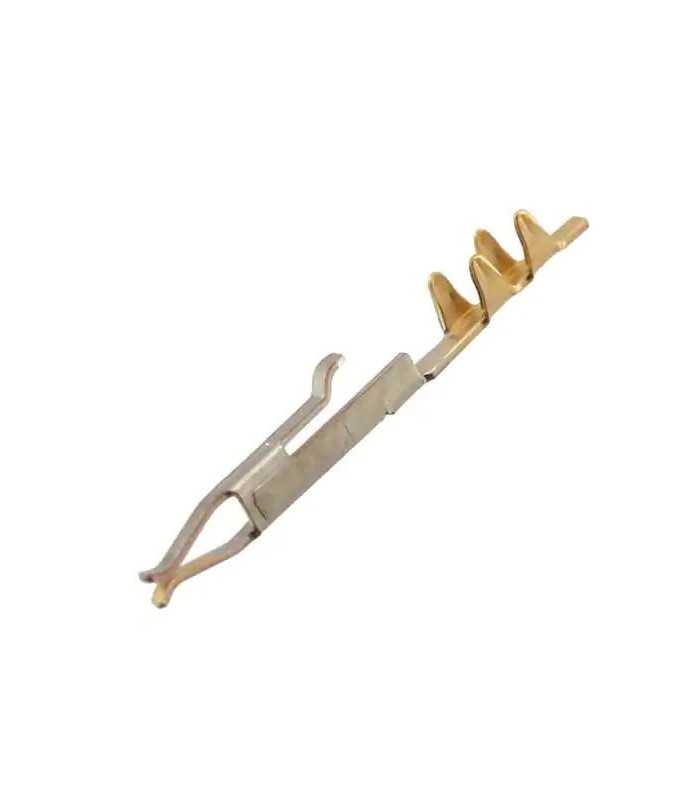

Terminal FFC hembra

Product Type Features
-Connector System: Cable-to-Cable
-Sealable: No
-Connector & Contact Terminates To: Wire & Cable

Configuration Features
-Compatible With Wire & Cable Type: FFC

Contact Features
-Contact Base Material: Phosphor Bronze
-PCB Contact Termination Area Plating Material: Gold Flash
-Contact Underplating Material: Nickel
-Contact Mating Area Plating Material Thickness(µin): 15
-Contact Type: Socket
-Contact Mating Area Plating Material: Gold, Gold Flash over Palladium Nickel
-Contact Current Rating (Max)(A): 1.5

Termination Features
-Termination Method to Wire & Cable: Insulation Displacement (IDC)

Mechanical Attachment
-Connector Mounting Type: Cable Mount (Free-Hanging)

Housing Features
-Centerline (Pitch): 1.27mm[.05in]

Dimensions
-Accepts Conductor Width(mm): .66, 2.33

Usage Conditions
-Operating Temperature Range: -55 – 105°C[-67 – 221°F]

Operation/Application
-Circuit Application: Signal
