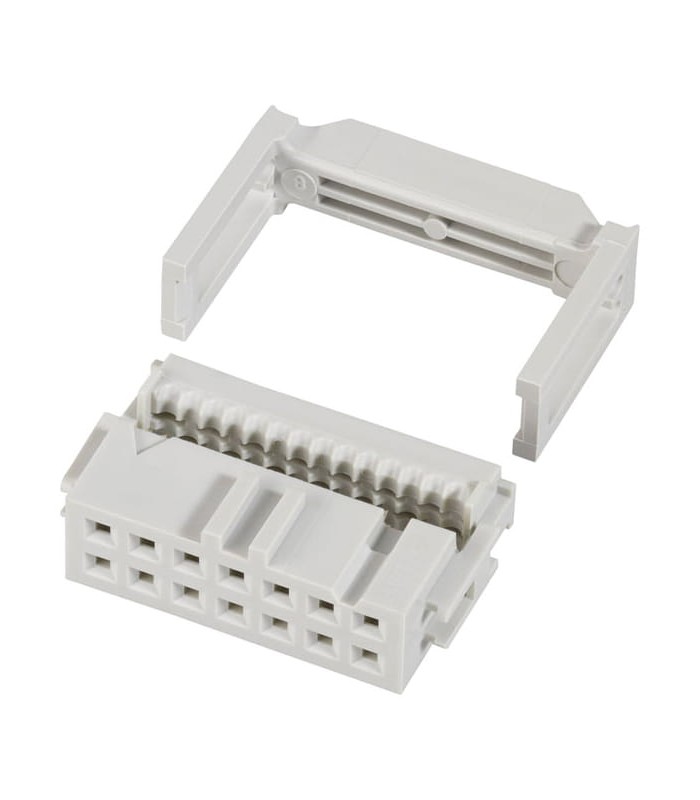

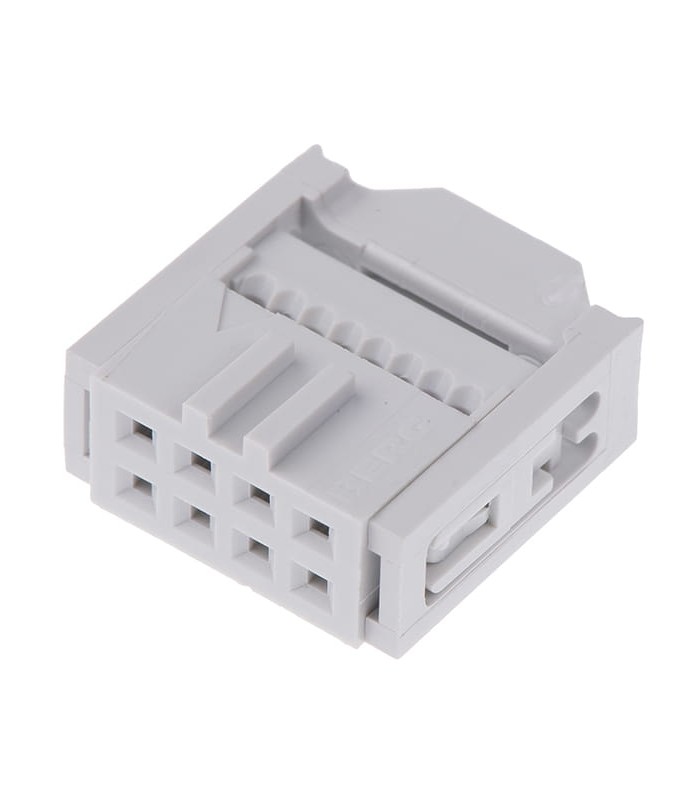

IDC connector female 8 way
Errebi code: 13754
Producer code: Cross Reference 71600-108LF
Producer: Cross Reference Delphi connection system
Package: 5 pieces
Note: Quantity 1 corresponds to 5 pieces
Read moreProducer code: Cross Reference 71600-108LF
Producer: Cross Reference Delphi connection system
Package: 5 pieces
Note: Quantity 1 corresponds to 5 pieces
€1.25
(tax excl.)
€1.53
(€0.31 / pcs)
Condition
New product
Reference:
RBIDC8F
Brand:
Product Range: FCI - Quickie Series
Contact Termination Type: IDC / IDT
Gender: Receptacle
No. of Contacts: 8
No. of Rows: 2
Pitch Spacing: 2.54mm
Contact Plating: Gold over Nickel
Contact Material: Phosphor Bronze
SVHC: No SVHC (16-Jun-2014)
Contact Current Rating: 1A
Contact Termination: IDC / IDT
Cut Thickness for PCBs Max: 1.6mm
Flammability Rating: UL94V-0
Insulation Resistance: 100000Mohm
No. of Mating Cycles: 250
Operating Temperature Max: 105°C
Operating Temperature Min: -65°C
Polarisation Type: Bump or Clip
Row Pitch: 2.54mm
Termination Method: IDC
Withstand Voltage: 1000V)
Read more
Contact Termination Type: IDC / IDT
Gender: Receptacle
No. of Contacts: 8
No. of Rows: 2
Pitch Spacing: 2.54mm
Contact Plating: Gold over Nickel
Contact Material: Phosphor Bronze
SVHC: No SVHC (16-Jun-2014)
Contact Current Rating: 1A
Contact Termination: IDC / IDT
Cut Thickness for PCBs Max: 1.6mm
Flammability Rating: UL94V-0
Insulation Resistance: 100000Mohm
No. of Mating Cycles: 250
Operating Temperature Max: 105°C
Operating Temperature Min: -65°C
Polarisation Type: Bump or Clip
Row Pitch: 2.54mm
Termination Method: IDC
Withstand Voltage: 1000V)
RBIDC8F
Data sheet
- Serie
- IDC
- Amperage
- 1A
- Color
- Grey
- Operating temperature
- -65°C a +105°C
- Flammability
- 94V-0
- Kind
- Female
- Number of poles
- 8
- Number of rows
- 2
- Pitch
- 2.54 mm
- Product type
- Connector body
- Minimum order quantity
- 5
- Unit Type
- pieces
