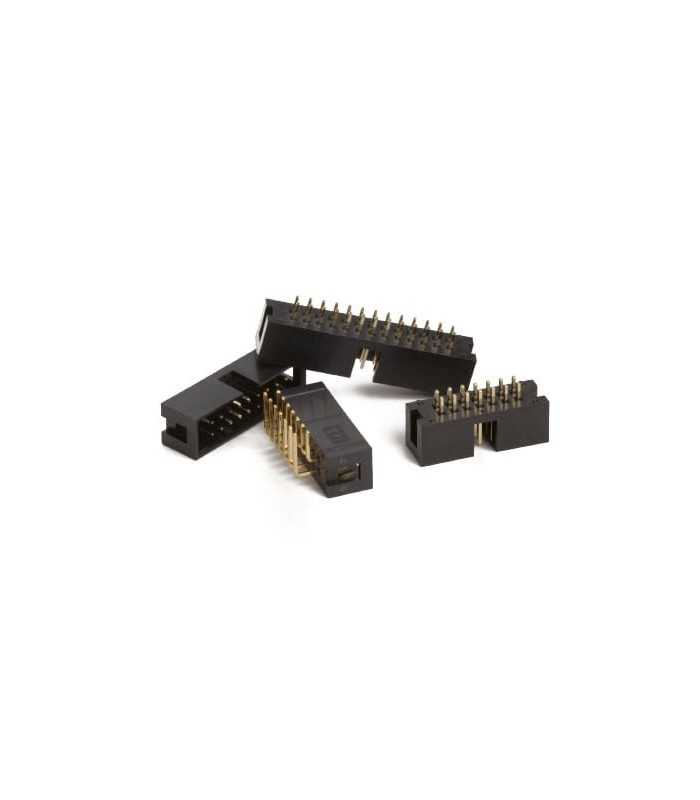

IDC connector male 16 way PCB

Errebi code: 15382
Producer code: Cross Reference 09185167324
Producer: Cross Reference Harting
Read moreShow less
€0.41 (tax excl.)
€0.50

Discounts for quantities

Quantity Unit price You Save
5 €0.50 €0.00
10 €0.45 €0.49
25 €0.40 €2.49
50 €0.38 €6.25
100 €0.32 €17.56
250 €0.28 €56.21
500 €0.25 €125.05
1000 €0.22 €275.36
Available in stock 160 Items
The minimum purchase order quantity for the product is 5.
Condition
New
Reference:
RBIDC16MCS
Add to wishlist
Description
Product Range: HARTING - SEK 18 Series
Contact Termination Type: Through Hole
Gender: Header
No. of Contacts: 16
No. of Rows: 2
Pitch Spacing: 2.54mm
Contact Plating: Gold
Contact Material: Brass
SVHC: No SVHC (16-Jun-2014)
Approval Bodies: BS, BT, DIN, F, MIL Spec, NFC
Colour: Grey
Contact Resistance: 20mohm
Contact Termination: Through Hole Vertical
Current Rating: 1A
Current Temperature: 60°C
Cut Thickness for PCBs Max: 2.4mm
Flammability Rating: UL94V-0
Housing Type: Glass filled PBT polyeste
Insulation Resistance: 1Gohm
Lead Spacing: 2.54mm
No. of Mating Cycles: 100
Operating Temperature Max: 105°C
Operating Temperature Min: -40°C
PCB Hole Diameter: 0.9mm
Termination Method: Straight Solder Pin
Voltage Rating V AC: 350V
Voltage Rating V DC: 350V
Withstand Voltage: 1050V
Working Voltage: 350V
Read moreShow less
Product Details
RBIDC16MCS

Data sheet

Product type
Connector body
Serie
IDC
Amperage
1A
Material
PBT (Polybutylene terephthalate)
Color
Grey
Operating temperature
-40°C to +105°C
Flammability
94V-0
Voltage
350V
Kind
Male
Number of poles
16
Number of rows
2
Pitch
2.54 mm
Minimum order quantity
5
Unit Type
pieces
