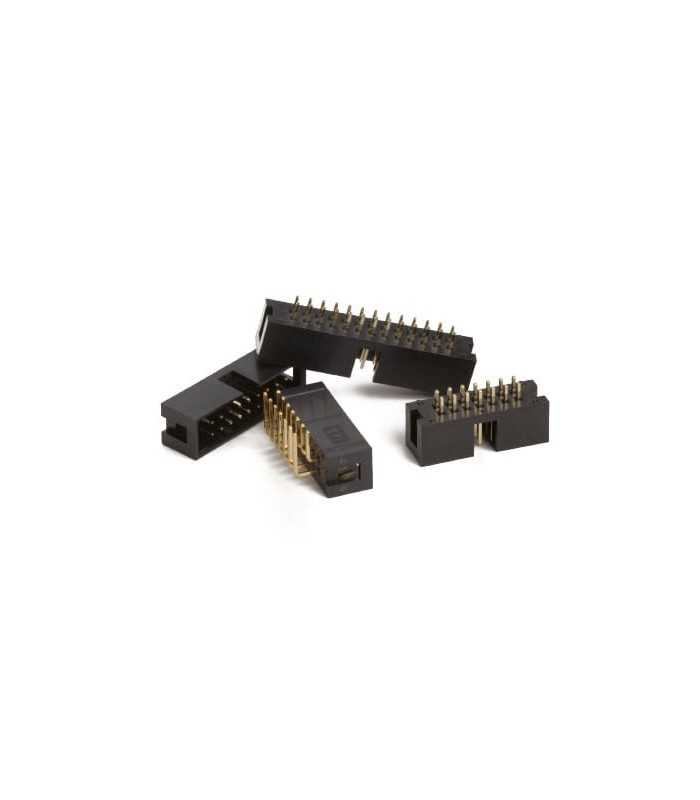

Connettore IDC maschio 16 vie da circuito stampato

Product Range: HARTING - SEK 18 Series
Contact Termination Type: Through Hole
Gender: Header
No. of Contacts: 16
No. of Rows: 2
Pitch Spacing: 2.54mm
Contact Plating: Gold
Contact Material: Brass
SVHC: No SVHC (16-Jun-2014)
Approval Bodies: BS, BT, DIN, F, MIL Spec, NFC
Colour: Grey
Contact Resistance: 20mohm
Contact Termination: Through Hole Vertical
Current Rating: 1A
Current Temperature: 60°C
Cut Thickness for PCBs Max: 2.4mm
Flammability Rating: UL94V-0
Housing Type: Glass filled PBT polyeste
Insulation Resistance: 1Gohm
Lead Spacing: 2.54mm
No. of Mating Cycles: 100
Operating Temperature Max: 105°C
Operating Temperature Min: -40°C
PCB Hole Diameter: 0.9mm
Termination Method: Straight Solder Pin
Voltage Rating V AC: 350V
Voltage Rating V DC: 350V
Withstand Voltage: 1050V
Working Voltage: 350V
