€0.06
(tax excl.)
€0.07
(tax incl.)
Errebi code: 67543Producer code: Cross Reference EHR-3Producer: ExconPlease note: the item is a reproduction of the original, please contact us for more information.

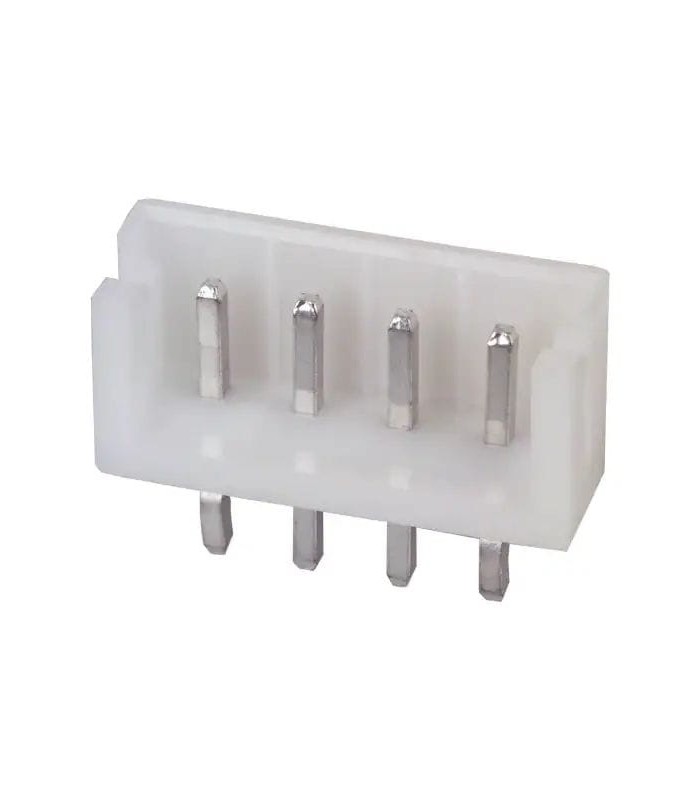

Connector EHR Step 2.50 mm Female 4 Way PCB
Errebi code: 49358
Producer code: Cross Reference B4B-EH-A-LFSN
Producer: Cross Reference Japan Solderless Terminals
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow lessProducer code: Cross Reference B4B-EH-A-LFSN
Producer: Cross Reference Japan Solderless Terminals
Please note: the item is a reproduction of the original, please contact us for more information.
€0.06
(tax excl.)
€0.07
(tax incl.)
Condition
New
Reference:
RBCTEHRPM4VCS
Brand:
Add to wishlist
Series: EHR
Contact Type: Male Pin
Pitch - Fit: 0.098" (2.50mm)
No. of positions: 4
No. of files: 1
Contact Length - Mating: 0.130" (3.30mm)
Contact Length - Pin: 0.126" (3.20mm)
Insulator Height: 0.236" (6.00mm)
Contact shape: Square
Contact finish - Pin: Tin
Contact material: Brass
Insulating material: Polyamide (PA66), nylon 6/6
Characteristics:
Operating temperature: -25°C ~ 85°C
Material flammability rating: UL94 V-0
Insulating colour: Natural
Rated current (A): 3A
Rated voltage: 250V
Paired stack heights: 8.1mm
Read moreShow less
Contact Type: Male Pin
Pitch - Fit: 0.098" (2.50mm)
No. of positions: 4
No. of files: 1
Contact Length - Mating: 0.130" (3.30mm)
Contact Length - Pin: 0.126" (3.20mm)
Insulator Height: 0.236" (6.00mm)
Contact shape: Square
Contact finish - Pin: Tin
Contact material: Brass
Insulating material: Polyamide (PA66), nylon 6/6
Characteristics:
Operating temperature: -25°C ~ 85°C
Material flammability rating: UL94 V-0
Insulating colour: Natural
Rated current (A): 3A
Rated voltage: 250V
Paired stack heights: 8.1mm
RBCTEHRPM4VCS
Data sheet
- Product type
- Connector body
- Serie
- EHR
- Amperage
- 3A
- Material
- PA66 (Polyamide 66, Nylon 66)
- Color
- White
- Operating temperature
- -25°C a +85°C
- Flammability
- 94V-0
- Voltage
- 250V
- Contact material
- Brass
- Mounting
- Printed circuit
- Kind
- female + female terminal
- Number of poles
- 4
- Number of rows
- 1
- Pitch
- 2.50 mm
- Orientation
- 180°
- Contact plating
- Tin
- Minimum order quantity
- 10
- Unit Type
- pieces
