RBCTEHRPF13V

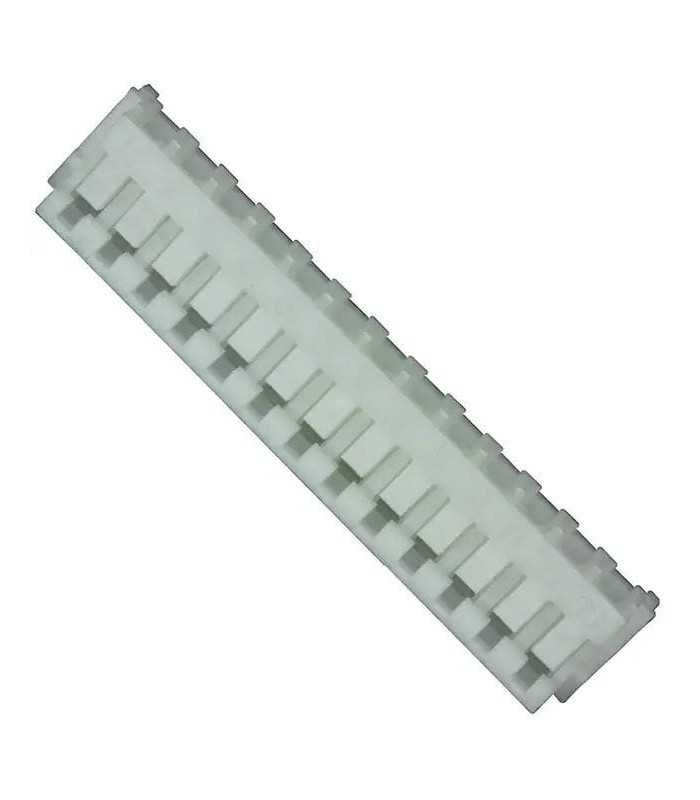

Connector EHR Step 2.00 mm Male13 Way

Errebi code: 42131
Producer code: EHR-13
Producer: Japan Solderless Terminals
Read moreShow less
€0.10 (tax excl.)
€0.12 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
20 €0.12 €0.00
40 €0.10 €0.97
60 €0.09 €1.83
100 €0.08 €4.28
260 €0.07 €14.26
500 €0.06 €30.50
1000 €0.05 €67.16
'Available in 30 working days from the order.' 2 Items
The minimum purchase order quantity for the product is 20.
Condition
New
Reference:
RBCTEHRPF13V
Brand:
Japan Solderless Terminals
Add to wishlist
Description
Product Range: JST - EHR Series
Contact Termination Type: Crimp
Gender: Receptacle
No. of Contacts: 13
No. of Rows: 1
Pitch Spacing: 2mm
Contact Plating: Tin
Contact Material: Phosphor Bronze
SVHC: No SVHC (16-Dec-2013)
Colour: White
Contact Resistance Max: 10mohm
Contact Termination: Crimp
Current rating: 2A
Flammability rating: UL94V-0
Insulation Resistance: 1000Mohm
Material: Nylon 6.6
Operating Temperature Max: 85°C
Operating Temperature Min: -25°C
Working Voltage: 100V
Read moreShow less
Product Details
RBCTEHRPF13V

Data sheet

Product type
Connector body
Serie
EHR
Amperage
3A
Material
PBT (Polybutylene terephthalate)
Color
White
Operating temperature
-25°C a +85°C
Voltage
250V
Mounting
On cable
Kind
Male
Number of poles
13
Number of rows
1
Pitch
2.50 mm
Orientation
180°
Minimum order quantity
20
Unit Type
pieces
