RBMRST5VP5.08

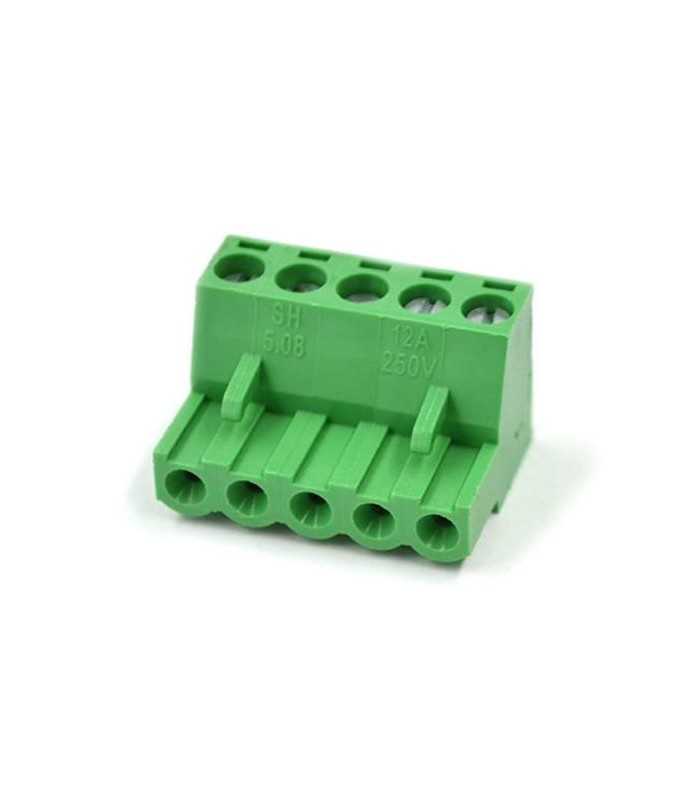

Connector terminal block to carriage 5,08 pitch Female 5 Way Green

ErreBi code: 19123
Producer code: SH05-5,08
Producer: EuroClamp
Read moreShow less
€0.82 (tax excl.)
€1.00 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
5 €1.00 €0.00
10 €0.90 €0.99
25 €0.80 €4.99
50 €0.75 €12.51
100 €0.65 €35.11
250 €0.55 €112.42
500 €0.50 €250.10
1000 €0.45 €550.72
Available in stock 167 Items
The minimum purchase order quantity for the product is 5.
Condition
New
Reference:
RBMRST5VP5.08
Brand:
EuroClamp
Add to wishlist
Description
Generality
- Pitch: 5,08 mm
- Body height: 15.50 mm
- Body depth: 18.85mm
- Size class: medium
- Conductor section: 2.5 mmq / 14 AWG
- Cable entry section: 2.8 × 3.1 mm
- Cable stripping: max 2 mm
- Working temperature: -40 ° C ÷ + 130 ° C

Electrical characteristics
- Current: 16A
- Voltage: 250V
- Pulse voltage: 4 kV

Mechanical characteristics
- Screw: M3
- Maximum torque: 0.5 Nm / 4.5 Lb-in

Materials
- Insulating body: PA - UL 94 V0
- Screw: Galvanized steel
- Clamp / spring: Nickel-plated copper alloy
- Terminal: Nickel-plated copper alloy
Read moreShow less
Product Details
RBMRST5VP5.08

Data sheet

Product type
Terminal
Amperage
16A
Material
PA (Polyamide, Nylon)
Color
Green
Operating temperature
-40°C to +130°C
Dimensions
18,85x25,40x15,50 (L x W x H)
Flammability
94V-0
Voltage
250V
Contact material
Copper Alloy
Mounting
On cable
Wire range
2.50 mmq
Kind
Female
Number of poles
5
Number of rows
1
Pitch
5.08 mm
Orientation
180°
Contact plating
Nickel
Minimum order quantity
5
Unit Type
pieces
Attachments
019123_001_Drawing.pdf
Download (1.21MB)
