€1.10
(tax excl.)
€1.34
(tax incl.)
ErreBi code: 63680Producer code: 15EDGKD-2.5-02P-13-00AHProducer: Degson

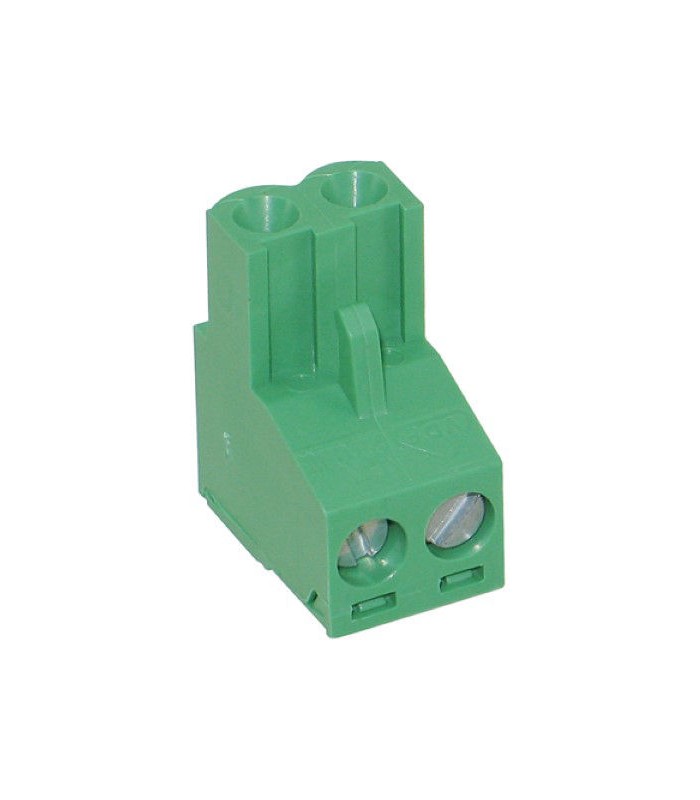

Connector terminal block to carriage 5,08 pitch Female 2 Way Green
ErreBi code: 14403
Producer code: SH02-5,08
Producer: EuroClamp
Read moreShow lessProducer code: SH02-5,08
Producer: EuroClamp
€0.31
(tax excl.)
€0.38
(tax incl.)
Condition
New
Reference:
RBMRST2VP5.08
Brand:
Add to wishlist
Generality
- Pitch: 5,08 mm
- Body height: 15.50 mm
- Body depth: 18.85mm
- Size class: medium
- Conductor section: 2.5 mmq / 14 AWG
- Cable entry section: 2.8 × 3.1 mm
- Cable stripping: max 2 mm
- Working temperature: -40 ° C ÷ + 130 ° C
Electrical characteristics
- Current: 16A
- Voltage: 250V
- Pulse voltage: 4 kV
Mechanical characteristics
- Screw: M3
- Maximum torque: 0.5 Nm / 4.5 Lb-in
Materials
- Insulating body: PA - UL 94 V0
- Screw: Galvanized steel
- Clamp / spring: Nickel-plated copper alloy
- Terminal: Nickel-plated copper alloy
Read moreShow less
- Pitch: 5,08 mm
- Body height: 15.50 mm
- Body depth: 18.85mm
- Size class: medium
- Conductor section: 2.5 mmq / 14 AWG
- Cable entry section: 2.8 × 3.1 mm
- Cable stripping: max 2 mm
- Working temperature: -40 ° C ÷ + 130 ° C
Electrical characteristics
- Current: 16A
- Voltage: 250V
- Pulse voltage: 4 kV
Mechanical characteristics
- Screw: M3
- Maximum torque: 0.5 Nm / 4.5 Lb-in
Materials
- Insulating body: PA - UL 94 V0
- Screw: Galvanized steel
- Clamp / spring: Nickel-plated copper alloy
- Terminal: Nickel-plated copper alloy
RBMRST2VP5.08
Data sheet
- Product type
- Terminal
- Amperage
- 16A
- Material
- PA (Polyamide, Nylon)
- Color
- Green
- Operating temperature
- -40°C to +130°C
- Dimensions
- 18,85x10,16x15,50 (L x W x H)
- Flammability
- 94V-0
- Voltage
- 250V
- Contact material
- Copper Alloy
- Mounting
- On cable
- Wire range
- 2.50 mmq
- Kind
- Female
- Number of poles
- 2
- Number of rows
- 1
- Pitch
- 5.08 mm
- Orientation
- 180°
- Contact plating
- Nickel
- Minimum order quantity
- 5
- Unit Type
- pieces
