RBMRST4VP3.81PHX

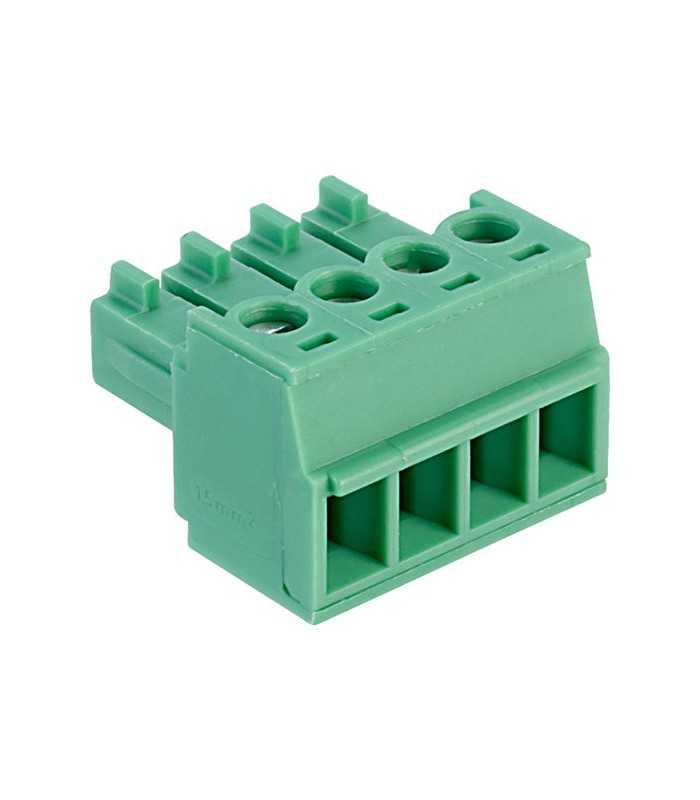

Connector terminal block to carriage 3,81 pitch Female 4 Way Green Phoenix

ErreBi code: 28169
Producer code: 1803594
Producer: Phoenix Contact
Read moreShow less
€4.07 (tax excl.)
€4.97 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €4.48 €4.90
25 €3.97 €24.76
50 €3.72 €62.07
100 €3.22 €174.29
250 €2.73 €557.99
500 €2.48 €1,241.35
1000 €2.23 €2,733.45
Available in stock 237 Items
Condition
New
Reference:
RBMRST4VP3.81PHX
Brand:
Phoenix Contact
Add to wishlist
Description
It is a 2-position plug-in terminal block with screw connection. The terminal block features 3.81mm pitch spacing and is suitable for cables from 28AWG to 16AWG.

Nominal section: 1,5 mmq
Green colour
Rated current: 8 A
Rated voltage (III / 2): 160V
Contact surface: Tin
Contact type: Female
Number of potentials: 4
Number of rows: 1
Number of poles per row: 4
Number of connections: 4
Product series: MC 1,5 /..- ST
Pitch: 3.81mm
Connection: Screw connection with cage
Conductor / board connection direction: 0 °
Stecksystem: MINI COMBICON
Blocking: absent
Read moreShow less
Product Details
RBMRST4VP3.81PHX

Data sheet

Product type
Terminal
Serie
MC
Amperage
8A
Material
PA (Polyamide, Nylon)
Color
Green
Dimensions
16,10x16,03x11,10 (L x W x H)
Flammability
94V-0
Voltage
160V
Mounting
On cable
Wire range
28 - 16 AWG
Kind
Female
Number of poles
4
Number of rows
1
Pitch
3.81mm
Orientation
180°
Contact plating
Tin
Minimum order quantity
1
Unit Type
piece
