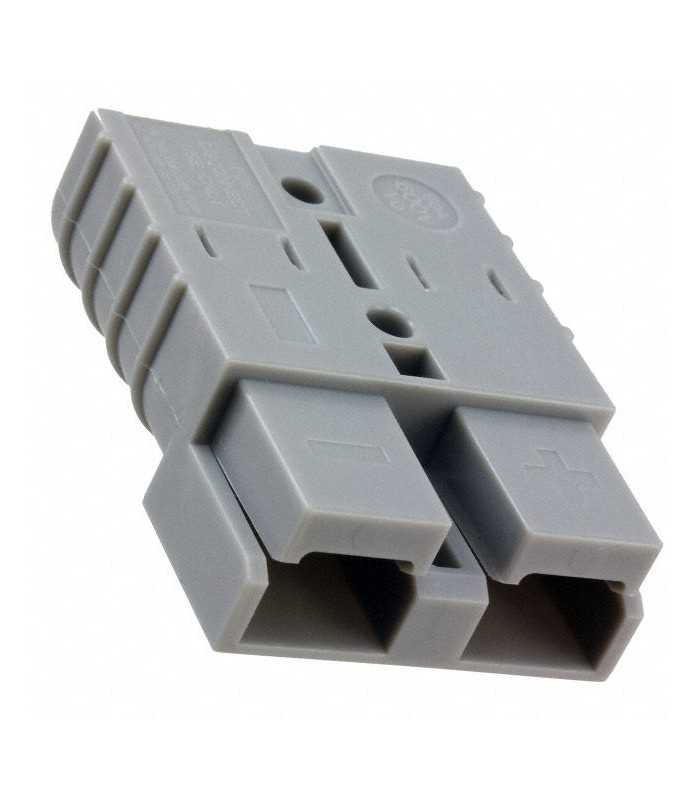

Connector SB 50 Gray

Errebi code: 21625
Producer code: Cross Reference 647845-4
Producer: Cross Reference TE/Connectivity
Please note: the item is a reproduction of the original, please contact us for more information.

Read moreShow less

€1.69 (tax excl.)

€2.06 (tax incl.)

Discounts for quantities

Quantity	Unit price	You Save
10	€1.86	€2.03
25	€1.65	€10.28
50	€1.55	€25.77
100	€1.34	€72.37
250	€1.14	€231.69
500	€1.03	€515.45
1000	€0.93	€1,135.02

Available in stock 306 Items

Condition

New

Reference:

RBCTSR50GR

Brand:

ErreBi Group

Add to wishlist(1)

Description

Product Type Features
Product Type: Housing
Housing Type: Plug/Receptacle

Configuration Features
Number of Positions: 2

Electrical Characteristics
Operating Voltage (VAC): 600
Operating Voltage (VDC): 600

Termination Features
Wire/Cable Size (AWG): 12 – 6
Wire/Cable Size (mm²): 3.085 – 14
Wire/Cable Size (CMA): 6088 – 27629
Wire Type: Stranded
Wire/Cable Type: Discrete Wire

Mechanical Attachment
Panel Mount Retention: Without

Housing Features
UL Flammability Rating: UL 94V-0
Housing Color: Gray
Housing Material: Polycarbonate

Dimensions
Length: 48.23 mm [ 1.9 in ]
Height: 15.88 mm [ .625 in ]
Accepts Wire Insulation Diameter Range: 10 mm [ .394 in ]
Width: 35.05 mm [ 1.38 in ]

Usage Conditions
Sealed Condition: Not Sealed

Operation/Application
Connector System: Wire-to-Wire
Applies To: Wire/Cable
Circuit Application: Power

Industry Standards
UL Rating: Recognized
Agency/Standard: UL
Agency/Standard Number: E28476
