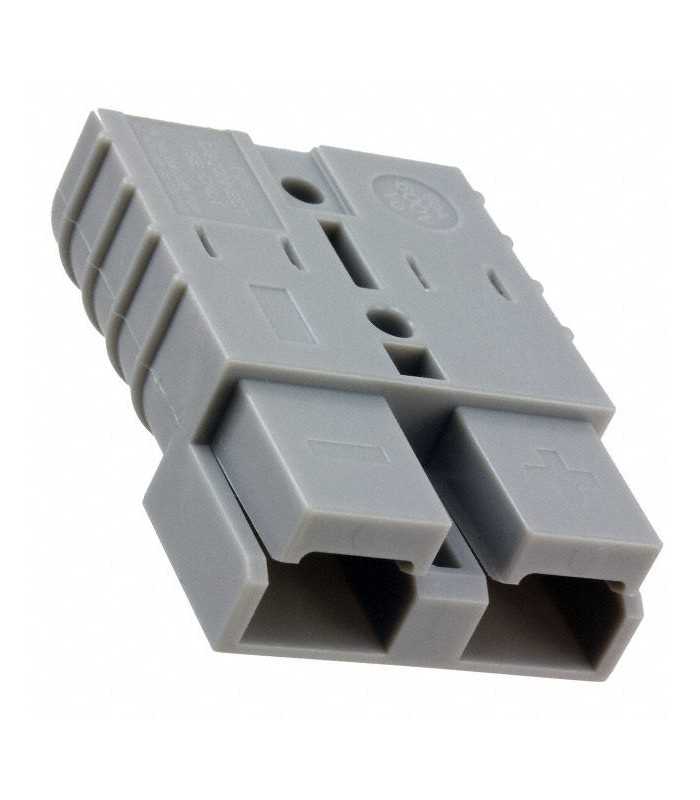

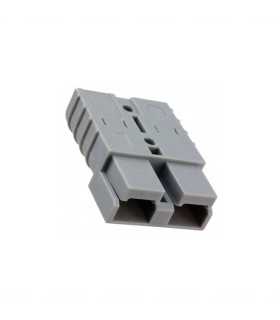

Conector SB 50 Gris

Código ErreBi: 21625
Código productor: Cross Reference 647845-4
Productor: Cross Reference TE/Connectivity
Nota: el artículo es una reproducción del original. Para más información, póngase en contacto con nosotros.

Lee masShow less

1,69 € (tax excl.)

2,06 € (impuestos inc.)

Descuentos por cantidades

Cantidad	Precio unitario	Usted ahorra
10	1,86 €	2,03 €
25	1,65 €	10,28 €
50	1,55 €	25,77 €
100	1,34 €	72,37 €
250	1,14 €	231,69 €
500	1,03 €	515,45 €
1000	0,93 €	1.135,02 €

Available in stock 306 Artículos

Estado

Nuevo

Referencia:

RBCTSR50GR

Marca:

ErreBi Group

A lista de deseos(1)

Descripción

Product Type Features
Product Type: Housing
Housing Type: Plug/Receptacle

Configuration Features
Number of Positions: 2

Electrical Characteristics
Operating Voltage (VAC): 600
Operating Voltage (VDC): 600

Termination Features
Wire/Cable Size (AWG): 12 – 6
Wire/Cable Size (mm²): 3.085 – 14
Wire/Cable Size (CMA): 6088 – 27629
Wire Type: Stranded
Wire/Cable Type: Discrete Wire

Mechanical Attachment
Panel Mount Retention: Without

Housing Features
UL Flammability Rating: UL 94V-0
Housing Color: Gray
Housing Material: Polycarbonate

Dimensions
Length: 48.23 mm [ 1.9 in ]
Height: 15.88 mm [ .625 in ]
Accepts Wire Insulation Diameter Range: 10 mm [ .394 in ]
Width: 35.05 mm [ 1.38 in ]

Usage Conditions
Sealed Condition: Not Sealed

Operation/Application
Connector System: Wire-to-Wire
Applies To: Wire/Cable
Circuit Application: Power

Industry Standards
UL Rating: Recognized
Agency/Standard: UL
Agency/Standard Number: E28476

Lee masShow less

Detalles del producto

Referencia RBCTSR50GR

Ficha técnica
