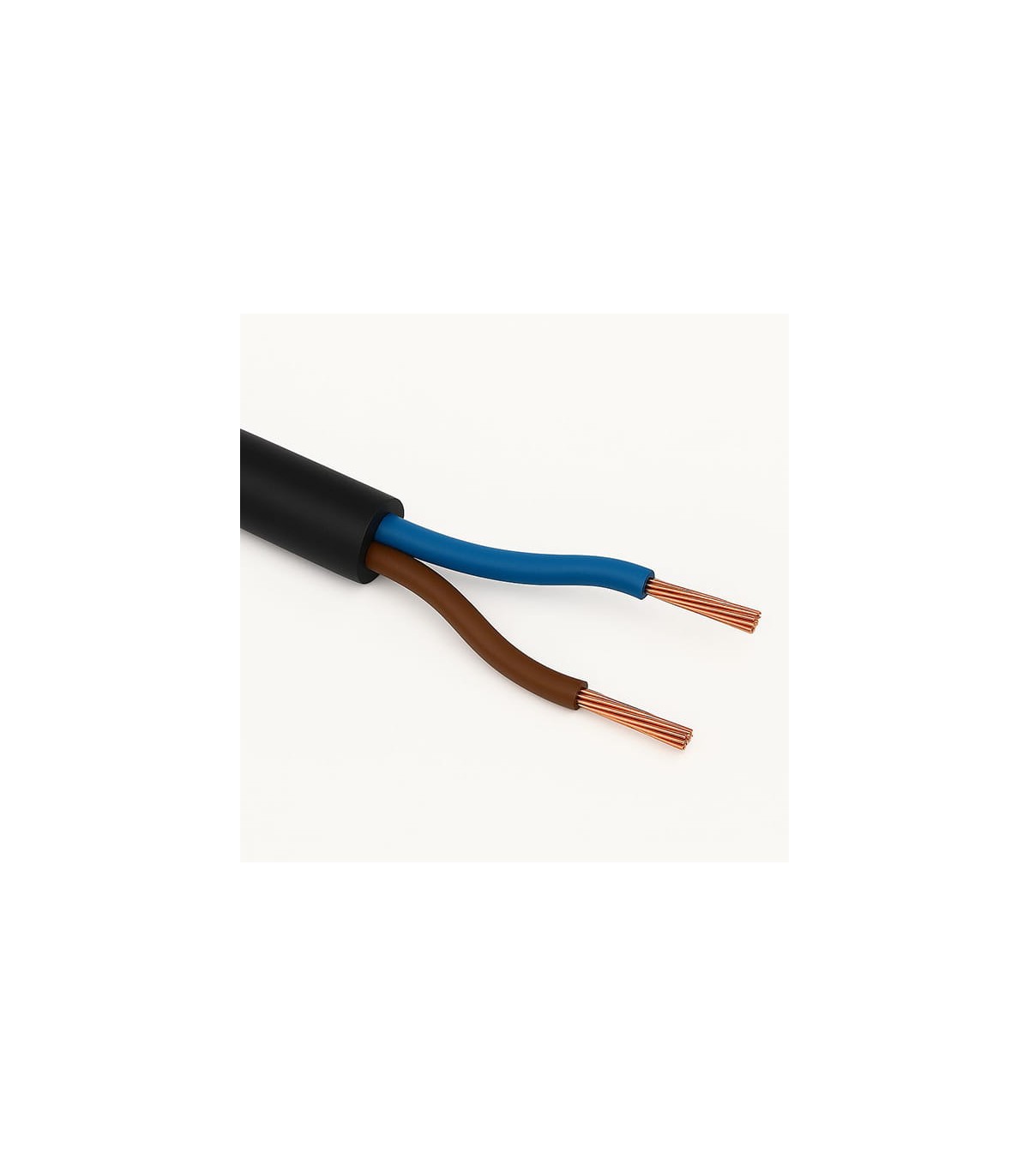

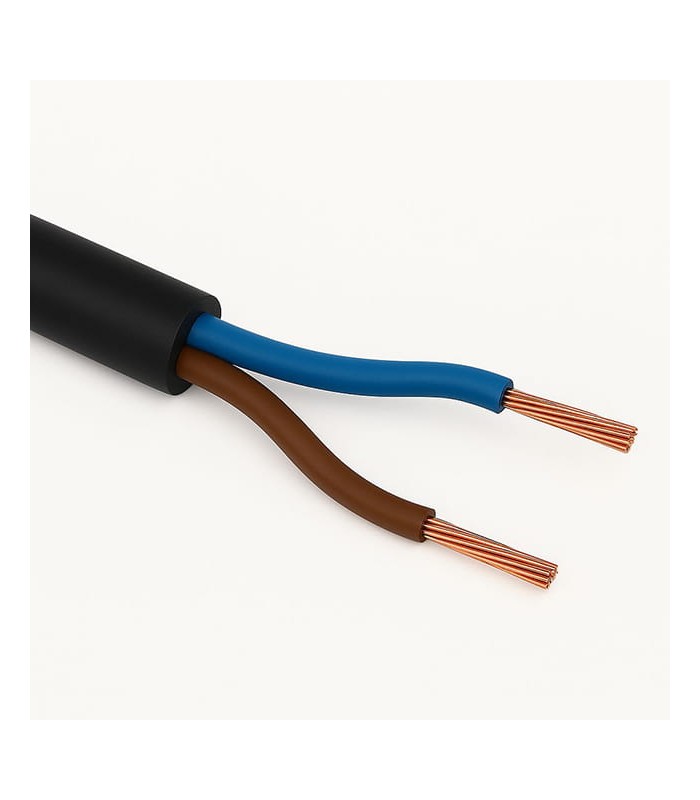

Multicore electric cable FLRY 2x0.75 black

PVC multicore cables, designed for the automotive industry, offer high resistance to mineral oils, hydrocarbons (such as gasoline and petrol), and typical engine compartment fluids. They are ideal for applications requiring reliability, flexibility, and good chemical resistance even under intermittent thermal conditions.

APPLICATIONS

These multicore cables are used in the wiring of motor vehicles—automobiles, commercial vehicles, and industrial vehicles—as signal cables for very low voltage distribution to passenger compartment instruments and the engine compartment. They are also suitable for installation inside doors, ceiling lights, and other areas subject to intermittent heat exposure.
They guarantee excellent chemical resistance to the aggressive agents present in vehicles, maintaining electrical performance even under harsh conditions.

Technical specifications

Nominal voltage: 50V
Outer diameter: 1.80 mm
Cable section: 0.75 mmq
Outer sheath color: black
Inner core color: blue and brown
Maximum operating temperature: + 125°C
Minimum operating temperature: -40°C
Minimum bending radius: 6 x D
Short circuit temperature: 160°C
Test voltage: 3 kV (< 0.50 mmq) or 5 kV (> 0.50 mmq)
Flame resistance: DIN 72551 Part 5, 7.Z8220, Par. 3.7
Suitable for internal installation
Suitable for fixed installation
Resistance to diesel and petrol (ISO 6722 and 7.Z8220 Par. 3.8)
Resistance to chemical agents (DIN 72551 Part 5, ISO 6722, 7.Z8220 Par. 3.8)
