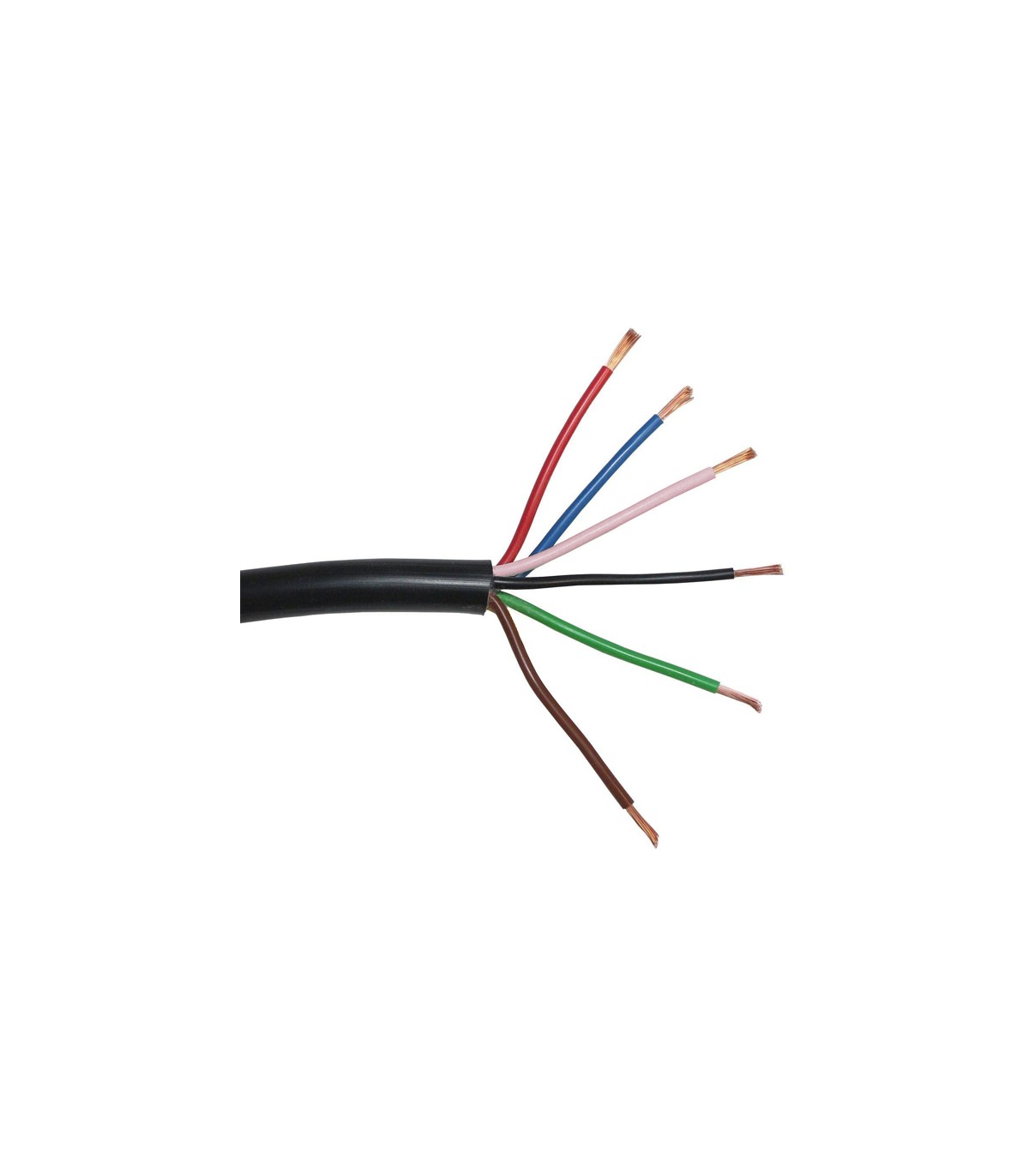

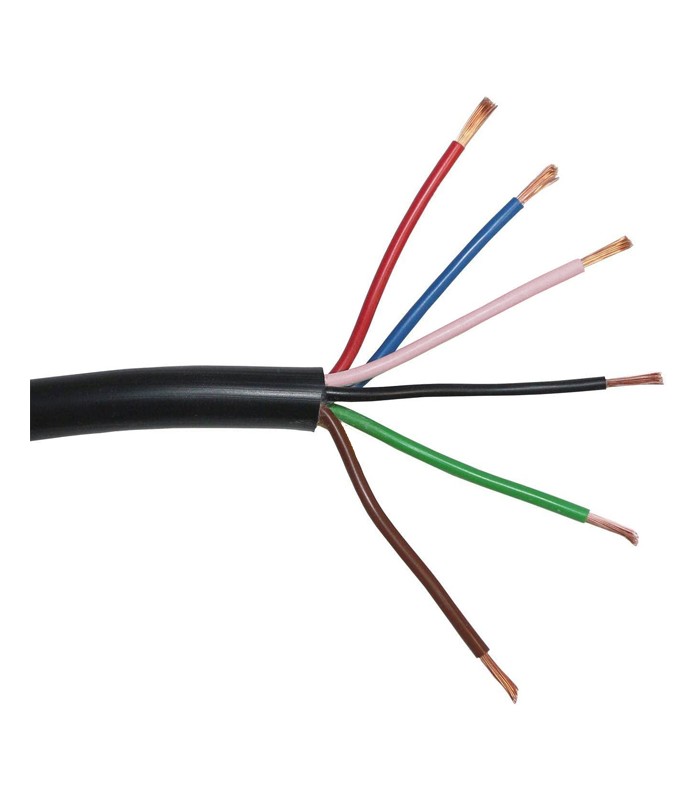

FLRYY 6x1 multicore electrical cable with black outer sheath
ErreBi code: 61987
Price for meter
Read moreShow lessPrice for meter
€5.14
(tax excl.)
€6.27
(tax incl.)
Condition
New
Reference:
RBCVFLRYY6X1NRC1
Brand:
Add to wishlist
Technical characteristics:
Number of conductors: 6
Copper: Red Copper
Cable cross-section: 1.00 mm²
Outer sheath color: Black
Inner core colors: Red, Black, Blue, Pink, Brown, Green
Minimum operating temperature: -40°C
Maximum operating temperature: +105°C
Maximum voltage: 50 V
Flame resistance: 7.Z8220, Par. 3.7
Short circuit temperature: 160°C
Minimum bending radius: 10 X D
Voltage test: 3 kV AC
Outer diameter: 7.60 mm
Multi-core flexible cable with PVC insulation and sheath, suitable for
use on electrical systems, systems, and low-voltage components
of motor vehicles, where exposure to heat sources is not fixed on the
cable surface
Read moreShow less
Number of conductors: 6
Copper: Red Copper
Cable cross-section: 1.00 mm²
Outer sheath color: Black
Inner core colors: Red, Black, Blue, Pink, Brown, Green
Minimum operating temperature: -40°C
Maximum operating temperature: +105°C
Maximum voltage: 50 V
Flame resistance: 7.Z8220, Par. 3.7
Short circuit temperature: 160°C
Minimum bending radius: 10 X D
Voltage test: 3 kV AC
Outer diameter: 7.60 mm
Multi-core flexible cable with PVC insulation and sheath, suitable for
use on electrical systems, systems, and low-voltage components
of motor vehicles, where exposure to heat sources is not fixed on the
cable surface
RBCVFLRYY6X1NRC1
Data sheet
- Product type
- PVC-Kabel
- Color
- Black
- external diameter
- 7.20 mm
- Voltage
- 50V
- Operating temperature min.
- -40°C
- Operating temperature max.
- +105°C
- Insulation material
- PVC
- Conductor (Material)
- Red copper
- Cable section mmq
- 1.00 mmq
- Shielding
- No
- Voltage test
- 3 kV
- Flame resistance
- 7.Z8220, Par 3.7
- Type of employment
- Automotive Sector
- Number of conductors
- 6
- External sheath material
- PVC
- Minimum order quantity
- 1
- Unit Type
- metre
- Anime Color
- Red, Black, Blue, Pink, Brown, Green
