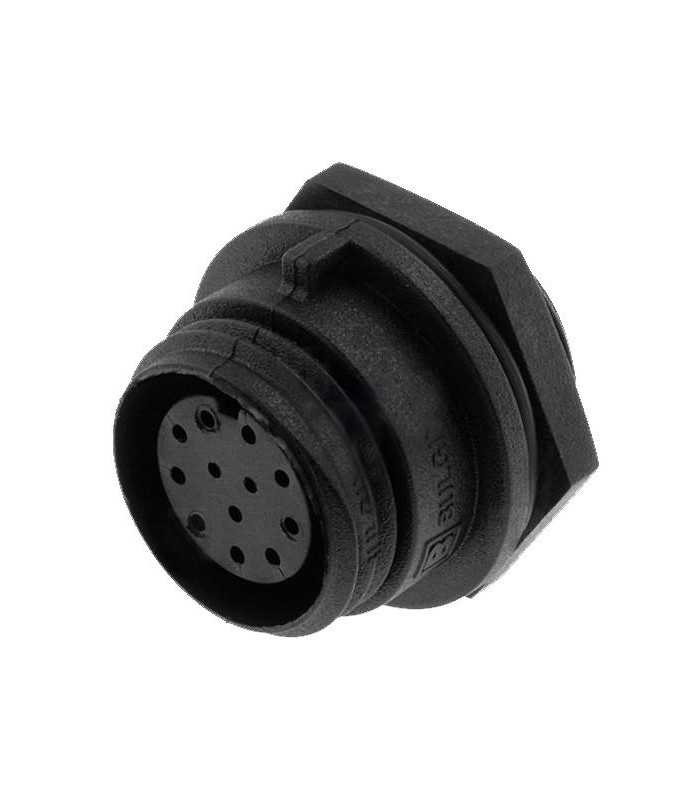

Micro Buccaneer Connector female 12 way for panel

Errebi code: 20110
Producer code: PX041212S
Producer: Bulgin
Read moreShow less
€14.28 (tax excl.)
€17.42

Discounts for quantities

Quantity Unit price You Save
5 €16.32 €5.53
10 €12.72 €47.00
25 €11.34 €152.09
100 €9.95 €746.69
200 €8.85 €1,714.63
Last items in stock 1 Item
Condition
New
Reference:
RBCTMCBCFP12V
Brand:
Add to wishlist
Description
Connector Type: Circular Industrial
Series: Micro Buccaneer
Connector Body Material: Nylon (Polyamide)
Gender: Receptacle
Contact Gender: Socket
Connector Mounting: Cable
No. of Positions: 12
SVHC: No SVHC (16-Jun-2014)
Cable Diameter Max: 7mm
Cable Diameter Min: 3mm
Contact Resistance: 5mohm
Current rating: 1A
Flammability rating: UL94V-0
IP / NEMA rating: IP68
Insulation Resistance: 10Mohm
O Ring Material: Nitrile
Operating Temperature Max: 80°C
Operating Temperature Min: -40°C
Voltage Rating V AC: 50V
Wire Size AWG Max: 24AWG
Wire Size AWG Min: 28AWG
Working Voltage: 50V
Read moreShow less
Product Details
RBCTMCBCFP12V

Data sheet

Product type
Connector
Amperage
1A
Material
PA (Polyamide, Nylon)
Color
Black
IP rating
IP68
Operating temperature
-40°C a +80°C
Flammability
94V-0
Voltage
50V
Wire range
28 - 24 AWG
Kind
Female
Number of poles
12
Minimum order quantity
1
Unit Type
piece
