16,13 €
(tax excl.)
19,68 €
(inkl. MwSt.)
Errebi code: 20109Produzent code: PX0410/12S/6065Produzent: Bulgin

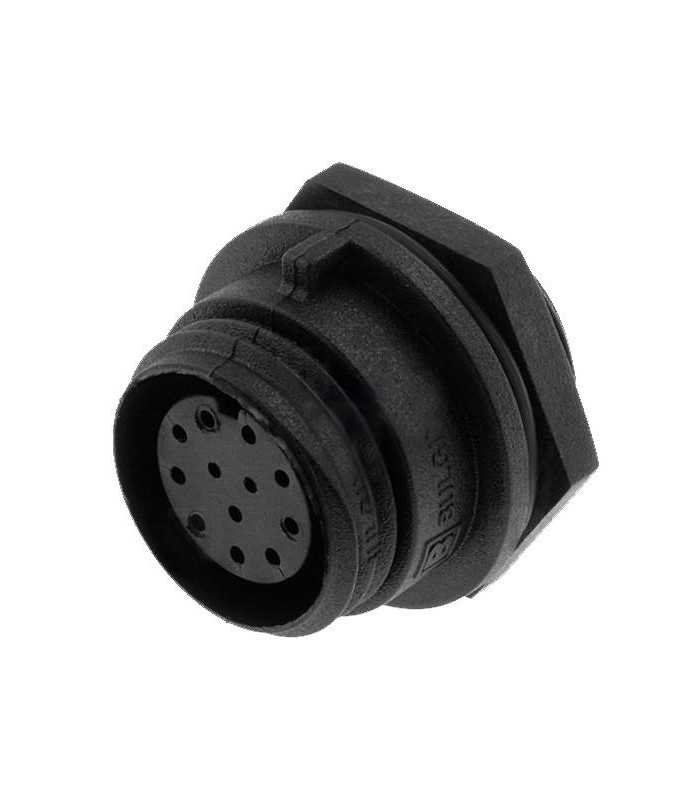

Micro Buccaneer Steckverbinder weiblich 12 wege für platte
Errebi code: 20110
Produzent code: PX041212S
Produzent: Bulgin
Read moreShow lessProduzent code: PX041212S
Produzent: Bulgin
14,28 €
(tax excl.)
17,42 €
(inkl. MwSt.)
Zustand
Neu
Reference:
RBCTMCBCFP12V
Marke:
Zur Wunschliste hinzufügen
Connector Type: Circular Industrial
Series: Micro Buccaneer
Connector Body Material: Nylon (Polyamide)
Gender: Receptacle
Contact Gender: Socket
Connector Mounting: Cable
No. of Positions: 12
SVHC: No SVHC (16-Jun-2014)
Cable Diameter Max: 7mm
Cable Diameter Min: 3mm
Contact Resistance: 5mohm
Current rating: 1A
Flammability rating: UL94V-0
IP / NEMA rating: IP68
Insulation Resistance: 10Mohm
O Ring Material: Nitrile
Operating Temperature Max: 80°C
Operating Temperature Min: -40°C
Voltage Rating V AC: 50V
Wire Size AWG Max: 24AWG
Wire Size AWG Min: 28AWG
Working Voltage: 50V
Read moreShow less
Series: Micro Buccaneer
Connector Body Material: Nylon (Polyamide)
Gender: Receptacle
Contact Gender: Socket
Connector Mounting: Cable
No. of Positions: 12
SVHC: No SVHC (16-Jun-2014)
Cable Diameter Max: 7mm
Cable Diameter Min: 3mm
Contact Resistance: 5mohm
Current rating: 1A
Flammability rating: UL94V-0
IP / NEMA rating: IP68
Insulation Resistance: 10Mohm
O Ring Material: Nitrile
Operating Temperature Max: 80°C
Operating Temperature Min: -40°C
Voltage Rating V AC: 50V
Wire Size AWG Max: 24AWG
Wire Size AWG Min: 28AWG
Working Voltage: 50V
RBCTMCBCFP12V
Technische Daten
- Produktart
- Steckverbinder
- Stromstärke
- 1A
- Material
- PA (Polyamid, Nylon)
- Farbe
- Schwarz
- Schutzklasse (IP)
- IP68
- Betriebstemperatur
- -40°C a +80°C
- Entzündbarkeit
- 94V-0
- Spannung
- 50V
- Kabelbereich
- 28 - 24 AWG
- Art
- Weibilich
- Anzahl der Pole
- 12
- Mindestbestellmenge
- 1
- Maßeinheit
- stück
