€24.22
(tax excl.)
€29.55
Errebi code: 51458Producer code: TCS381X50Y/GProducer: CembreDiameter: 38,1mmWorking temperature (°C): -55° / +125°

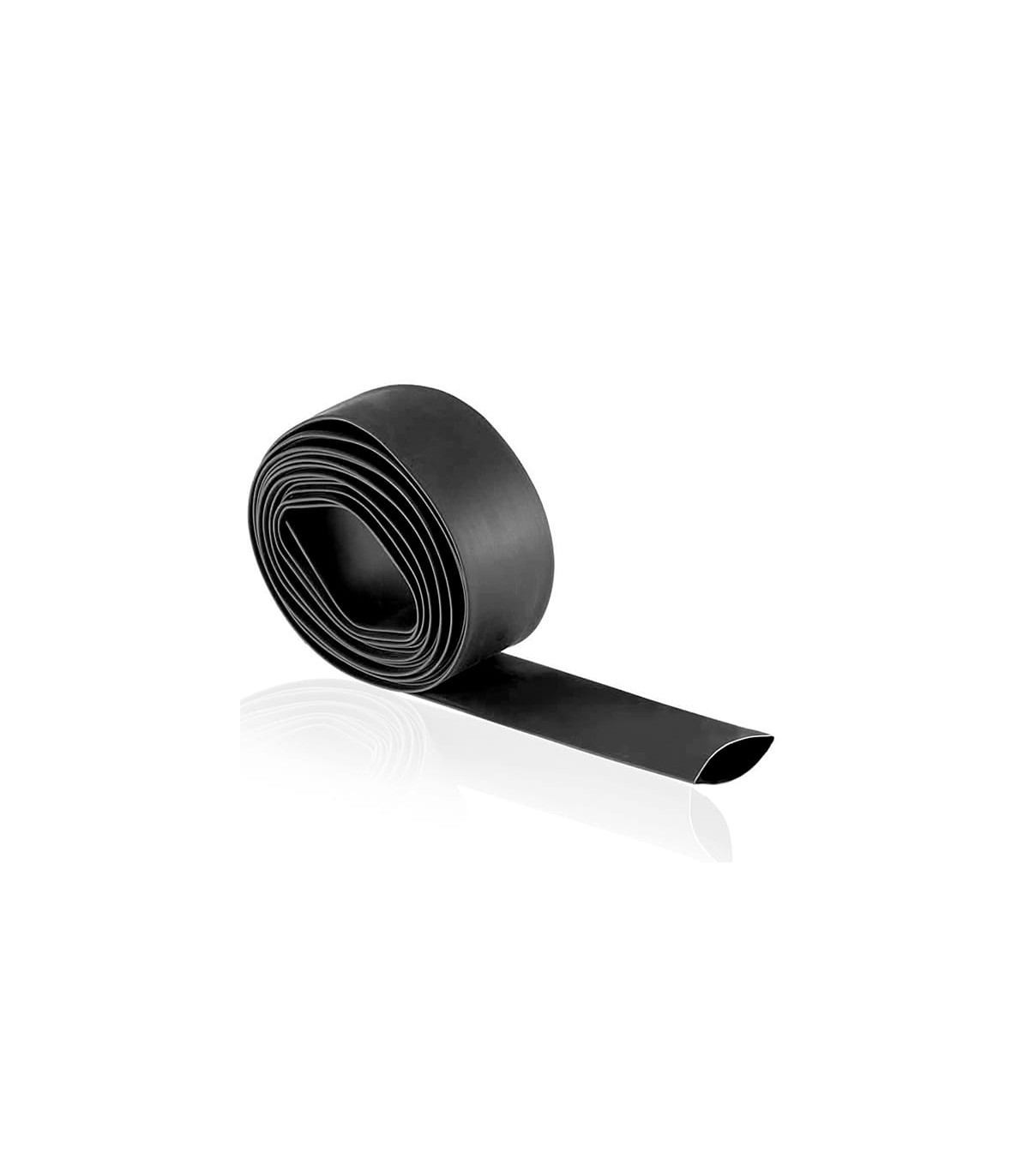

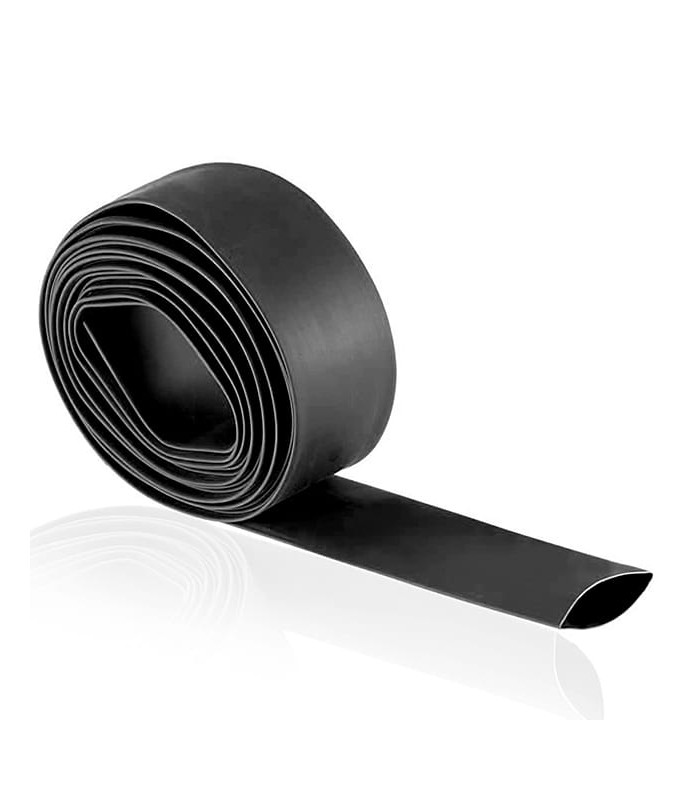

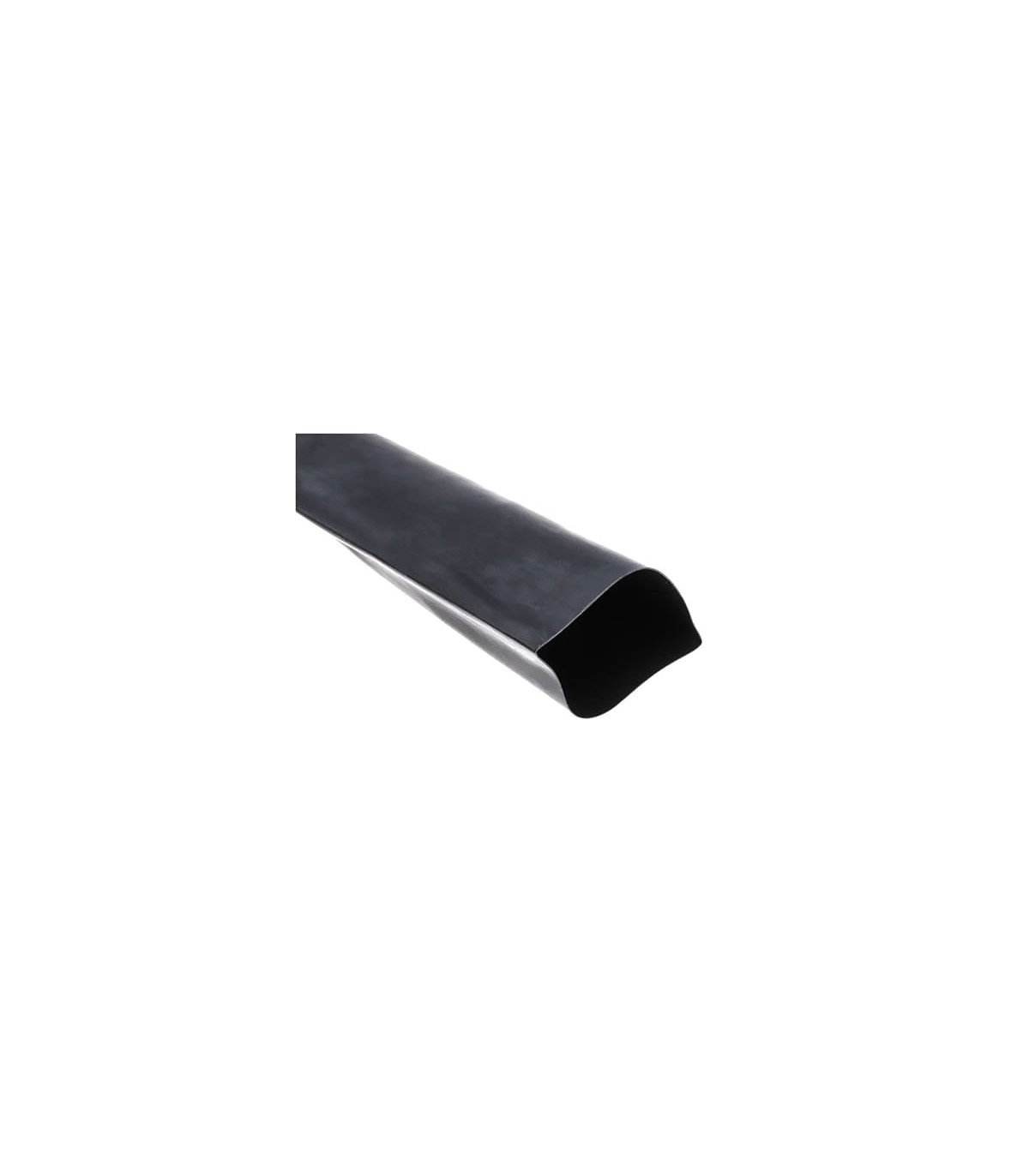

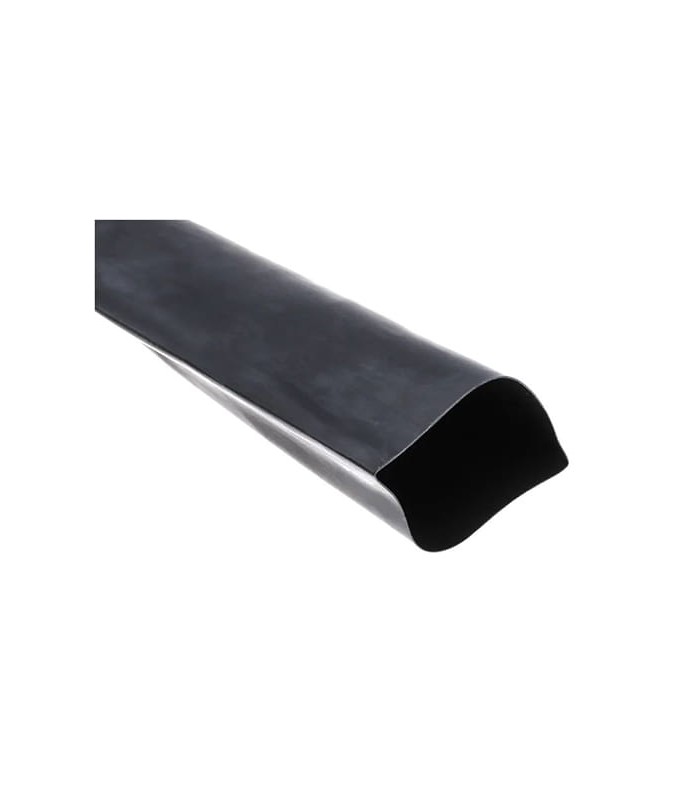

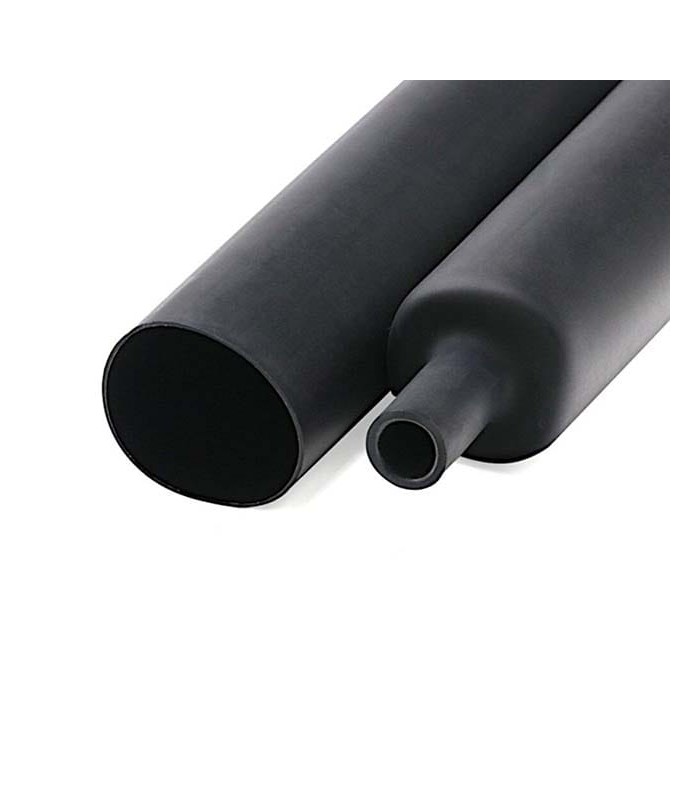

Heat shrink tubing with Glue diameter 12mm 3:1 Black
Errebi code: 11866
Diameter: 12mm
Working temperature (°C): -55° / +110°
Price for meter
Read moreShow lessDiameter: 12mm
Working temperature (°C): -55° / +110°
Price for meter
€6.85
(tax excl.)
€8.36
Condition
New
Reference:
RBGNTRC12
Brand:
Add to wishlist
Sheath polyolefin with adhesive inside for insulation resistant to moisture, flexible, with a high ratio of shrinkage.
The sticker inside alloy with plastic, rubber, neoprene, steel and polyethylene.
Continuous operating temperature from -55 ° C to + 110 ° C.
SELF EXTINGUISHING
Material: polyolefin
Shrink temperature: 90°C
Temperature range: -55°C ÷ 125°C
Longitudinal change: = +5%
Tensile strenght: = 10.4 MPa
Ultimate elongation: = 200%
Aging in circulating-air oven: 158°C ± 1°C, 168 hrs.
Tensile strenght (after aging): = 7.3 MPa
Ultimate elongation (after aging): = 100%
Volume resistivity: = 1e+14 Ohmcm
Dielectric strenght at 1 minute, 2500V
AC: no breakdown
Flammability: VW-1
Concentricity: = 65%
Read moreShow less
The sticker inside alloy with plastic, rubber, neoprene, steel and polyethylene.
Continuous operating temperature from -55 ° C to + 110 ° C.
SELF EXTINGUISHING
Material: polyolefin
Shrink temperature: 90°C
Temperature range: -55°C ÷ 125°C
Longitudinal change: = +5%
Tensile strenght: = 10.4 MPa
Ultimate elongation: = 200%
Aging in circulating-air oven: 158°C ± 1°C, 168 hrs.
Tensile strenght (after aging): = 7.3 MPa
Ultimate elongation (after aging): = 100%
Volume resistivity: = 1e+14 Ohmcm
Dielectric strenght at 1 minute, 2500V
AC: no breakdown
Flammability: VW-1
Concentricity: = 65%
RBGNTRC12
Data sheet
- Product type
- Heat Shrink Tubing
- Material
- Polyolefin
- Color
- Black
- Operating temperature
- -55°C to +110°C
- Internal diameter
- 12 mm
- Shrink Ratio
- 3 to 1
- Minimum shrink temperature
- 95°C
- Glue
- Yes
- Low temperature flexibility
- Up to -55° C
- Dielectric rigidity
- 22 kv/mm
- Thickness
- 1.7 mm
- Expandable
- No
- Minimum order quantity
- 1
- Unit Type
- metre
