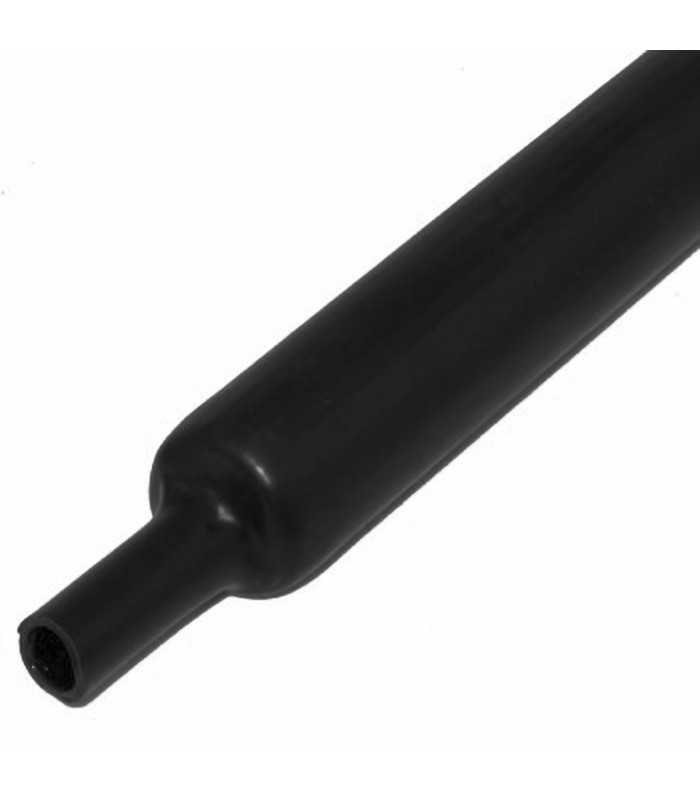

Heat shrink tubing with Glue diameter 7,9mm 3:1 Black
Errebi code: 12626
Diameter: 7,9mm
Working temperature (°C): -55° / +110°
Price for meter
Read moreShow lessDiameter: 7,9mm
Working temperature (°C): -55° / +110°
Price for meter
€3.30
(tax excl.)
€4.03
(tax incl.)
Condition
New
Reference:
RBGNTRC7.9
Brand:
Add to wishlist
Sheath polyolefin with adhesive inside for insulation resistant to moisture,
flexible, with a high ratio of shrinkage.
The sticker inside alloy with plastic, rubber, neoprene, steel and polyethylene.
Continuous operating temperature from -55 ° C to + 110 ° C.
Shrink Temperature: 95 ° C.
Packaging: Coils, or to measure
Standard colors: black and transparent.
SELF EXTINGUISHING
Tensile strength: 15 MPa
Shrinkage: 4: 1
Elongation at break: 400%
Longitudinal: 18% max
Specific weight: 1,25g / cm³
Elongation at break after heat aging (168 hours at 150 ° C): 320%
Tensile strength after thermal aging (168 hours at 150 ° C): 15 MPa
Elongation after Heat Shock (4 hours at 200 ° C) to IEC 811-1-2 360%
Tensile strength after thermal shock (4 hours at 200 ° C): 15 MPa
Low Temperature Flexibility: It does not break at -55 ° C
Flammability: Self-extinguishing UL 224
Dielectric Strength: 2 22 kV / mm
Volume Resistivity: 10 Ohm x cm
Weathering: Non-corrosive
Water absorption: 0.
Read moreShow less
flexible, with a high ratio of shrinkage.
The sticker inside alloy with plastic, rubber, neoprene, steel and polyethylene.
Continuous operating temperature from -55 ° C to + 110 ° C.
Shrink Temperature: 95 ° C.
Packaging: Coils, or to measure
Standard colors: black and transparent.
SELF EXTINGUISHING
Tensile strength: 15 MPa
Shrinkage: 4: 1
Elongation at break: 400%
Longitudinal: 18% max
Specific weight: 1,25g / cm³
Elongation at break after heat aging (168 hours at 150 ° C): 320%
Tensile strength after thermal aging (168 hours at 150 ° C): 15 MPa
Elongation after Heat Shock (4 hours at 200 ° C) to IEC 811-1-2 360%
Tensile strength after thermal shock (4 hours at 200 ° C): 15 MPa
Low Temperature Flexibility: It does not break at -55 ° C
Flammability: Self-extinguishing UL 224
Dielectric Strength: 2 22 kV / mm
Volume Resistivity: 10 Ohm x cm
Weathering: Non-corrosive
Water absorption: 0.
RBGNTRC7.9
Data sheet
- Product type
- Heat Shrink Tubing
- Material
- Polyolefin
- Color
- Black
- Operating temperature
- -55°C to +110°C
- Internal diameter
- 7.9 mm
- Shrink Ratio
- 3 to 1
- Minimum shrink temperature
- 95°C
- Glue
- No
- Low temperature flexibility
- Up to -55° C
- Dielectric rigidity
- 22 kv/mm
- Thickness
- 1.2 mm
- Expandable
- No
- Minimum order quantity
- 1
- Unit Type
- metre
