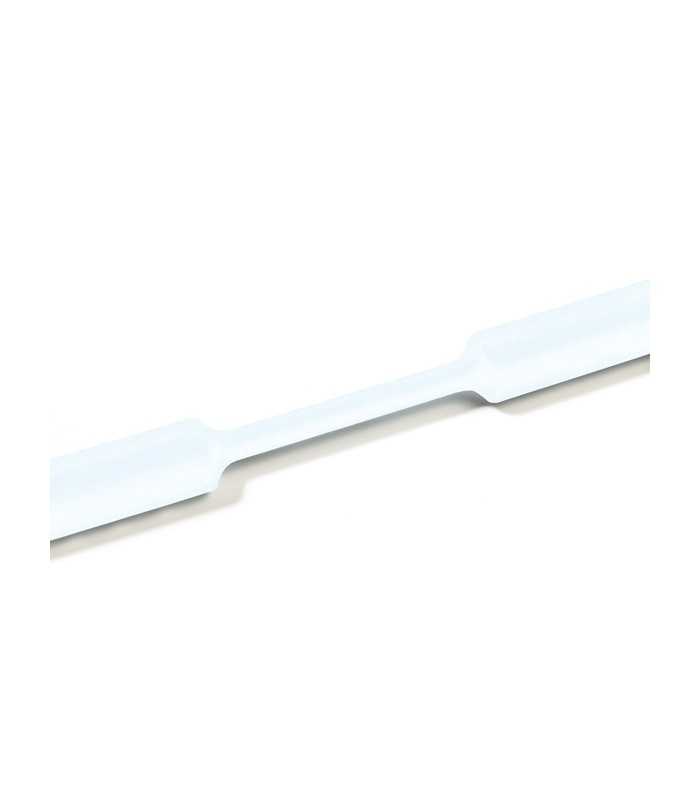

Heat Shrink Tubing without Glue diameter 6,4mm 2:1 White

Errebi code: 15049
Diameter: 6,4mm
Working temperature (°C): -55° / +135°
Price for meter
Read moreShow less
€0.53 (tax excl.)
€0.65

Discounts for quantities

Quantity Unit price You Save
5 €0.65 €0.00
10 €0.58 €0.64
25 €0.52 €3.22
50 €0.48 €8.08
100 €0.42 €22.70
250 €0.36 €72.66
500 €0.32 €161.65
1000 €0.29 €355.95
Available in stock 832 Items
The minimum purchase order quantity for the product is 5.
Condition
New
Reference:
RBGNTR6.4BN
Add to wishlist
Description
Polyolefin Sheath 2:1 shrink flexible, with high ratio of narrowing suited to various applications given its particular adaptability to all forms. Widely used for insulation and identification in electrical wiring, for cable assembly or as simple mechanical protection. It is also suitable for all those applications where a relatively low shrinkage temperature is required.

Features:
- Polyolefin
- Shrinkage factor: 2:1
- Self extinguishing
- Suitable for any use
- Highly flexible
- Tensile strength: = 17 MPa
- Elongation: = 500%
- Secant modulus: 175 MPa
- Specific weight: 1,30g / cm³
- Elongation after Heat Aging: 500%
- Tensile strength after thermal aging (168 hours at 175 ° C): 13 MPa
- Elongation after Heat Shock (4 hours at 250 ° C): No cracking
- Tensile strength after thermal shock (4 hours at 250 ° C): 13 MPa
- Low Temperature Flexibility: It does not break at -55 ° C
- Flammability: Self-extinguishing UL 224
- Dielectric Strength: 24 kV/mm
- Volume Resistivity: >= 10^14 Ohm/cm
- Weathering: Non-corrosive
- Water absorption: 0.15%

Certifications:
- Meets MIL - DTL - 123053/5
- Compliant with: RoHS

Application:
- Operating temperature: from -55°C to + 135°C
- Minimum shrinkage temperature: + 90°C
- Longitudinal variation: 0 ± 10% maximum
Read moreShow less
Product Details
RBGNTR6.4BN

Data sheet

Product type
Heat Shrink Tubing
Material
Polyolefin
Color
White
Operating temperature
-55°C to +125°C
Internal diameter
6.4 mm
Shrink Ratio
2 to 1
Minimum shrink temperature
110°C
Glue
No
Low temperature flexibility
Up to -55° C
Dielectric rigidity
26 kv/mm
Thickness
0.6 mm
Expandable
No
Minimum order quantity
5
Unit Type
metres
