Crimping tool for non-insulated terminals (Weather Pack, Metri-Pack, Delphi, AMP/Tyco and Deutsch)

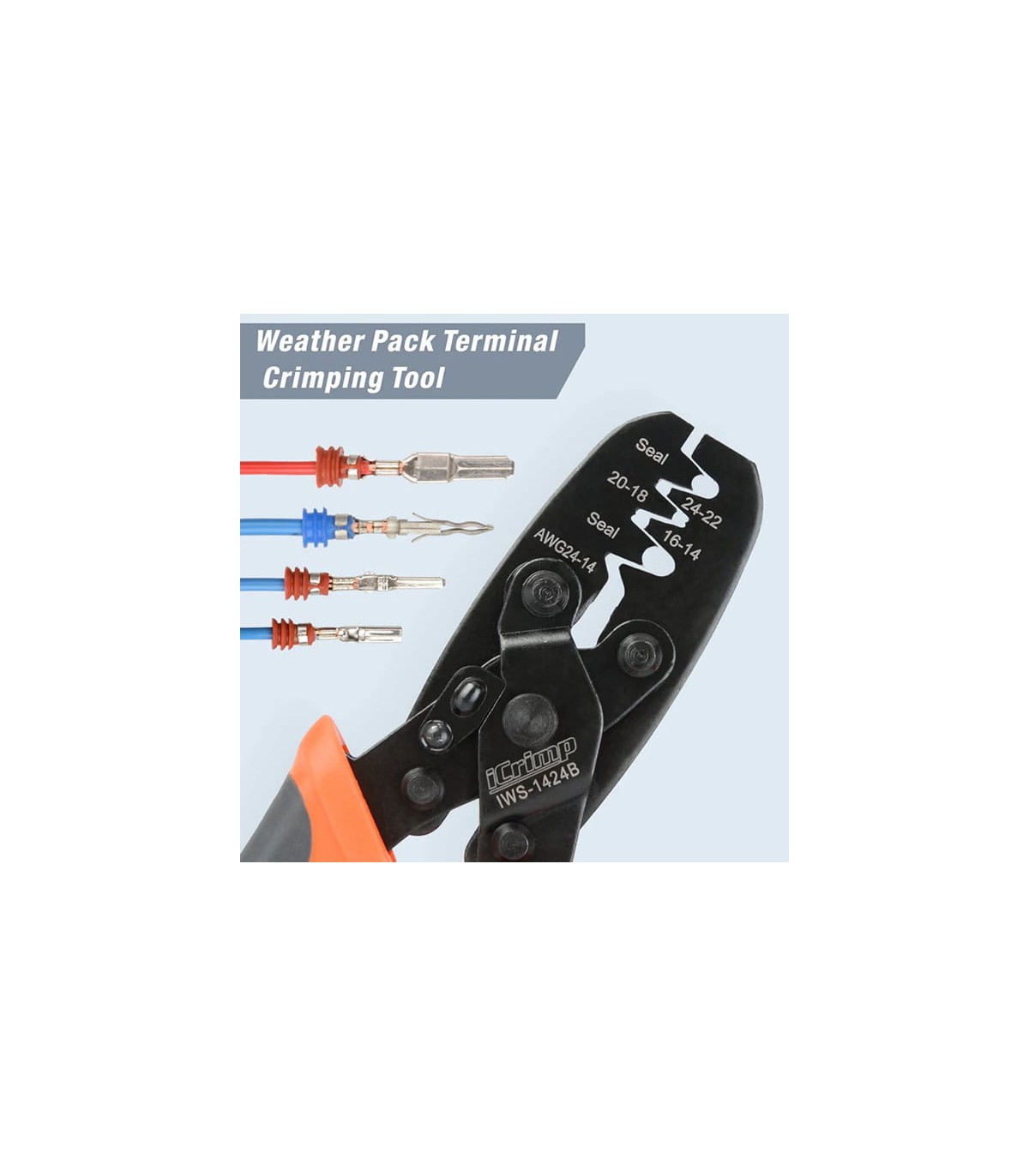

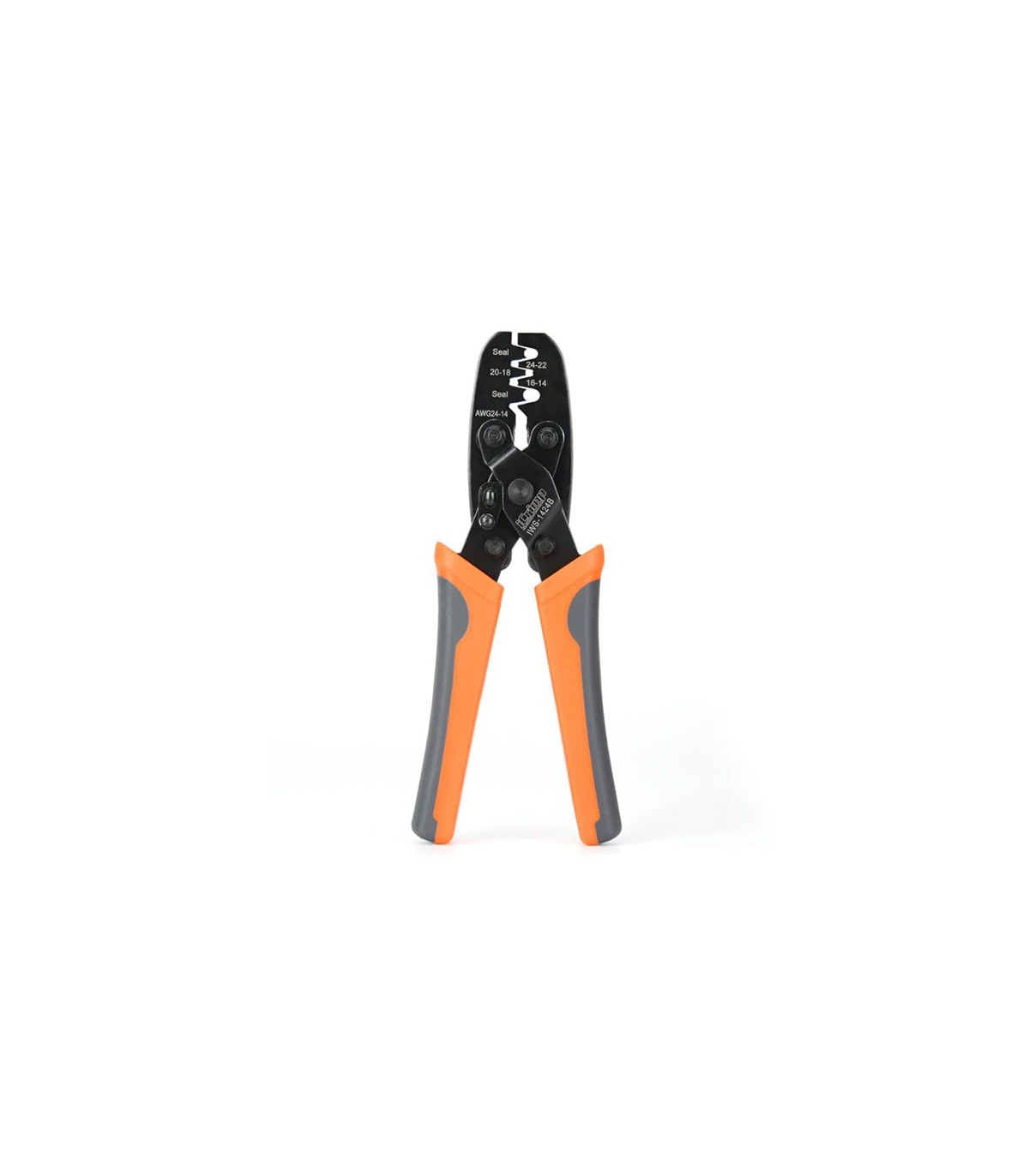

The RBIWS-1424B is a ratchet crimping tool designed for precise crimping of non-insulated terminals such as Weather Pack and Metri-Pack, used in automotive, motorcycle, marine, and industrial wiring systems.

Operation

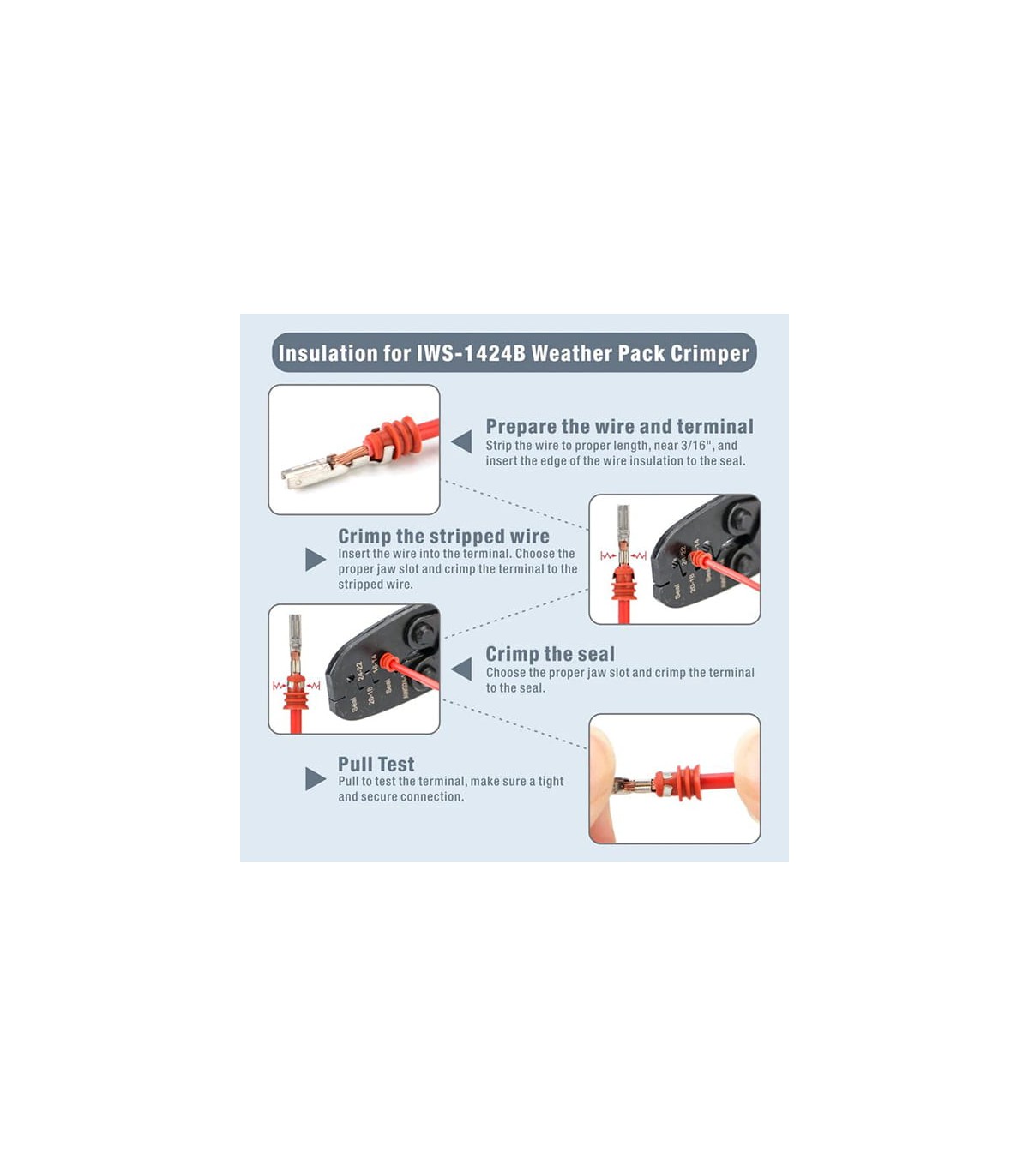

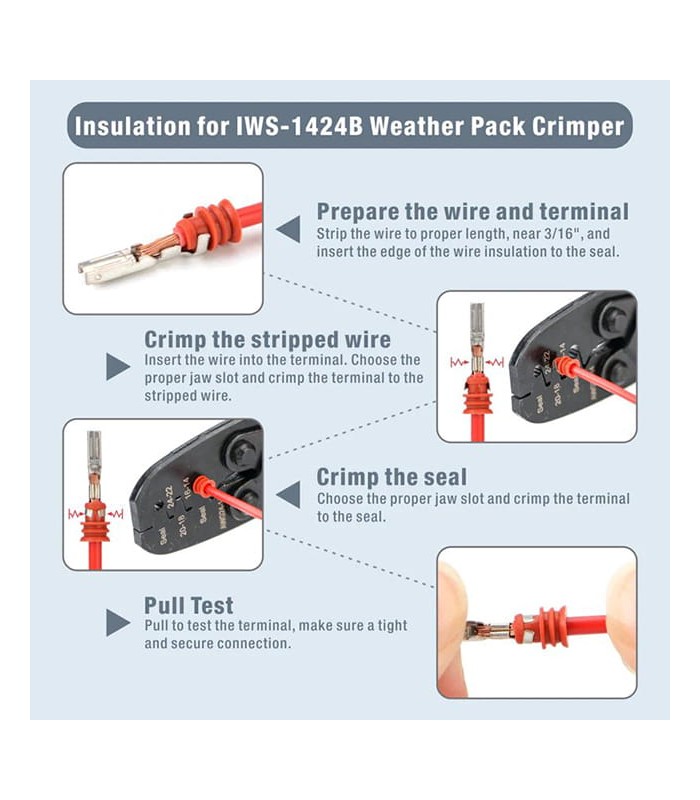

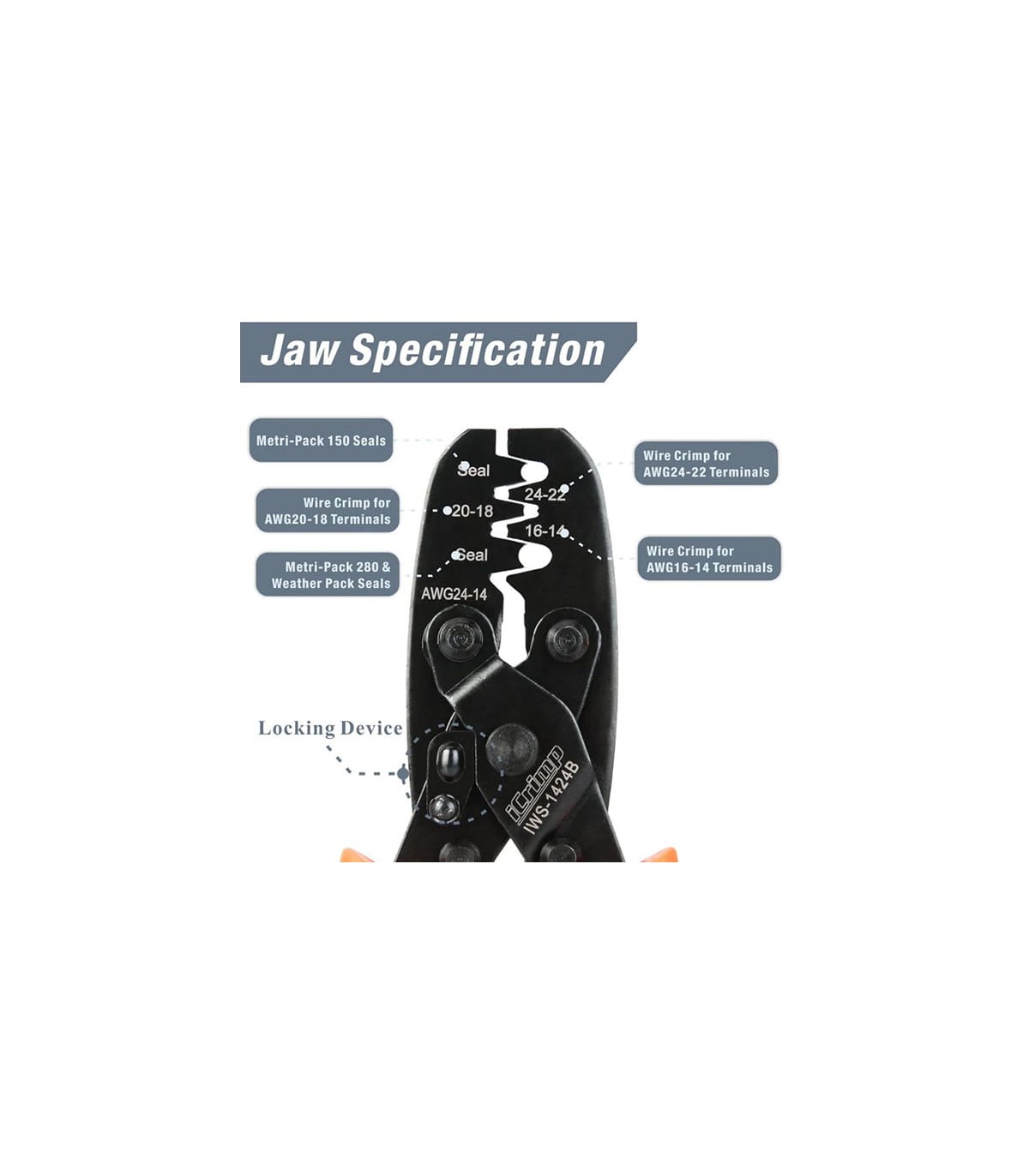

The Weather Pack terminal is inserted into the corresponding crimp cavity, along with the stripped wire and seal.

During crimping, the tool performs two simultaneous operations:

1) Firmly crimps the conductor into the terminal body;

2) Compresses the insulation or seal, ensuring mechanical and electrical tightness.

3) The ratchet mechanism prevents release until the correct pressure is reached, avoiding incomplete crimps or defects.

Applications

1) Automotive wiring for cars, trucks, motorcycles, RVs, and boats.

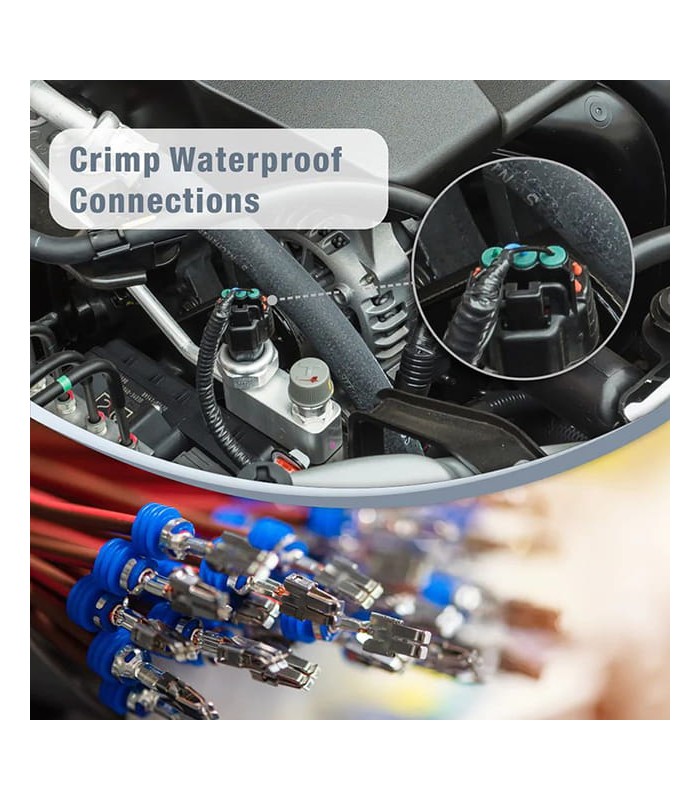

2) Lighting systems, sensors, and sealed connectors.

3) Electrical panels and systems exposed to vibration or humidity.

4) Repairs and custom wiring of Weather Pack and Metri-Pack systems.

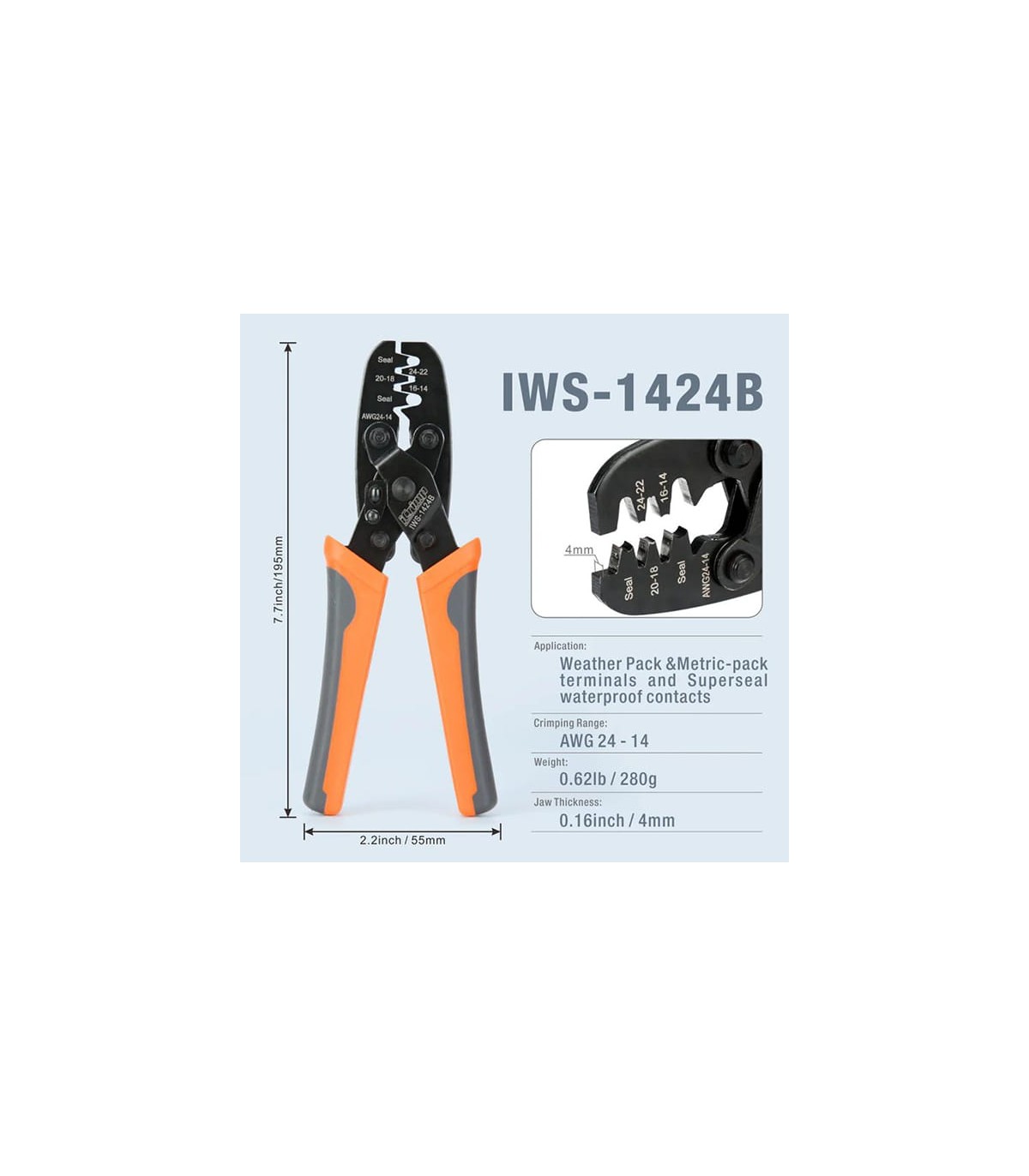

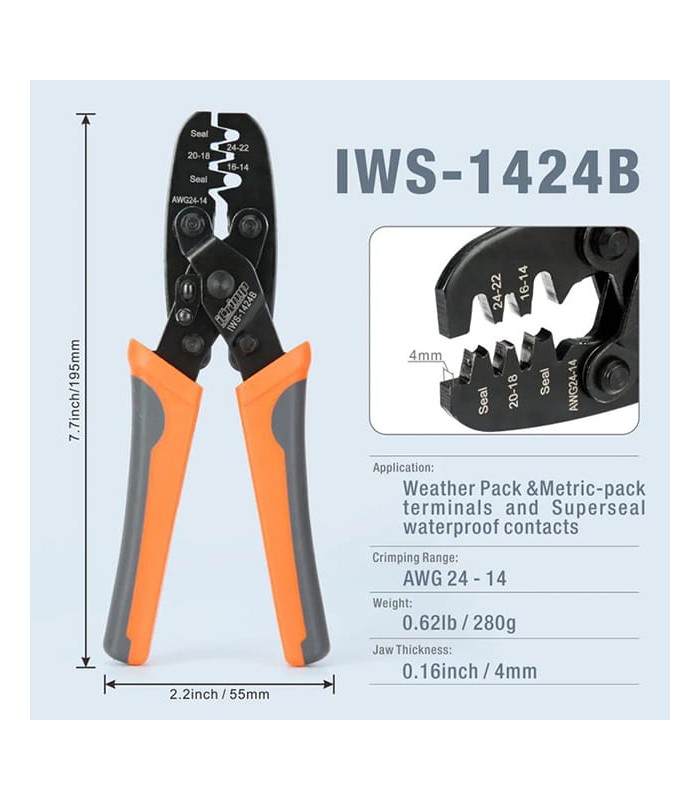

Technical specifications

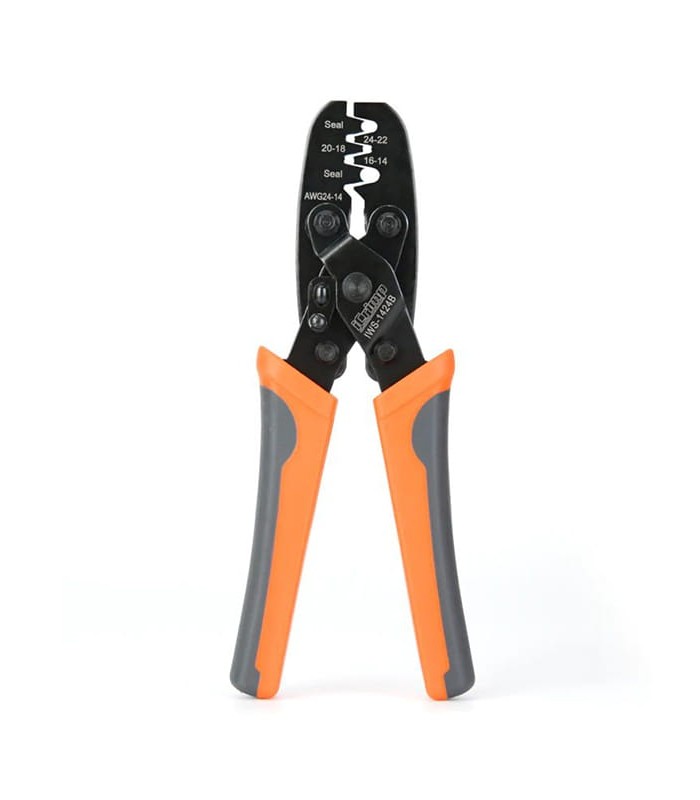

Model: RBIWS-1424B

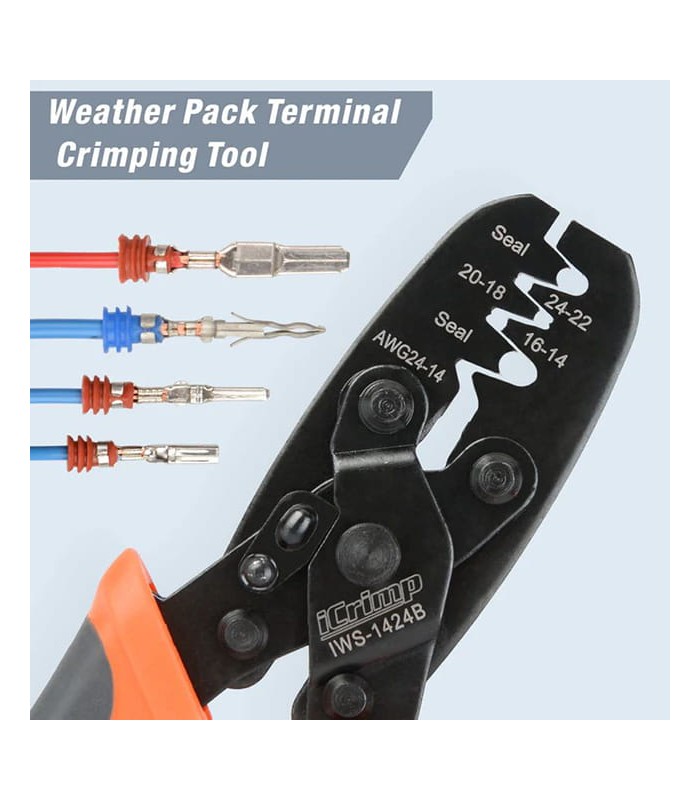

Terminal type: Weather Pack, Metri-Pack, Delphi, AMP, Tyco, Deutsch

Wire section (mm²): 0.20 - 2.00 mm²

Wire section (AWG): 24 - 14 AWG

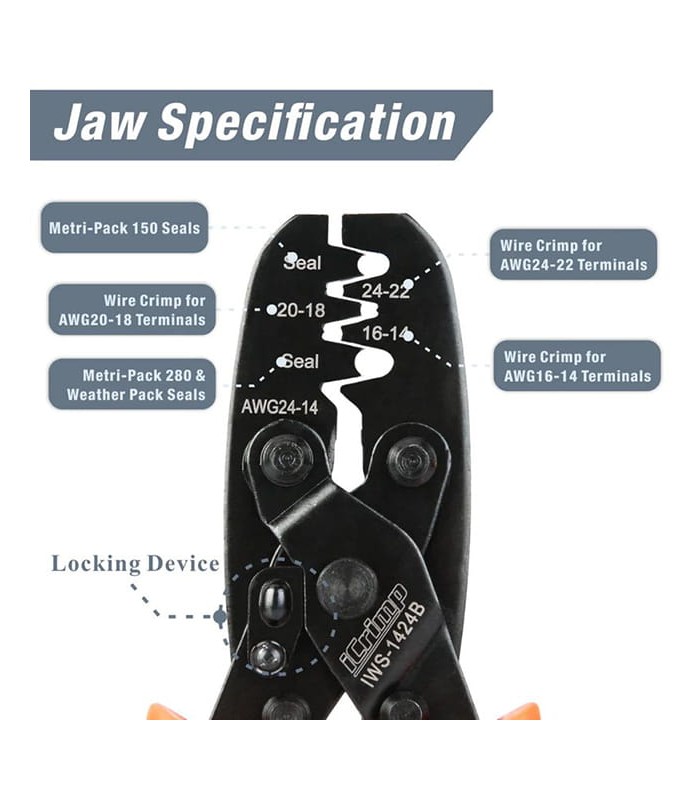

Number of cavities: 3 (for various wire sizes)

Material: steel

Handles: ergonomic non-slip rubber

Mechanism: ratchet with safety release

Length: 195 mm

Weight: 0.55 kg

Handle color: orange and black
