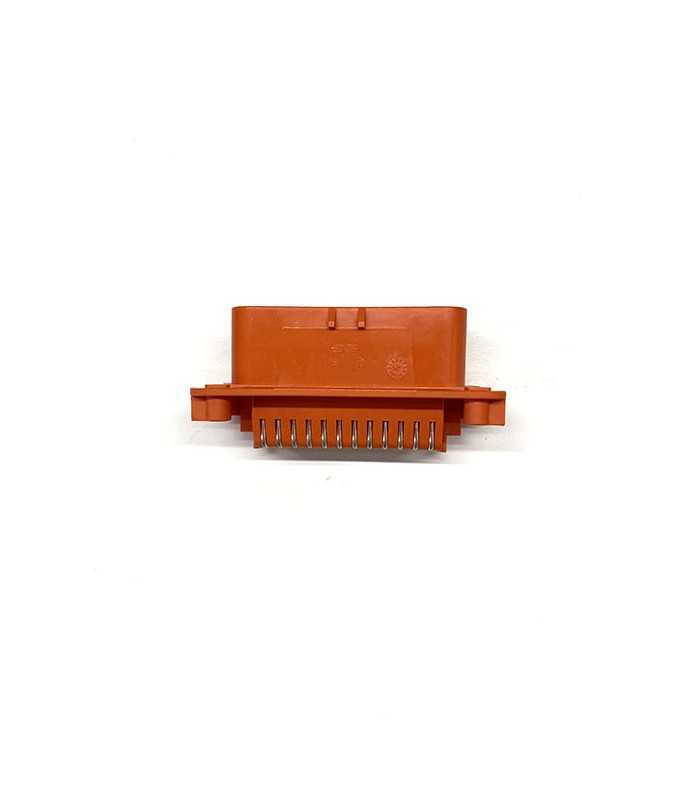

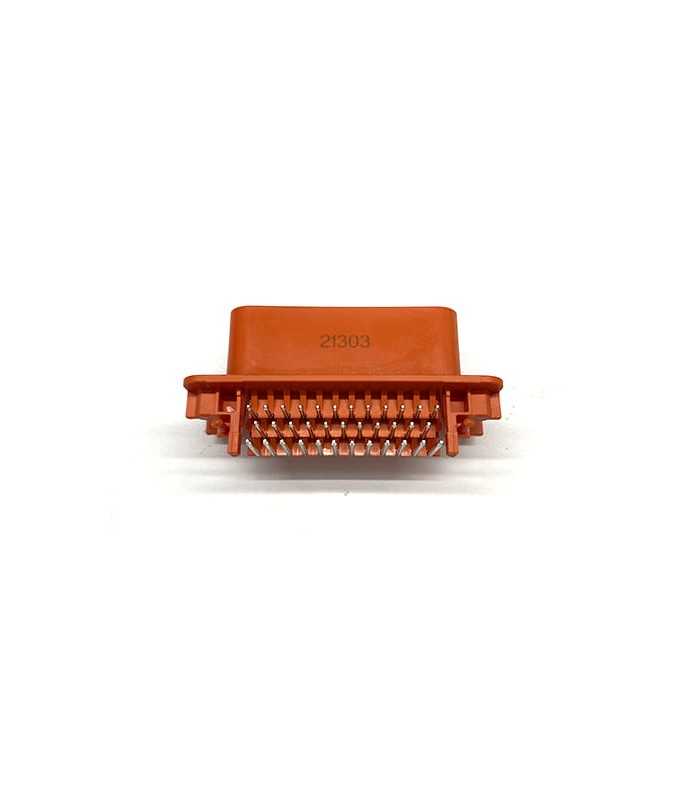

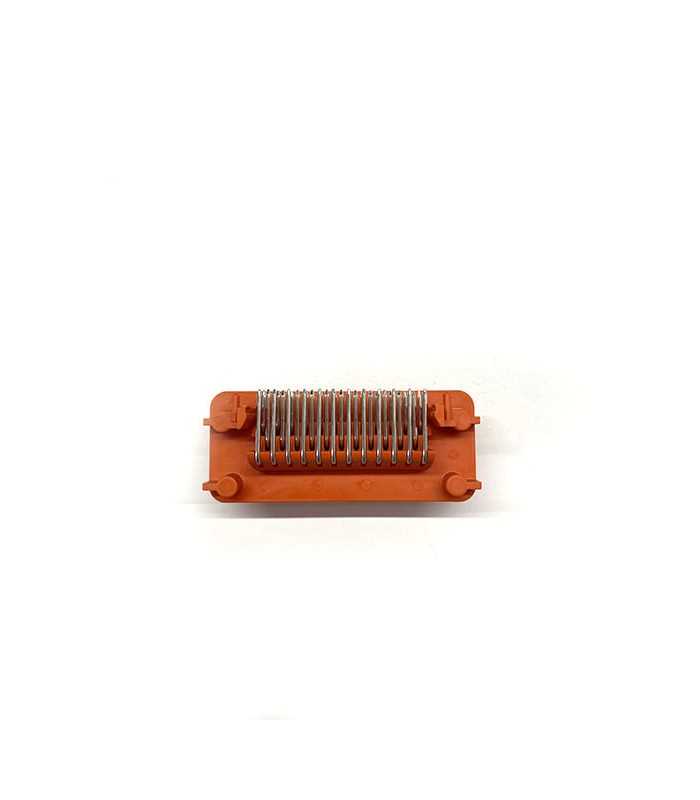

Connector AmpSeal female 35 way orange PCB 90° without gasket
Errebi code: 58631
Producer code: 776180-6
Producer: TE/Connectivity
Read moreShow lessProducer code: 776180-6
Producer: TE/Connectivity
€11.63
(tax excl.)
€14.19
(tax incl.)
Condition
New
Reference:
RBCTASF35VCS90ARSG
Brand:
Add to wishlist
Product type features:
Number of signal positions: 35
Number of positions: 35
PCB mounting orientation: Horizontal
Number of lines: 3
Number of sections: 1
Electrical characteristics
Operating voltage (VAC): 250
Nominal voltage architecture (V): 12, 24, 42, 48, 240
Rated voltage (max) (VAC): 250
Characteristics of the body
Main product color: orange
Contact functions
Contact type: Pin
Contact Size Code: 1.3
Coupling Pin Diameter: 1.3 mm [.051 in]
Centerline (pitch): 4 mm [.157 in]
Dimensions
Profile height from PCB: 23.6 mm [.929 in]
PCB thickness (recommended): 1.57 mm [0.062 inch]
Connector width: 37.9 mm [1,498 inches]
Connector length: 76.9mm [3.028in]
Terms of use
Operating temperature (max) (° C): 65, 70, 75, 80, 85, 90, 100, 105
Operating temperature (max) (° F): 149, 158, 167, 176, 185, 194, 212, 221
Operating temperature range: -40 - 105 ° C [-40 - 221 ° F]
UL flammability classification: UL 94V-0
Read moreShow less
Number of signal positions: 35
Number of positions: 35
PCB mounting orientation: Horizontal
Number of lines: 3
Number of sections: 1
Electrical characteristics
Operating voltage (VAC): 250
Nominal voltage architecture (V): 12, 24, 42, 48, 240
Rated voltage (max) (VAC): 250
Characteristics of the body
Main product color: orange
Contact functions
Contact type: Pin
Contact Size Code: 1.3
Coupling Pin Diameter: 1.3 mm [.051 in]
Centerline (pitch): 4 mm [.157 in]
Dimensions
Profile height from PCB: 23.6 mm [.929 in]
PCB thickness (recommended): 1.57 mm [0.062 inch]
Connector width: 37.9 mm [1,498 inches]
Connector length: 76.9mm [3.028in]
Terms of use
Operating temperature (max) (° C): 65, 70, 75, 80, 85, 90, 100, 105
Operating temperature (max) (° F): 149, 158, 167, 176, 185, 194, 212, 221
Operating temperature range: -40 - 105 ° C [-40 - 221 ° F]
UL flammability classification: UL 94V-0
RBCTASF35VCS90ARSG
Data sheet
- Product type
- Connector body
- Serie
- AmpSeal
- Amperage
- 11A
- Material
- Plastic
- Color
- Orange
- Operating temperature
- -40°C to +105°C
- Dimensions
- 76.90x37.90x23.60 (L x W x H)
- Flammability
- 94V-0
- Voltage
- 250V
- Mounting
- Printed circuit
- Kind
- Female
- Number of poles
- 35
- Number of rows
- 3
- Pitch
- 4.00 mm
- Orientation
- 90°
- Minimum order quantity
- 1
- Unit Type
- piece
