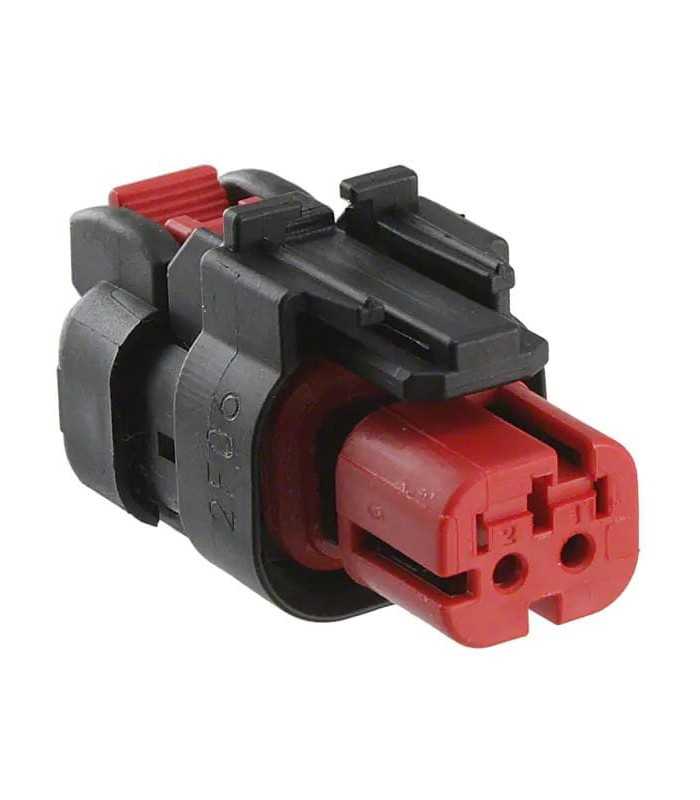

Connector Ampseal series 16 male 2 way
Errebi code: 58520
Producer code: 776427-1
Producer: TE/Connectivity
Read moreShow lessProducer code: 776427-1
Producer: TE/Connectivity
€7.03
(tax excl.)
€8.58
(tax incl.)
Condition
New
Reference:
RBCTAS16PF2V
Brand:
Add to wishlist
Characteristics of the product type
Connector and Housing Type: Female Terminal Housing
Connector system: cable-to-board, cable-to-device
Sealable: Yes
Hybrid connector: No
Main lock function: integrated into the housing
Configuration features
Number of positions: 2
electrical characteristics
Operating voltage (VAC): 250
Nominal voltage architecture (V): 12, 24, 42, 48, 80, 90, 125, 240
Characteristics of the body
Body Material: Other
Cable exit angle: 180 °
Main product color: natural
Contact characteristics
Diameter of the coupling pin: 1.3 mm [.051 in]
Mechanical attack
Coupling Alignment Type: Polarized
Tearproof: No
Terminal position guarantee: Yes
Mounting function: without
Housing features
Centerline (pitch): 4 mm [.157 in]
Dimensions
Row-to-row spacing: 4 mm [.157 in]
Product Height: 34.6mm [1.362 in]
Product length: 27.4 mm [1,079 in]
Product width: 33.6 mm [1,323 in]
Terms of use
Operating temperature (max): 125 ° C [257 ° F]
Operating temperature range (° C): -40 - 125, -40 - 125
Operating temperature range (° F): -40 - 257, -40 - 257
Industry standard
UL flammability classification: UL 94V-0
Degree of protection: IP67, IP69K
Read moreShow less
Connector and Housing Type: Female Terminal Housing
Connector system: cable-to-board, cable-to-device
Sealable: Yes
Hybrid connector: No
Main lock function: integrated into the housing
Configuration features
Number of positions: 2
electrical characteristics
Operating voltage (VAC): 250
Nominal voltage architecture (V): 12, 24, 42, 48, 80, 90, 125, 240
Characteristics of the body
Body Material: Other
Cable exit angle: 180 °
Main product color: natural
Contact characteristics
Diameter of the coupling pin: 1.3 mm [.051 in]
Mechanical attack
Coupling Alignment Type: Polarized
Tearproof: No
Terminal position guarantee: Yes
Mounting function: without
Housing features
Centerline (pitch): 4 mm [.157 in]
Dimensions
Row-to-row spacing: 4 mm [.157 in]
Product Height: 34.6mm [1.362 in]
Product length: 27.4 mm [1,079 in]
Product width: 33.6 mm [1,323 in]
Terms of use
Operating temperature (max): 125 ° C [257 ° F]
Operating temperature range (° C): -40 - 125, -40 - 125
Operating temperature range (° F): -40 - 257, -40 - 257
Industry standard
UL flammability classification: UL 94V-0
Degree of protection: IP67, IP69K
RBCTAS16PF2V
Data sheet
- Product type
- Connector body
- Serie
- AmpSeal 16
- Amperage
- 13A
- Material
- PBT (Polybutylene terephthalate)
- Color
- Black
- IP rating
- IP67
- Operating temperature
- -40°C to +125°C
- Flammability
- 94-HB
- Voltage
- 250V
- Mounting
- On cable
- Kind
- Male
- Number of poles
- 2
- Number of rows
- 1
- Pitch
- 4.50 mm
- Orientation
- 180°
- Minimum order quantity
- 1
- Unit Type
- piece
