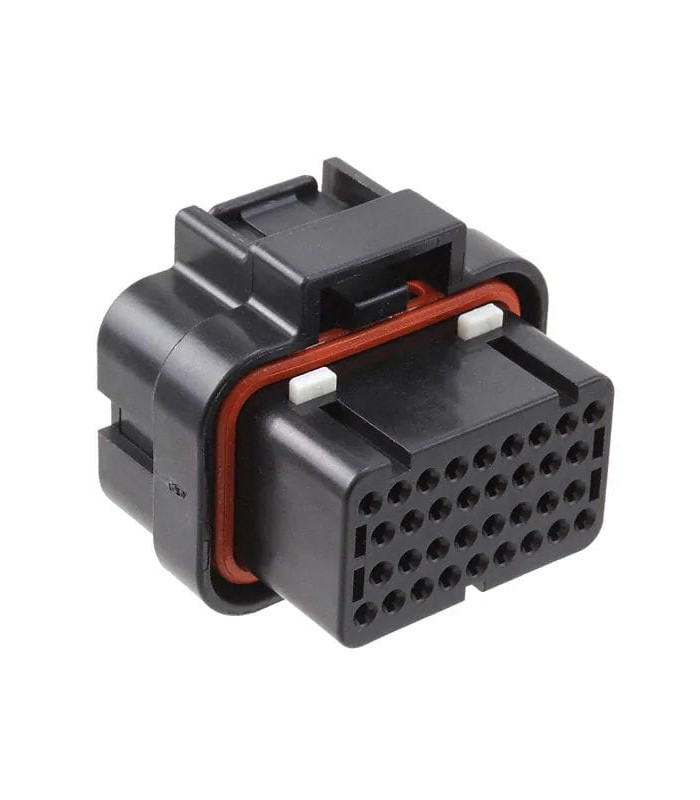

Superseal 1.0 Connector male 34 way

The connector is designed for automotive and industrial applications requiring high connection density, electrical reliability and mechanical resistance even in harsh environmental conditions.
This model is particularly suitable for advanced electronic systems, control units, control modules, automotive wiring and wire-to-board or wire-to-device applications where a high number of connections must be managed in compact spaces.
The connector body is made of PBT GF, a glass fiber reinforced material that ensures high structural rigidity, dimensional stability and excellent thermal resistance even in demanding applications.
The 34-position configuration distributed over 4 rows allows organized signal and power management while maintaining compact dimensions and high connection reliability.
The integrated polarization system facilitates correct connector mating, reducing the risk of errors during installation or maintenance.
The sealable structure helps improve protection against dust, moisture and external contaminants, making the connector suitable for harsh automotive and industrial environments.
Thanks to compatibility with different voltage architectures and the wide operating temperature range, the connector can be used in numerous professional electronic applications.

MAIN ADVANTAGES
- High reliability for automotive and industrial applications
- High-density configuration with 34 positions
- Compact structure with 4 connection rows
- Robust high-strength PBT GF body
- Polarized system to prevent mating errors
- Sealable structure against dust and contaminants
- Compatible with wire-to-board and wire-to-device systems
- Ideal for control units, electronic modules and professional wiring
- Wide operating temperature range

MAIN APPLICATIONS
- Automotive wiring
- Electronic control units
- Wire-to-board systems
- Wire-to-device systems
- Industrial control modules
- Industrial and agricultural vehicles
- Advanced automotive electronics
- Professional industrial applications

TECHNICAL FEATURES
Product code: 4-1437290-0
Type: housing for female terminals
Connection system: wire-to-board / wire-to-device
Sealable: yes
Hybrid connector: no
Locking system: integrated in housing
Number of positions: 34
Number of rows: 4
Operating voltage: 250 VAC / 250 VDC
Nominal voltage architecture: 12 / 24 / 42 / 48 / 80 / 90 / 125 / 240 V
Body material: PBT GF
Color: black
Cable exit angle: 180°
Mating pin diameter: 1 mm
Polarized: yes
Strain relief: no
Terminal position assurance: yes
Mounting: without mounting feature
Pitch: 3 mm
Row spacing: 3.5 / 4 mm
Height: 34.55 mm
Length: 32.15 mm
Width: 38.2 mm
Operating temperature: from -40 °C to +125 °C
Flammability rating: UL 94V-2
Protection rating: JIS D0203
