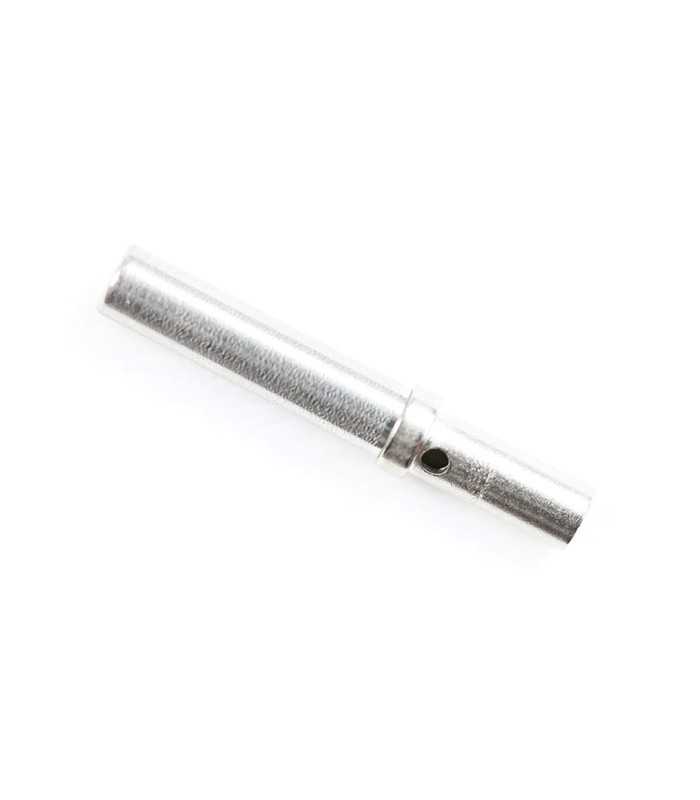

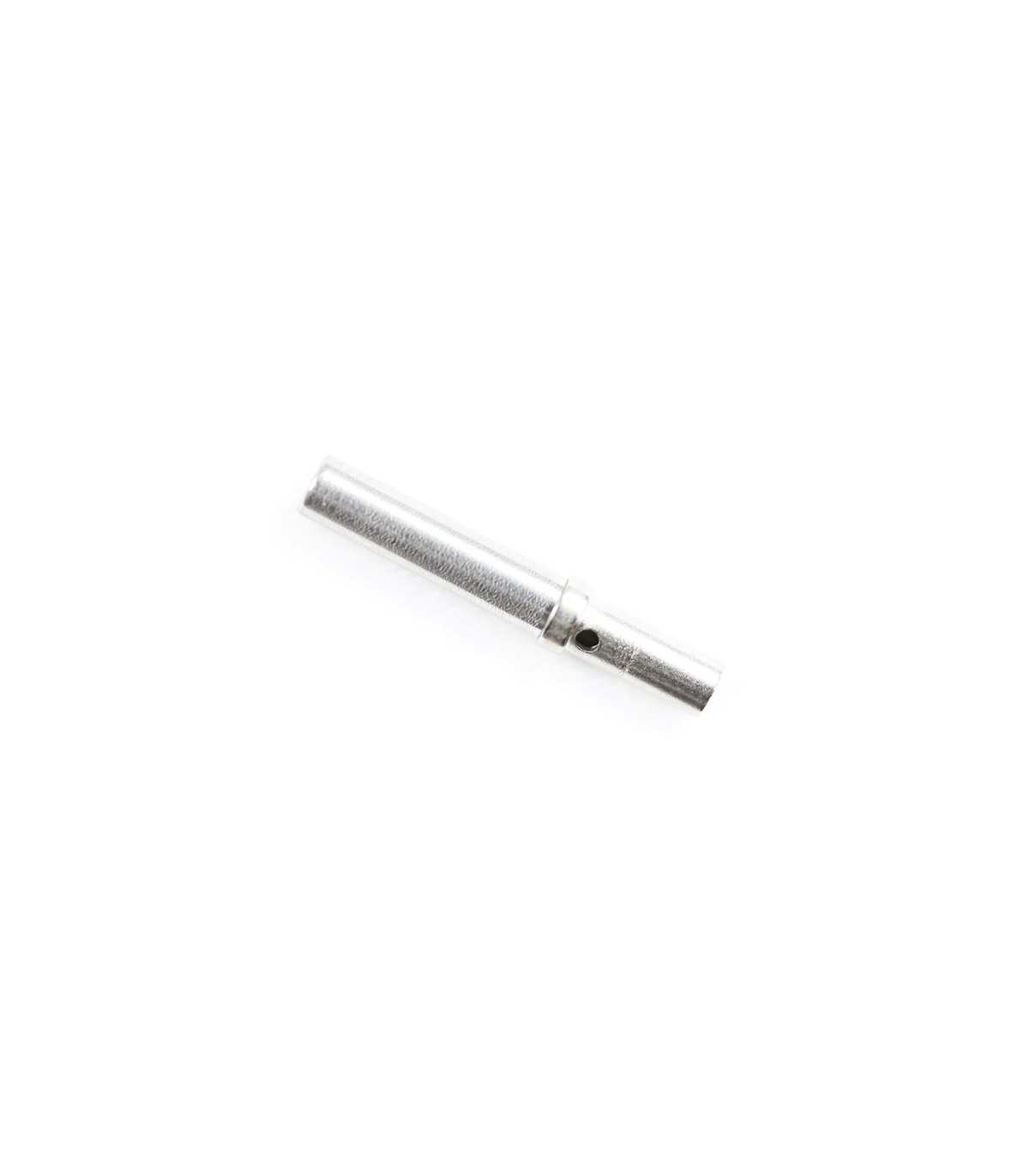

Terminal Serie DT female 16-20 Awg

Errebi code: 29162
Producer code: AT62-201-16141
Producer: Amphenol
Read moreShow less
€1.40 (tax excl.)
€1.71

Discounts for quantities

Quantity Unit price You Save
3 €1.71 €0.00
12 €1.54 €2.02
27 €1.37 €9.20
51 €1.28 €21.78
102 €1.11 €61.15
252 €0.94 €193.47
501 €0.85 €427.85
1002 €0.77 €942.13
'Available in 5 working days from the order.'
The minimum purchase order quantity for the product is 3.
100% secure payments
Condition
New product
Reference:
RBTNDT16F16ASTA
Add to wishlist
Description
Product Type Features
Sealed: Yes
Primary Locking Feature: None
Wire Type: Copper

Body Features
Seal Type: Family Seal

Contact Features
Terminal Style: Socket
Mating Pin Diameter: (Size 16) 1.6 mm [ (Size 16) .063 in ]
Interface Plating: Nickel (Ni)
Typical Current Rating (A): 13

Termination Features
Termination Method: Crimp
Crimp Type: Radial

Dimensions
Wire Size Search (mm²): .5, .75, 1, 1.5
Wire Size Search (AWG): 16, 18, 20
Wire Size: .5 – 1.5 mm² [ 20 – 16 AWG ]

Usage Conditions
Operating Temperature (Max) (°C): 80, 85, 90, 100, 105, 110, 120, 125
Operating Temperature (Max) (°F): 176, 185, 194, 212, 221, 230, 248, 257
Operating Temperature Range: -55 – 125 °C [ -67 – 257 °F ]

Other
Terminal Transmits: 0 – 24 A (Low Power)
Read moreShow less
Product Details
RBTNDT16F16ASTA

Data sheet

Product type
Terminal
Serie
DT
Amperage
13A
Operating temperature
-55°C to +125°C
Contact material
Copper
Mounting
On cable
Wire range
20 -16 AWG
Kind
Female
Orientation
180°
Contact plating
Nickel
Minimum order quantity
3
Unit Type
pieces
