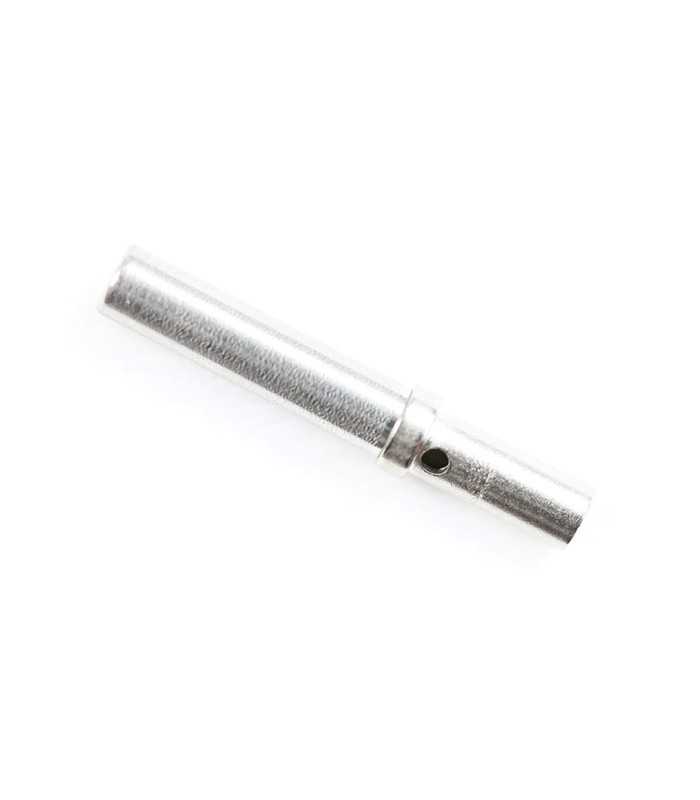

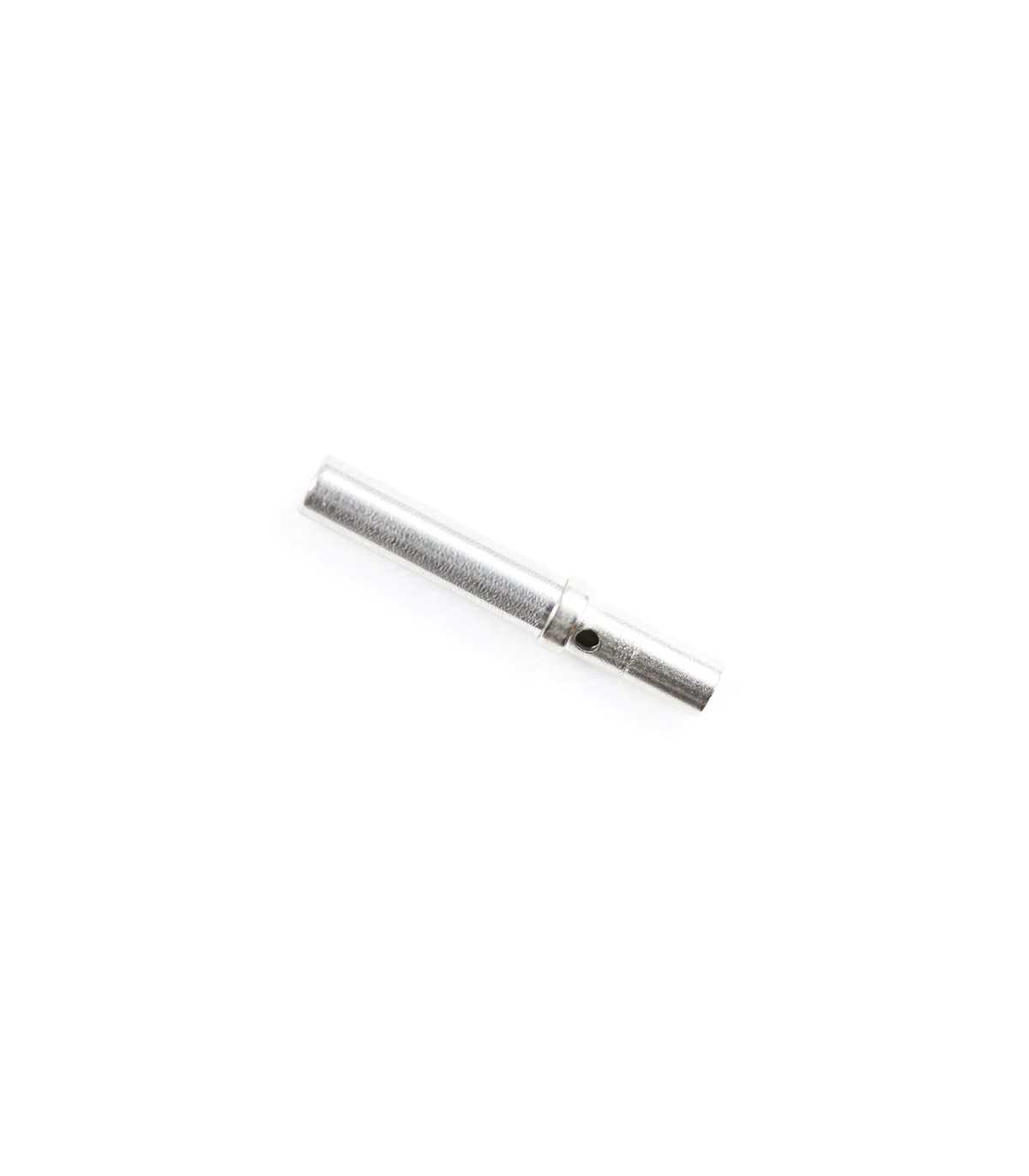

Terminal Serie DT hembra 16-20 Awg

Product Type Features
Sealed: Yes
Primary Locking Feature: None
Wire Type: Copper

Body Features
Seal Type: Family Seal

Contact Features
Terminal Style: Socket
Mating Pin Diameter: (Size 16) 1.6 mm [ (Size 16) .063 in ]
Interface Plating: Nickel (Ni)
Typical Current Rating (A): 13

Termination Features
Termination Method: Crimp
Crimp Type: Radial

Dimensions
Wire Size Search (mm²): .5, .75, 1, 1.5
Wire Size Search (AWG): 16, 18, 20
Wire Size: .5 – 1.5 mm² [ 20 – 16 AWG ]

Usage Conditions
Operating Temperature (Max) (°C): 80, 85, 90, 100, 105, 110, 120, 125
Operating Temperature (Max) (°F): 176, 185, 194, 212, 221, 230, 248, 257
Operating Temperature Range: -55 – 125 °C [ -67 – 257 °F ]

Other
Terminal Transmits: 0 – 24 A (Low Power)
