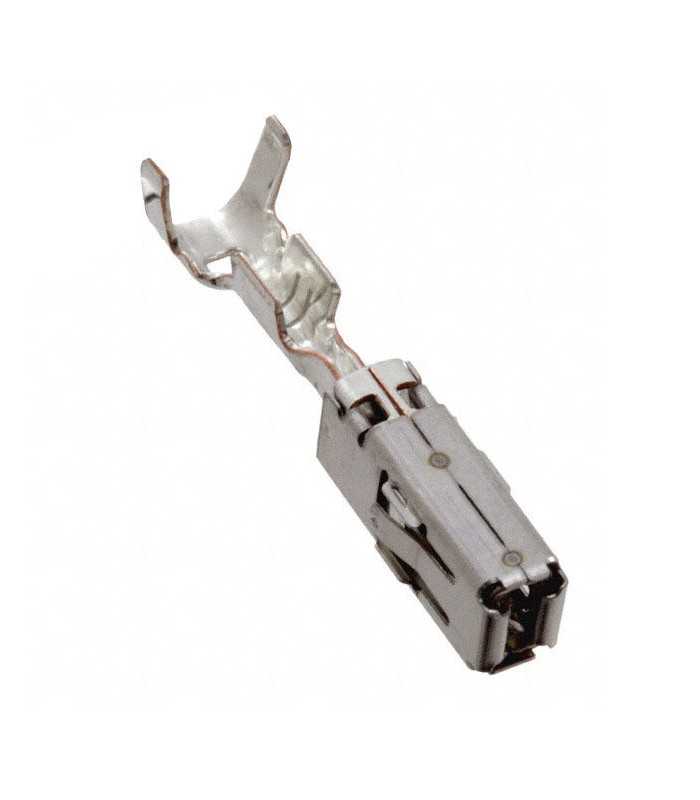

MCP 2,8 Terminal female

ErreBi code: 13135
Producer code: 1-968857-1
Producer: TE/Connectivity
Read moreShow less
€0.21 (tax excl.)
€0.26

Discounts for quantities

Quantity Unit price You Save
5 €0.26 €0.00
10 €0.23 €0.25
25 €0.21 €1.28
50 €0.19 €3.20
100 €0.17 €8.99
250 €0.14 €28.79
500 €0.13 €64.05
1000 €0.12 €141.04
Available in stock 8994 Items
The minimum purchase order quantity for the product is 5.
Condition
New
Reference:
RBTNMCP2.8F2.5
Add to wishlist
Description
Series: MCP
For Use With: MCP Connectors
Contact Gender: Socket

Product Type Features
- Sealable: Yes
- Primary Locking Feature: Locking Lance
- Wire Type: Copper
- Receptacle Style: 180°

Contact Features
- Crimp Type: F-Crimp
- Typical Current Rating (A): 22
- Terminal & Splice Type: Receptacle
- Mating Tab Width: 2.8 mm [ .11 in ]
- Mating Tab Thickness: .8 mm [ .031 in ]
- Interface Plating: Tin (Sn)
- Contact Termination Area Plating Material: Tin (Sn)

Termination Features
- Termination Method: Crimp

Dimensions
- Wire Size (AWG): 16 – 14
- Wire Size (mm²): 1.5 – 2.5
- Wire Insulation Diameter: 1.9 – 3 mm [ .075 – .118 in ]

Usage Conditions
- Operating Temperature Range: -40 – 130 °C [ -40 – 266 °F ]

Industry Standards
- Agency/Standard: LV214

Other
- Terminal Transmits: 25 – 40 A (Power)
Read moreShow less
Product Details
RBTNMCP2.8F2.5

Data sheet

Product type
Terminal
Serie
MCP
Amperage
22A
Operating temperature
-40°C to +130°C
Contact material
Silicon, Nickel, Copper alloy
Mounting
On cable
Wire range
1.50 - 2.50 mmq
Kind
Female
Orientation
180°
Contact plating
Tin
Minimum order quantity
5
Unit Type
pieces
