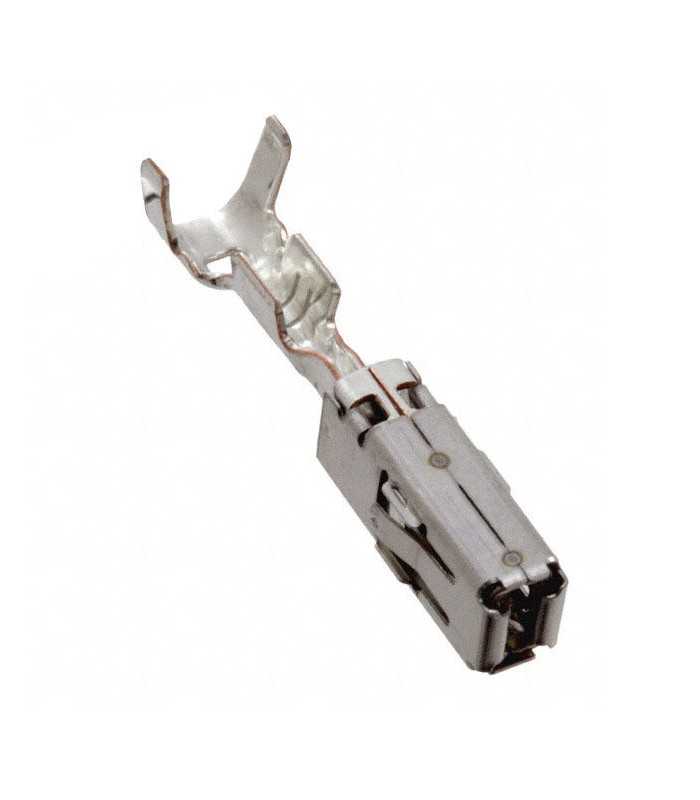

Borne MCP 2,8 femelle

Series: MCP
For Use With: MCP Connectors
Contact Gender: Socket

Product Type Features
- Sealable: Yes
- Primary Locking Feature: Locking Lance
- Wire Type: Copper
- Receptacle Style: 180°

Contact Features
- Crimp Type: F-Crimp
- Typical Current Rating (A): 22
- Terminal & Splice Type: Receptacle
- Mating Tab Width: 2.8 mm [ .11 in ]
- Mating Tab Thickness: .8 mm [ .031 in ]
- Interface Plating: Tin (Sn)
- Contact Termination Area Plating Material: Tin (Sn)

Termination Features
- Termination Method: Crimp

Dimensions
- Wire Size (AWG): 16 – 14
- Wire Size (mm²): 1.5 – 2.5
- Wire Insulation Diameter: 1.9 – 3 mm [ .075 – .118 in ]

Usage Conditions
- Operating Temperature Range: -40 – 130 °C [ -40 – 266 °F ]

Industry Standards
- Agency/Standard: LV214

Other
- Terminal Transmits: 25 – 40 A (Power)
