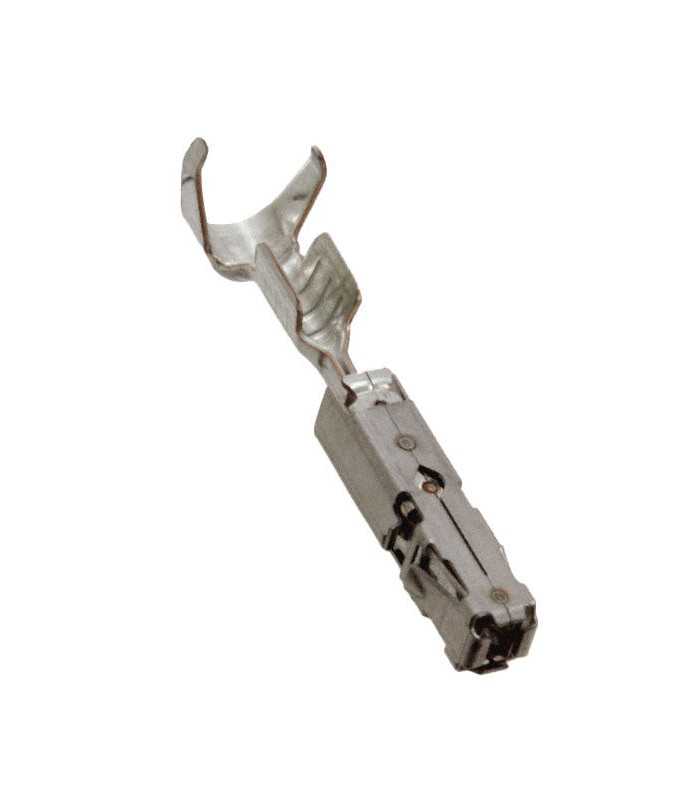

MCP 1,5 Terminal female

Kit Connector MTW Series Male Female 2 Way

ErreBi code: 11179
Producer code: 1241380-1
Producer: TE/Connectivity

€0.20 (tax excl.)

€0.24 (tax incl.)

Discounts for quantities

Quantity	Unit price	You Save
6	€0.24	€0.00
12	€0.22	€0.29
30	€0.20	€1.46
54	€0.18	€3.29
102	€0.16	€8.74
252	€0.13	€27.64
504	€0.12	€61.49
1002	€0.11	€134.59

Available in stock 12459 Items

The minimum purchase order quantity for the product is 6.

Condition

New

Reference:

RBTNMCP1.5FST

Brand:

TE Connectivity

Add to wishlist(1)

Description

Product Type Features
- Sealable: Yes
- Primary Locking Feature: Locking Lance
- Wire Type: Copper
- Receptacle Style: 180°

Contact Features
- Crimp Type: F-Crimp
- Typical Current Rating (A): 12
- Terminal & Splice Type: Receptacle
- Mating Tab Width: 1.5 mm [ .059 in ]
- Mating Tab Thickness: .6 mm [ .024 in ]
- Interface Plating: Tin (Sn)
- Contact Termination Area Plating Material: Tin (Sn)

Termination Features
- Termination Method: Crimp

Dimensions
- Wire Size (mm²): .5 – 1
- Wire Insulation Diameter: 1.4 – 2.1 mm [ .055 – .083 in ]

Usage Conditions
- Operating Temperature Range: -40 – 130 °C [ -40 – 266 °F ]

Industry Standards
- Agency/Standard: LV214

Other
- Terminal Transmits: 0 – 24 A (Low Power)
