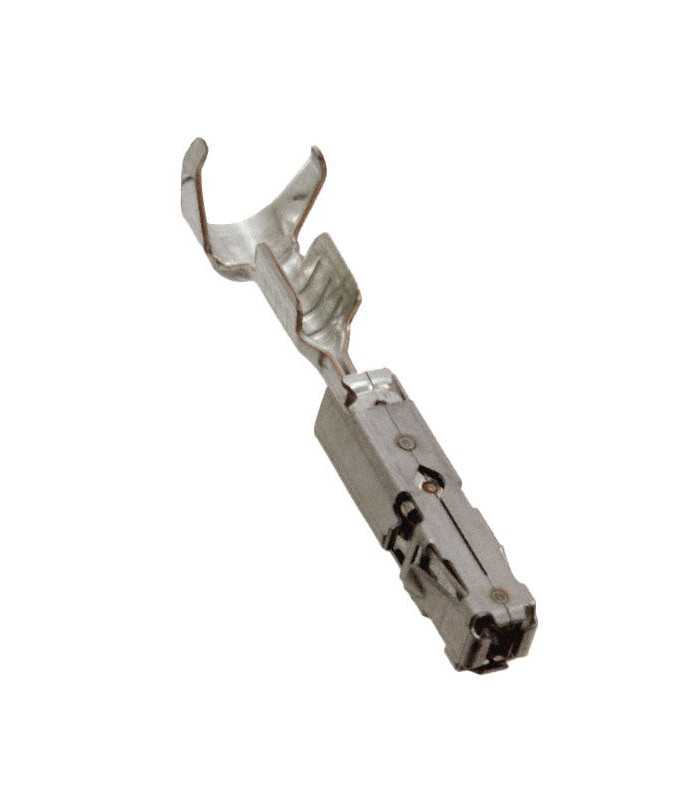

Product Type Features
- Sealable: Yes
- Primary Locking Feature: Locking Lance
- Wire Type: Copper
- Receptacle Style: 180°
Contact Features
- Crimp Type: F-Crimp
- Typical Current Rating (A): 12
- Terminal & Splice Type: Receptacle
- Mating Tab Width: 1.5 mm [ .059 in ]
- Mating Tab Thickness: .6 mm [ .024 in ]
- Interface Plating: Tin (Sn)
- Contact Termination Area Plating Material: Tin (Sn)
Termination Features
- Termination Method: Crimp
Dimensions
- Wire Size (mm²): .5 – 1
- Wire Insulation Diameter: 1.4 – 2.1 mm [ .055 – .083 in ]
Usage Conditions
- Operating Temperature Range: -40 – 130 °C [ -40 – 266 °F ]
Industry Standards
- Agency/Standard: LV214
Other
- Terminal Transmits: 0 – 24 A (Low Power)
