€0.13
(tax excl.)
€0.16
Errebi code: 60658Producer code: 1500-0106Producer: Sumitomo

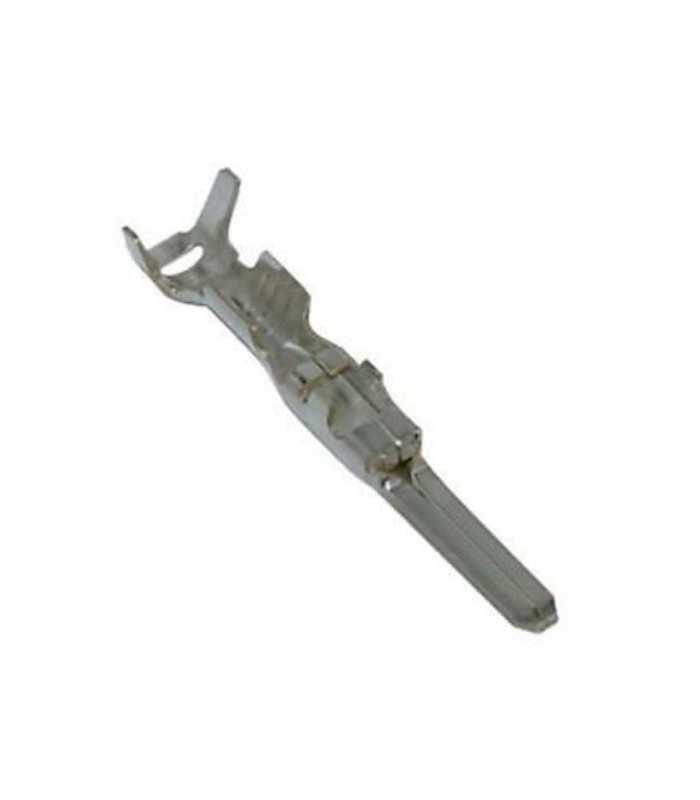

Terminal HM-MT-HW Sealed Series Male
Errebi code: 11751
Producer code: 1500-0105
Producer: Sumitomo
Read moreShow lessProducer code: 1500-0105
Producer: Sumitomo
€0.13
(tax excl.)
€0.16
Condition
New product
Reference:
RBTNMTSM0.85
Brand:
Sealed/Unsealed: sealed
Male/Female: M
Tab Size: 2.3mm(090)
Mating parts: 1500-0110(MT sealed series/HW sealed series), 1500-0106(HM sealed series/HW sealed series)
Applicable wire size: 0.3-1.25mm2
Cable overall diameter (mm): 1.4-2.9
Materials: Brass
Surface treatment: Tin-plated
Thickness (mm): 0.3
(tab thickness): 0.64
Contact resistance: Initial 3mO Max. After durability tests 10mO Max.
Leak current: 100µA Max.
Insulation resistance: 100MO Min.
Read moreShow less
Male/Female: M
Tab Size: 2.3mm(090)
Mating parts: 1500-0110(MT sealed series/HW sealed series), 1500-0106(HM sealed series/HW sealed series)
Applicable wire size: 0.3-1.25mm2
Cable overall diameter (mm): 1.4-2.9
Materials: Brass
Surface treatment: Tin-plated
Thickness (mm): 0.3
(tab thickness): 0.64
Contact resistance: Initial 3mO Max. After durability tests 10mO Max.
Leak current: 100µA Max.
Insulation resistance: 100MO Min.
RBTNMTSM0.85
Data sheet
- Product type
- Terminal
- Serie
- MT Sealed, HM Sealed
- Material
- Brass
- Wire range
- 0.30 - 1.25 mmq
- Kind
- Male
- Contact plating
- Tin
- Minimum order quantity
- 30
- Unit Type
- pieces
