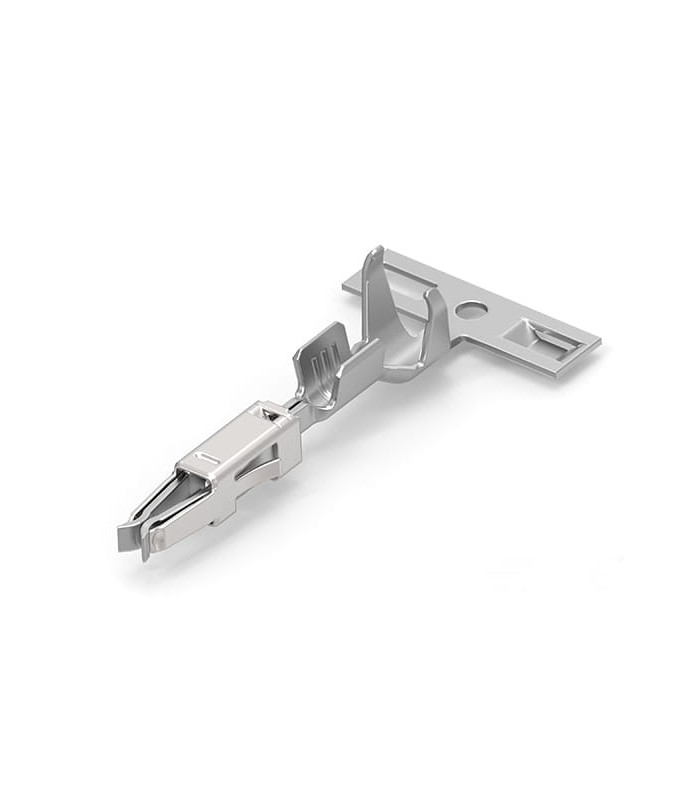

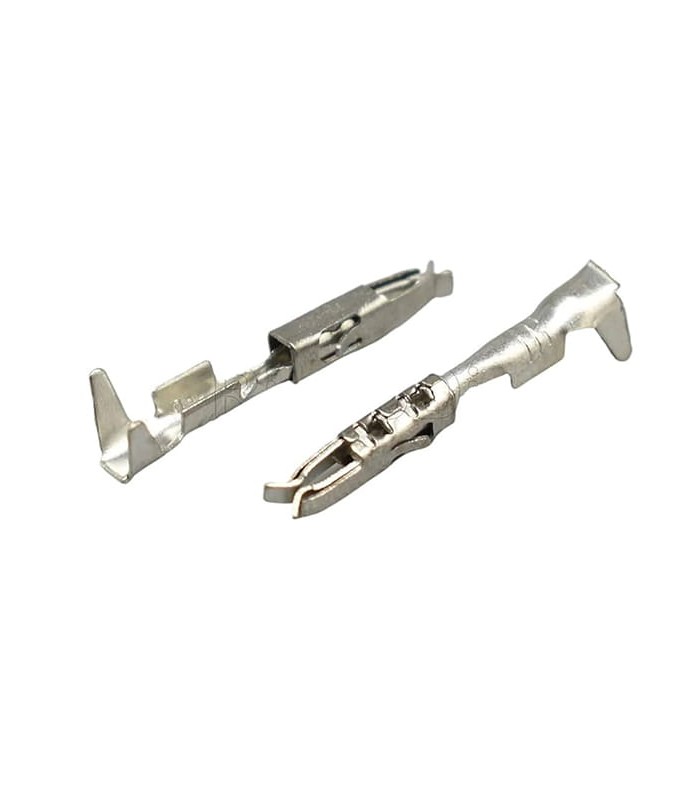

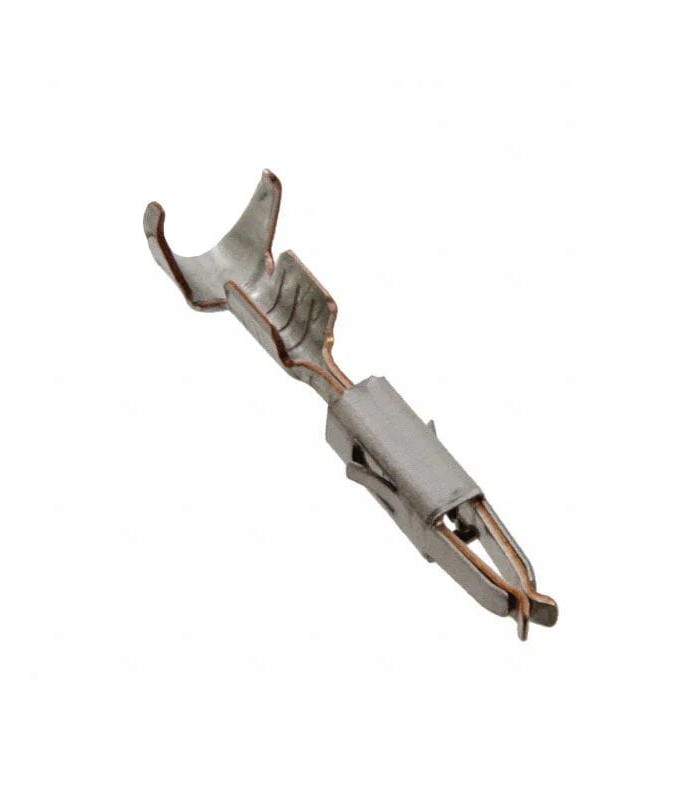

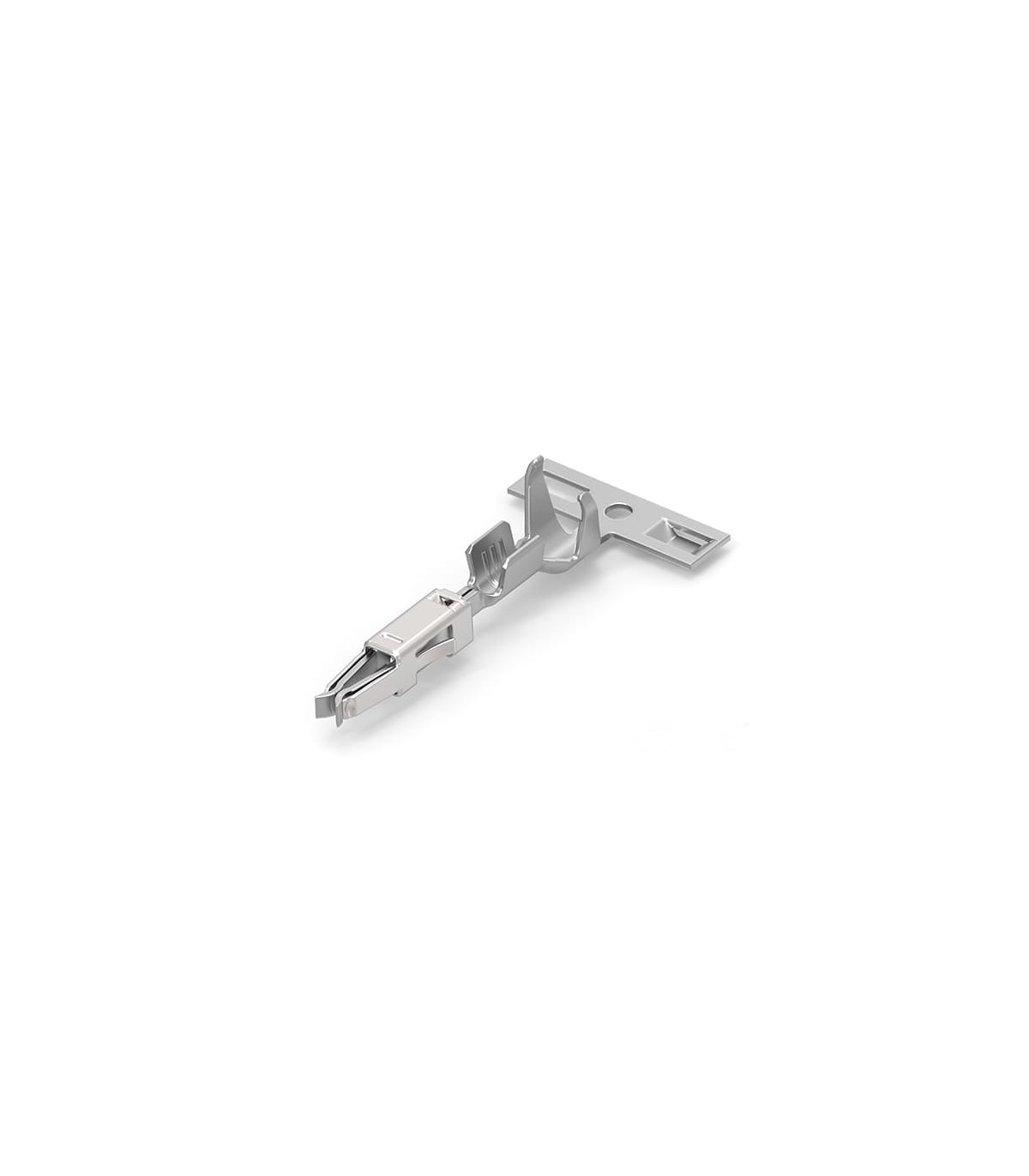

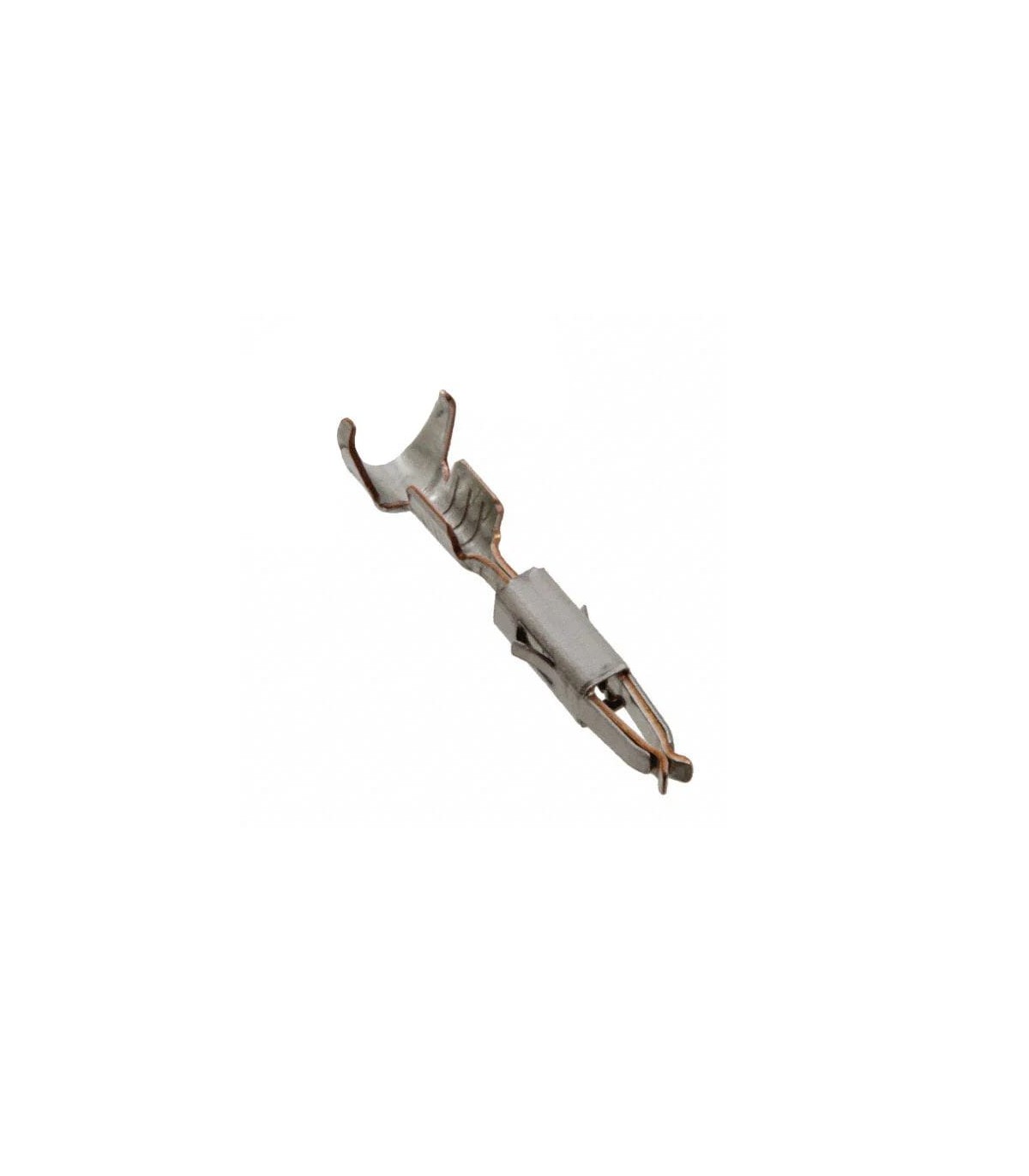

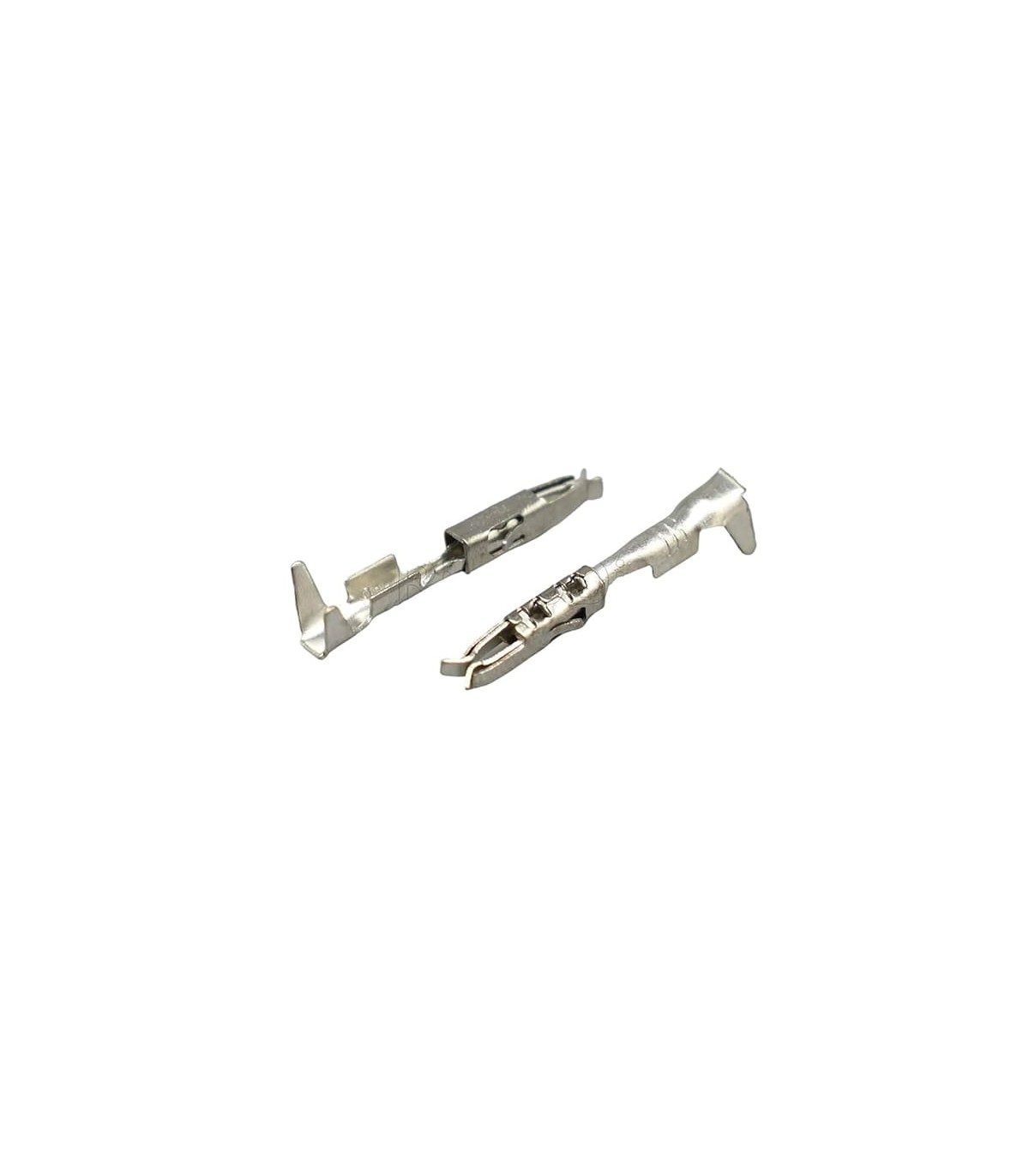

female Micro Timer II terminal section 0.50 - 1.00 mmq

The contact belongs to the Micro Timer II series, crimpable, designed for automotive applications where a compact, reliable, and well-defined signal connection is required.

Function and Benefits

The contact is designed to clearly separate mechanical properties from electrical properties, improving connection stability over time.
The tin plating ensures low contact resistance and protection against oxidation, while the base materials provide strength and durability even in demanding conditions.

Typical Applications

• Signal connections in automotive wiring, electronic modules, sensors, and interfaces.


• Use inside ECUs, control units, and dashboards where space and reliability are essential.


• Sealed systems for protection against dust, humidity, or external agents.


• Modular projects requiring easy contact replacement.


• Critical environments with variable conditions and high demand for signal stability.

Technical Features

• Gender: female


• Mounting style: cable mount


• Contact plating: tin


• Material: copper alloy


• Pitch: 1.6 mm


• Orientation: straight (180°)


• Mounting: on cable


• Wire section (AWG): 20 - 17 AWG


• Wire section (mm²): 0.50 – 1.00 mm²


• Series: Micro Timer II


• Rated current: 10 A


• Maximum operating temperature: +120 °C


• Minimum operating temperature: -40 °C


• Weight: 0.43 g
