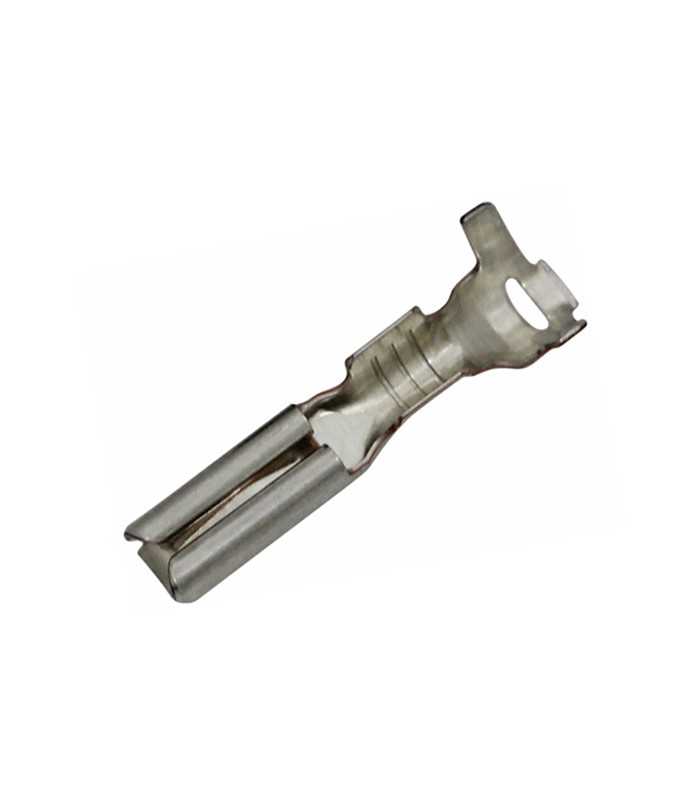

Terminal HM-MT-HW Sealed Series Female

Errebi code: 11750
Producer code: 1500-0110
Producer: Sumitomo
Read moreShow less
€0.07 (tax excl.)
€0.09

Discounts for quantities

Quantity Unit price You Save
30 €0.09 €0.00
60 €0.06 €1.28
120 €0.06 €3.60
270 €0.05 €10.36
510 €0.04 €21.78
1020 €0.04 €47.95
Available in stock 4090 Items
The minimum purchase order quantity for the product is 30.
Condition
New
Reference:
RBTNMTSF0.85
Brand:
Add to wishlist(6)
Description
Sealed/Unsealed: sealed
Male/Female: F
Tab Size: 2.3mm(090)
Mating parts: 1500-0105(MT sealed series/HW sealed series/HM sealed series)
Applicable wire size: 0.85-1.25mm2
Cable overall diameter (mm): 1.4-2.9
Materials: Heat-resistant copper alloy
Surface treatment: Tin-plated
Thickness (mm): 0.25
Contact resistance: Initial 3mO Max. After durability tests 10mO Max.
Leak current: 100µA Max.
Insulation resistance: 100MO Min.
Read moreShow less
Product Details
RBTNMTSF0.85

Data sheet

Product type
Terminal
Serie
MT Sealed, HM Sealed
Contact material
Copper Alloy
Wire range
0.85 - 1.25 mmq
Kind
Female
Contact plating
Tin
Minimum order quantity
30
Unit Type
pieces
