€5.42
(tax excl.)
€6.61
(tax incl.)
Errebi code: 59093Producer code: 184046-1Producer: TE/Connectivity

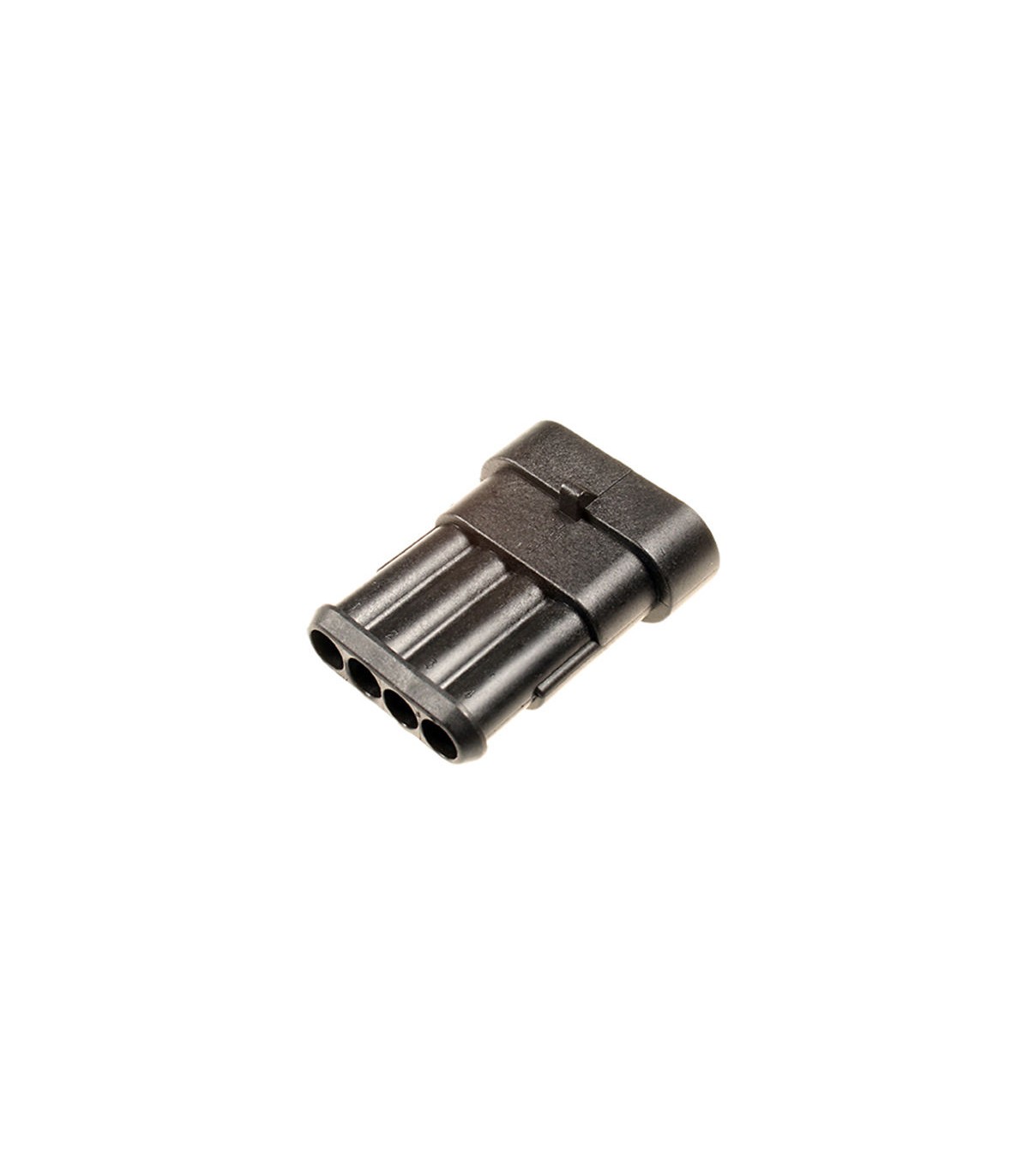

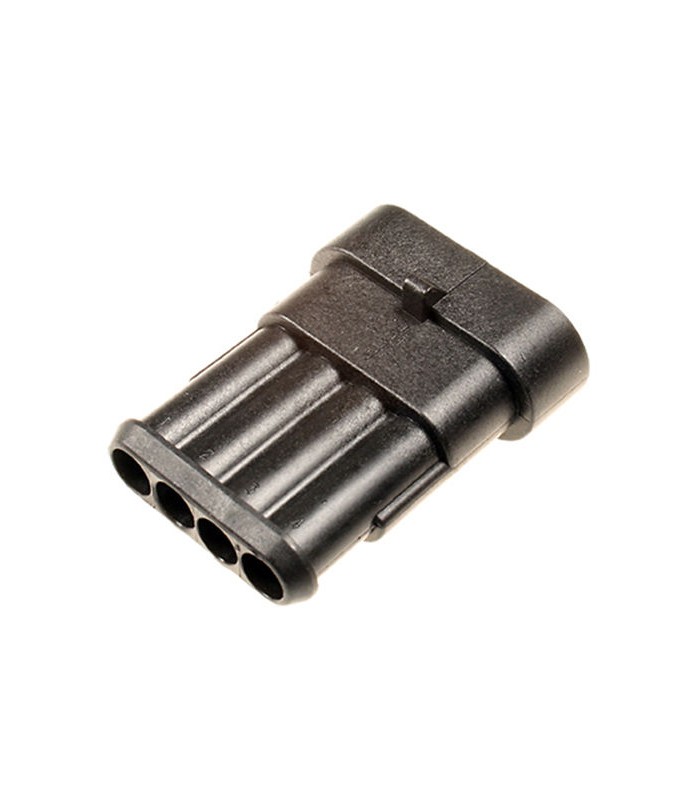

Superseal Connector female 4 way
Errebi code: 12366
Producer code: 282106-1
Producer: TE/Connectivity
Read moreShow lessProducer code: 282106-1
Producer: TE/Connectivity
€0.93
(tax excl.)
€1.13
(tax incl.)
Condition
New
Reference:
RBCTSSPM4V
Brand:
Add to wishlist
Series: SUPERSEAL
No. of Positions: 4
Pitch Spacing: 6mm
For Use With: Superseal 1.5 Series Connectors
Cable Diameter Max: 2.4mm
Cable Diameter Min: 1.8mm
Connector Body Material: Nylon 6.6 (Polyamide 6.6)
Current rating: 14A
External Depth: 16.3mm
External Length / Height: 42mm
External Width: 19.8mm
Gender: Receptacle
Insulation Resistance: 200Mohm
Operating Temperature Max: 125°C
Operating Temperature Min: -40°C
Withstand Voltage: 1500V
Read moreShow less
No. of Positions: 4
Pitch Spacing: 6mm
For Use With: Superseal 1.5 Series Connectors
Cable Diameter Max: 2.4mm
Cable Diameter Min: 1.8mm
Connector Body Material: Nylon 6.6 (Polyamide 6.6)
Current rating: 14A
External Depth: 16.3mm
External Length / Height: 42mm
External Width: 19.8mm
Gender: Receptacle
Insulation Resistance: 200Mohm
Operating Temperature Max: 125°C
Operating Temperature Min: -40°C
Withstand Voltage: 1500V
RBCTSSPM4V
Data sheet
- Product type
- Connector
- Serie
- Superseal 1.5
- Amperage
- 14A
- Material
- PA (Polyamide, Nylon)
- Color
- Black
- IP rating
- IP67
- Operating temperature
- -40°C to +125°C
- Voltage
- 24V
- Kind
- Female
- Number of poles
- 4
- Number of rows
- 1
- Orientation
- 180°
- Minimum order quantity
- 3
- Unit Type
- pieces
