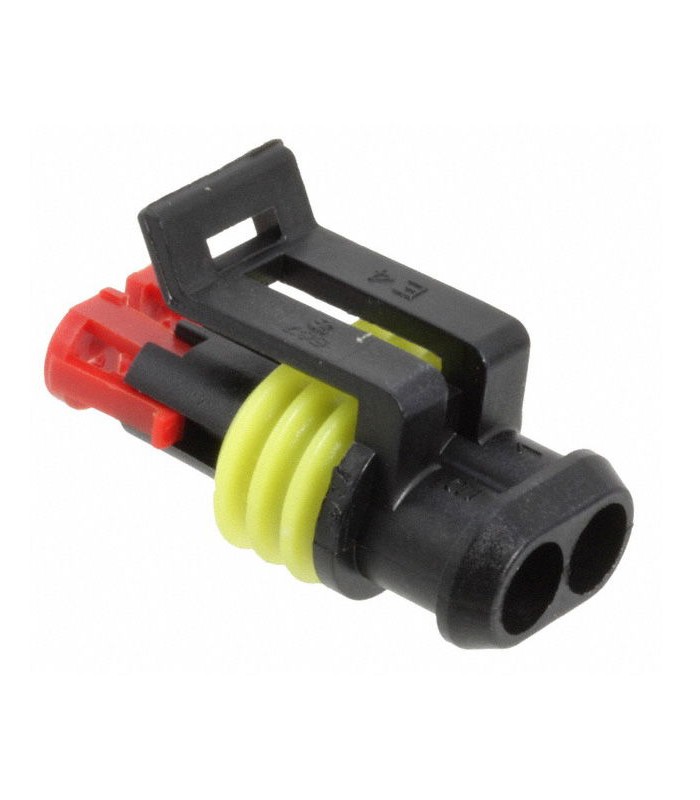

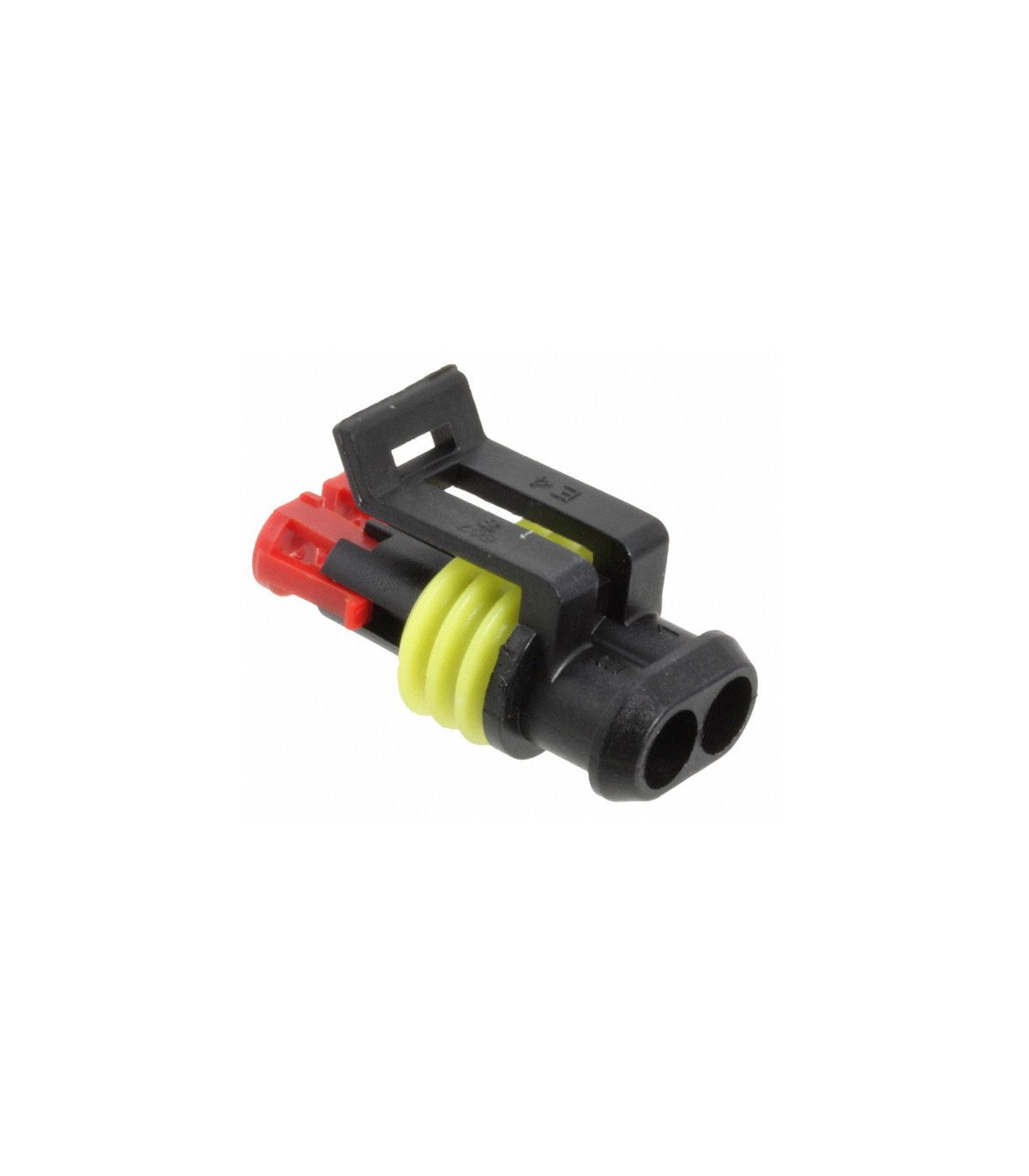

Superseal Connector male 2 way

The connector is designed for automotive and industrial applications requiring high reliability, resistance to external agents and stable electrical connections even in harsh environmental conditions.
This connector is particularly suitable for electrical wiring exposed to humidity, dust, vibrations and temperature variations.
The SUPERSEAL series is widely used in the automotive sector, industrial vehicles, agricultural machinery, motorcycles, industrial electrical systems and electronic systems where a secure and durable wire-to-wire connection is required.
The connector body is made of Nylon, Polyamide and Polyamide 6.6 GF, materials that ensure high mechanical strength, dimensional stability and excellent resistance to operating temperatures.
The silicone rubber seals provide effective protection against dust, moisture and external agents, helping maintain high electrical reliability even in harsh environments.
The integrated locking system ensures a stable and secure connection, reducing the risk of accidental disconnections during operation.
Thanks to the 2-position configuration and 6 mm pitch, the connector allows organized wiring management while maintaining compact dimensions and ease of installation.

MAIN ADVANTAGES
- High reliability for automotive and industrial applications
- Stable connection even in the presence of vibrations
- Robust Nylon, Polyamide and Polyamide 6.6 GF structure
- Silicone rubber seals for improved environmental protection
- Integrated locking system for greater safety
- Compatible with SUPERSEAL 1.5 series connectors
- Ideal for harsh environments and professional applications
- Suitable for operating temperatures from -40 °C to +125 °C

MAIN APPLICATIONS
- Automotive wiring
- Industrial and agricultural vehicles
- Professional wiring harnesses
- Industrial electronic systems
- Electrical connections in harsh environments
- Applications with SUPERSEAL 1.5 series connectors

TECHNICAL FEATURES
Product code: 282080-1
Series: SUPERSEAL
Type: plug for terminals
Number of positions: 2
Pitch: 6 mm
Compatible with: Superseal 1.5 series connectors
Maximum cable diameter: 2.4 mm
Minimum cable diameter: 1.8 mm
Current rating: 14 A
Connector body material: Nylon, Polyamide
Moulding material: Polyamide 6.6 GF
Seal material: silicone rubber
External depth: 19 mm
External length / height: 28 mm
External width: 15.3 mm
Gender: plug
Insulation resistance: 200 MO
Maximum operating temperature: 125 °C
Minimum operating temperature: -40 °C
Withstand voltage: 1500 V
