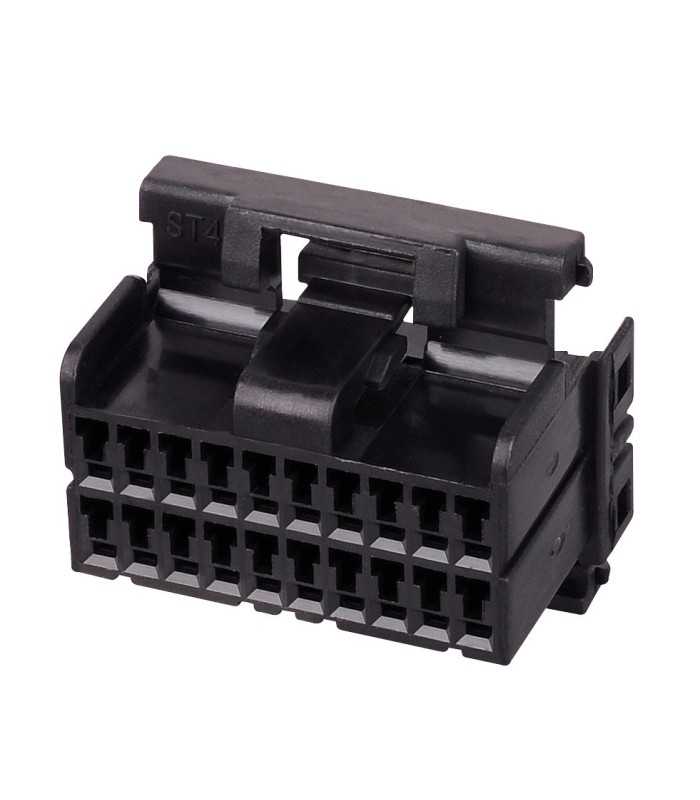

Connector Multilock 040 Male 20 Way

Errebi code: 16895
Producer code: 174047-2
Producer: TE/Connectivity
Read moreShow less
€1.61 (tax excl.)
€1.96

Discounts for quantities

Quantity Unit price You Save
10 €1.77 €1.94
25 €1.57 €9.80
50 €1.47 €24.55
100 €1.27 €68.94
250 €1.08 €220.73
500 €0.98 €491.05
1000 €0.88 €1,081.29
Available in stock 959 Items
Condition
New
Reference:
RBCTML040PF20VNT
Add to wishlist
Description
Product Type Features
Connector Style: Housing for female terminals
Connector System: Wire-to-Wire
Sealable: No
Hybrid Connector: No
Primary Locking Feature: Integrated in Housing
Row-to-Row Spacing: 5.2 mm [.205 in]

Configuration Features
Number of Positions: 20
Number of Rows: 2

Electrical Characteristics
Nominal Voltage Architecture (V): 12
Operating Voltage (VDC): 12

Body Features
Color: Black
Cable Exit Angle: 180°
Body Material: PBT

Contact Features
Mating Tab Width: .64 mm [.025 in]

Mechanical Attachment
Mounting Feature: No
Terminal Position Assurance: No
Polarized: Yes

Housing Features
Centerline (Pitch) 2.5 mm [.098 in]

Dimensions
Width 18.9 mm [.744 in]
Height 18.5 mm [.728 in]
Length 28.1 mm [1.0629 in]

Usage Conditions
Operating Temperature Range: -30 – 105°C[-22 – 221°F]

Operation/Application
Circuit Application: Signal

Industry Standards
UL Flammability Rating: UL 94-HB
Read moreShow less
Product Details
RBCTML040PF20VNT

Data sheet

Product type
Connector body
Serie
Multilock 040
Material
PBT (Polybutylene terephthalate)
Color
Black
Operating temperature
-30°C to +105°C
Dimensions
28,10x18,90x18,50 (L x W x H)
Voltage
12V
Mounting
On cable
Kind
Male
Number of poles
20
Number of rows
2
Pitch
2.50 mm
Orientation
180°
Minimum order quantity
1
Unit Type
piece
