RBCTMLPF6V

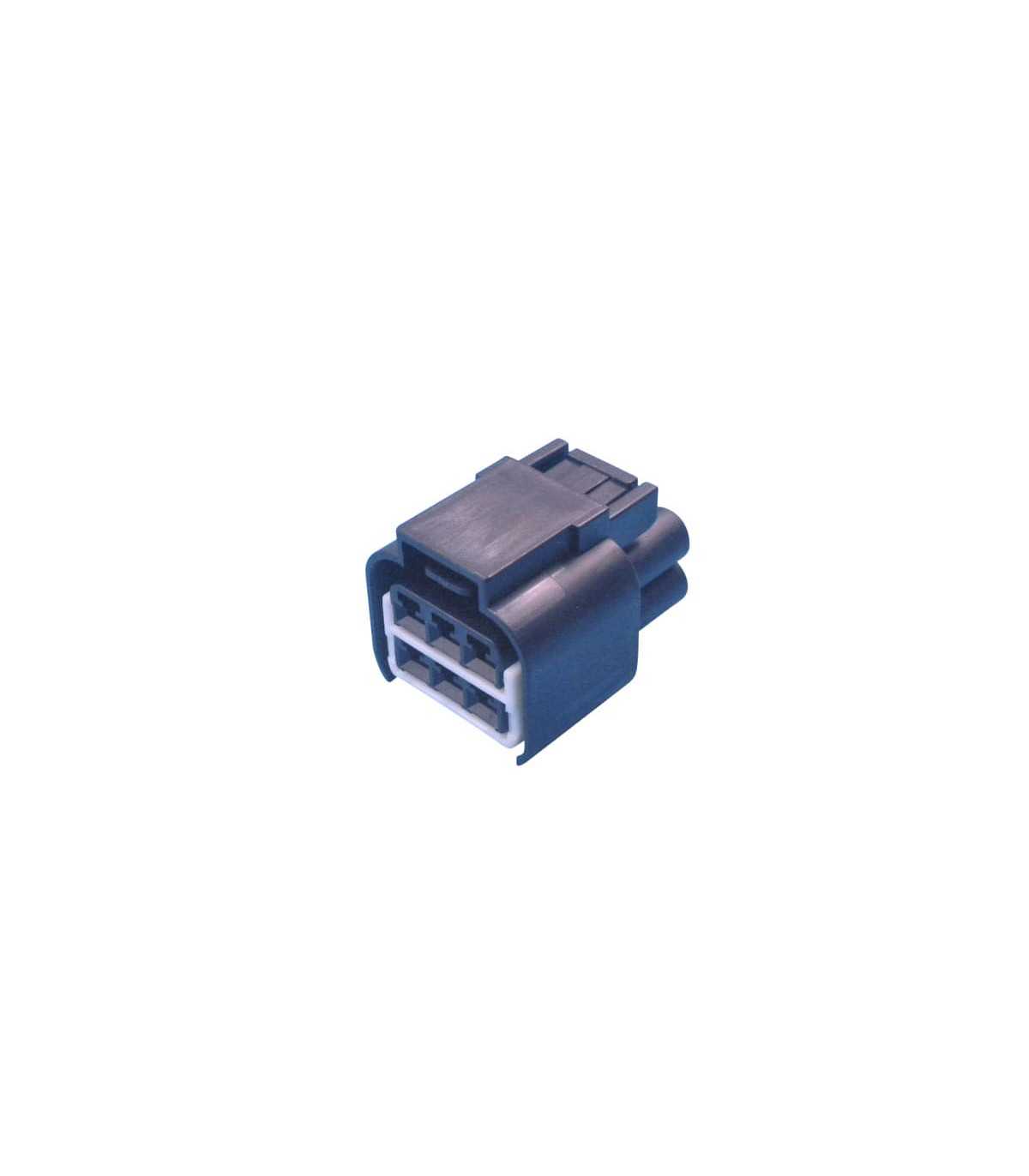

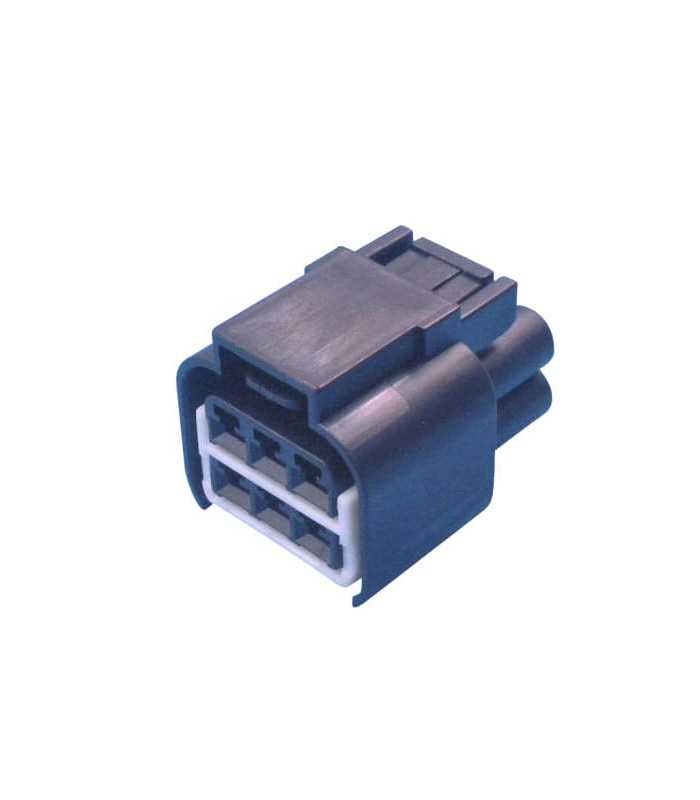

Connector Multilock Male 6 Way

Terminal DT size 16 male 16-20 awg
Errebi code: 58522
Producer code: 936257-2
Producer: TE/Connectivity
Read moreShow less
€2.71 (tax excl.)
€3.31 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €2.98 €3.31
25 €2.64 €16.53
50 €2.48 €41.33
100 €2.15 €115.72
250 €1.82 €371.95
500 €1.65 €826.55
1000 €1.49 €1,818.41
'Available in 30 working days from the order.'
Condition
New
Reference:
RBCTMLPF6V
Brand:
TE Connectivity
Add to wishlist
Description
Characteristics of the product type

Type of connector and housing: Housing for female terminals
Connector system: Cable to cable
Configuration functionality

Number of positions: 6
Number of lines: 2
Characteristics of the body

Body material: PBT
Cable exit angle: 180 °
Main product color: Black
Contact functions

Mating Tab Width: 2.8mm [0.11in]
Mechanical attack

Coupling Alignment Type: Polarized
Cable gland: No

Center line (pitch): 5.6 mm [0.22 inch]
Dimensions

Row-to-row spacing: 6.8 mm [0.267 inch]
Product height: 26.6mm [1.04 inch]
Product length: 26.2mm [1.03in]
Product width: 33mm [1.29 inch]
Read moreShow less
Product Details
RBCTMLPF6V

Data sheet

Product type
Connector body
Serie
Multilock
Material
PBT (Polybutylene terephthalate)
Color
Black
Operating temperature
-30°C to +105°C
Dimensions
26,20x33,00x26,60 (L x W x H)
Voltage
12V
Mounting
On cable
Kind
Male
Number of poles
6
Number of rows
2
Pitch
5.60 mm
Orientation
180°
Minimum order quantity
1
Unit Type
piece
