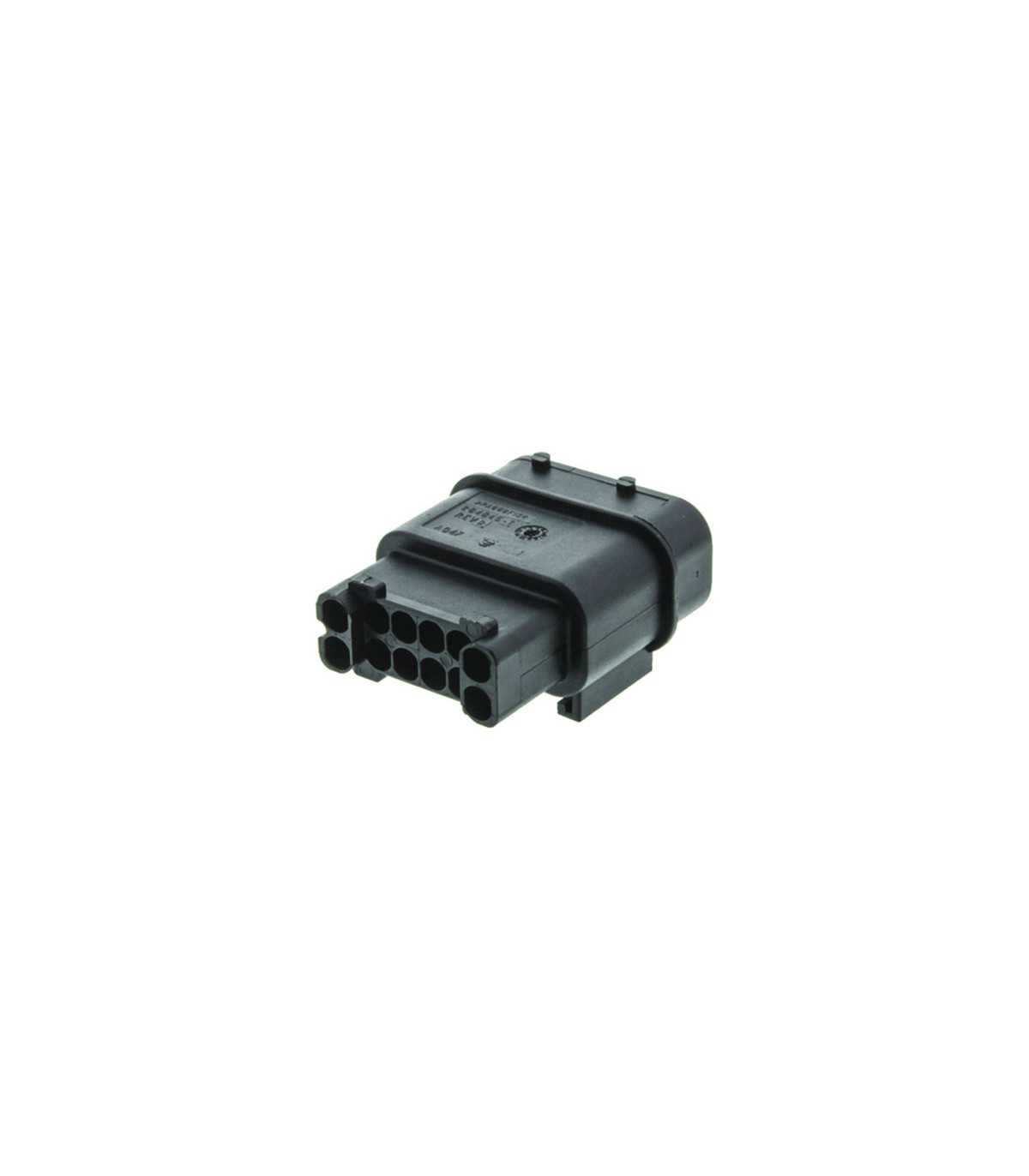

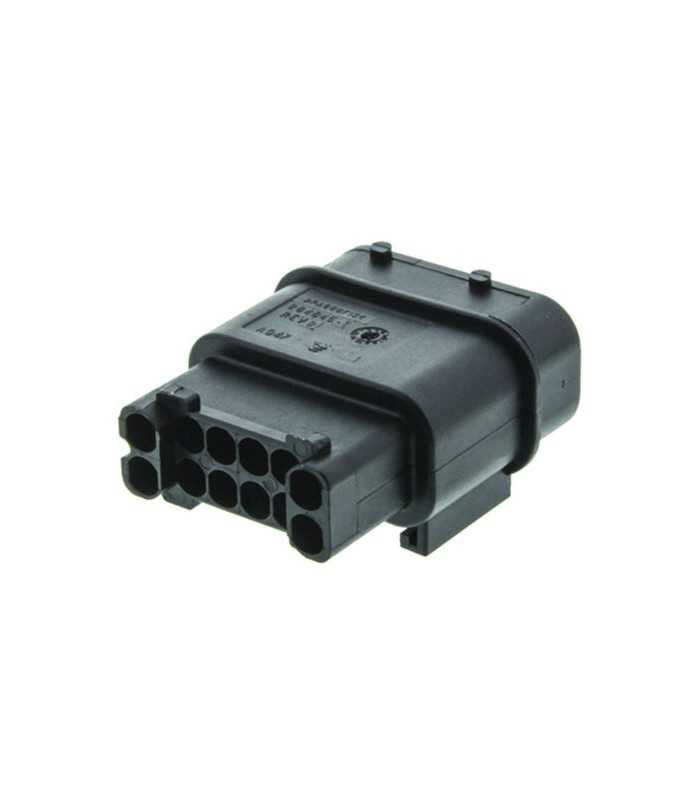

MCP Connectors female 12 way

Errebi code: 11374
Producer code: 284844-1
Producer: TE/Connectivity
Read more
€6.93 (tax excl.)
€8.45

Discounts for quantities

Quantity Unit price You Save
11 €7.97 €5.31
26 €7.49 €25.13
51 €5.92 €129.36
101 €5.31 €317.14
251 €4.71 €939.88
501 €4.23 €2,117.88
Last items in stock 29 Items
Condition
New product
Reference:
RBCTMCP12VPM
Description
Product Type Features
- Connector & Housing Type: Housing for Male Terminals
- Connector System: Wire-to-Wire
- Sealable: Yes
- Hybrid Connector: Yes
- Primary Locking Feature: On the Terminal
- Strain Relief: No
- Row-to-Row Spacing: 5 mm [ .197 in ]

Configuration Features
- Number of Positions: 12
- Number of Rows: 2

Electrical Characteristics
- Nominal Voltage Architecture (V): 12, 24
- Operating Voltage (VDC): 24

Body Features
- Primary Product Color: Black
- Cable Exit Angle: 180°
- Body Material: PA GF

Contact Features
- Mating Tab Width (mm): 1.6, 2.8
- Mating Tab Width (in): .063, .11

Mechanical Attachment
- Mounting Feature: Without
- Terminal Position Assurance: Yes
- Polarized: No

Housing Features
- Centerline (Pitch): 5 mm [ .197 in ]

Dimensions
- Width: 21.5 mm [ .846 in ]
- Height: 49.4 mm [ 1.945 in ]
- Length: 41.4 mm [ 1.63 in ]

Usage Conditions
- Operating Temperature Range: -25 – 125 °C [ -13 – 257 °F ]

Operation/Application
- Circuit Application: Signal

Other
- Connector Position Assurance Capable: No
- Serviceable: No
Read more
Product Details
RBCTMCP12VPM

Data sheet

Serie
MCP
Material
PA (Polyamide, Nylon)
Color
Black
Operating temperature
-25°C a +105°C
Dimensions
10,40x4,00x3,20 (L x W x H)
Voltage
24V
Mounting
On cable
Kind
Female
Number of poles
12
Number of rows
2
Pitch
5.00 mm
Orientation
180°
Product type
Connector body
