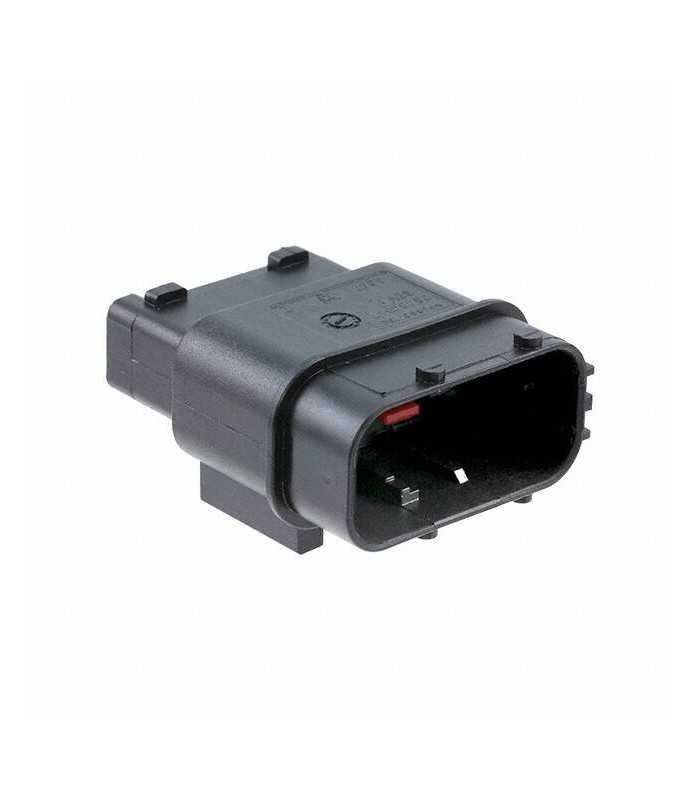

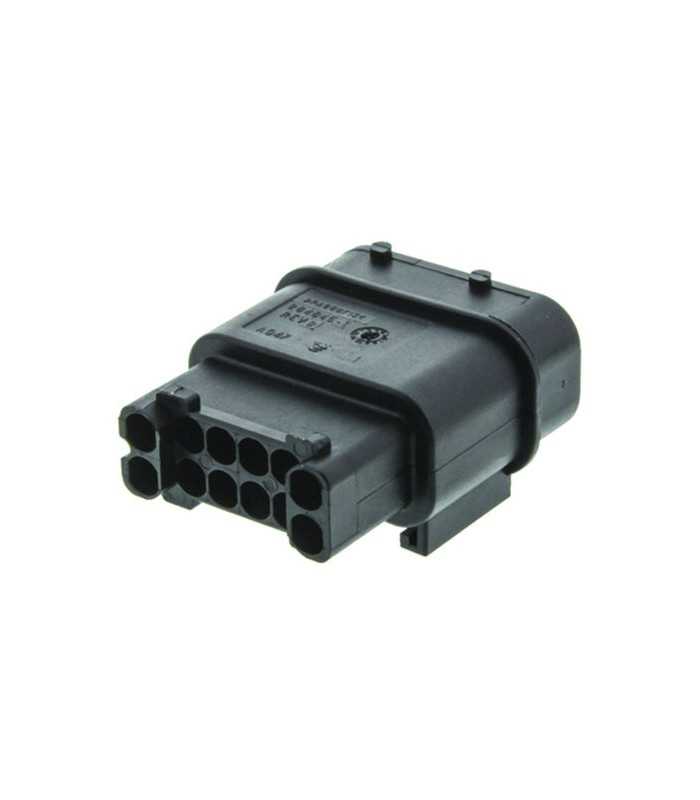

Connecteur MCP femelle 12 Voies

Product Type Features
- Connector & Housing Type: Housing for Male Terminals
- Connector System: Wire-to-Wire
- Sealable: Yes
- Hybrid Connector: Yes
- Primary Locking Feature: On the Terminal
- Strain Relief: No
- Row-to-Row Spacing: 5 mm [ .197 in ]

Configuration Features
- Number of Positions: 12
- Number of Rows: 2

Electrical Characteristics
- Nominal Voltage Architecture (V): 12, 24
- Operating Voltage (VDC): 24

Body Features
- Primary Product Color: Black
- Cable Exit Angle: 180°
- Body Material: PA GF

Contact Features
- Mating Tab Width (mm): 1.6, 2.8
- Mating Tab Width (in): .063, .11

Mechanical Attachment
- Mounting Feature: Without
- Terminal Position Assurance: Yes
- Polarized: No

Housing Features
- Centerline (Pitch): 5 mm [ .197 in ]

Dimensions
- Width: 21.5 mm [ .846 in ]
- Height: 49.4 mm [ 1.945 in ]
- Length: 41.4 mm [ 1.63 in ]

Usage Conditions
- Operating Temperature Range: -25 – 125 °C [ -13 – 257 °F ]

Operation/Application
- Circuit Application: Signal

Other
- Connector Position Assurance Capable: No
- Serviceable: No
