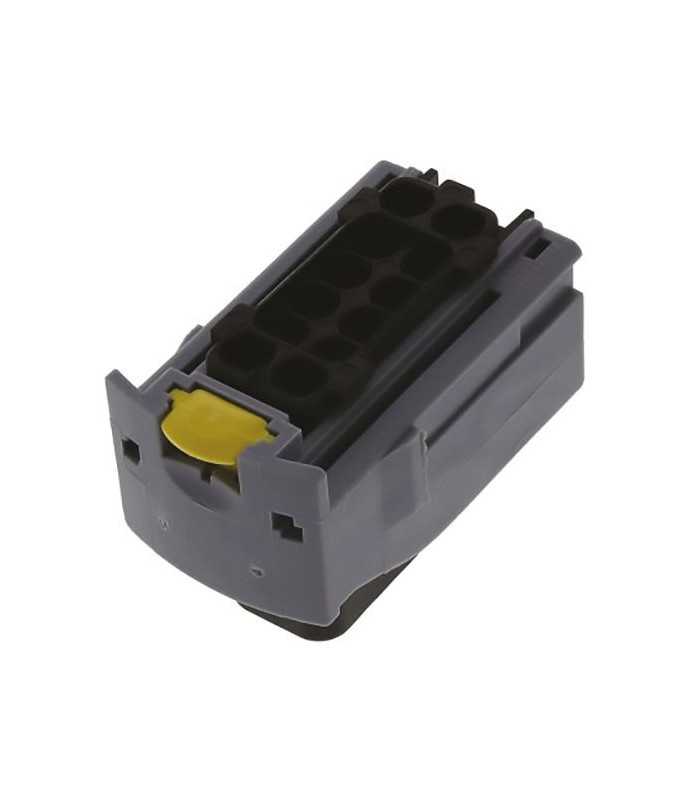

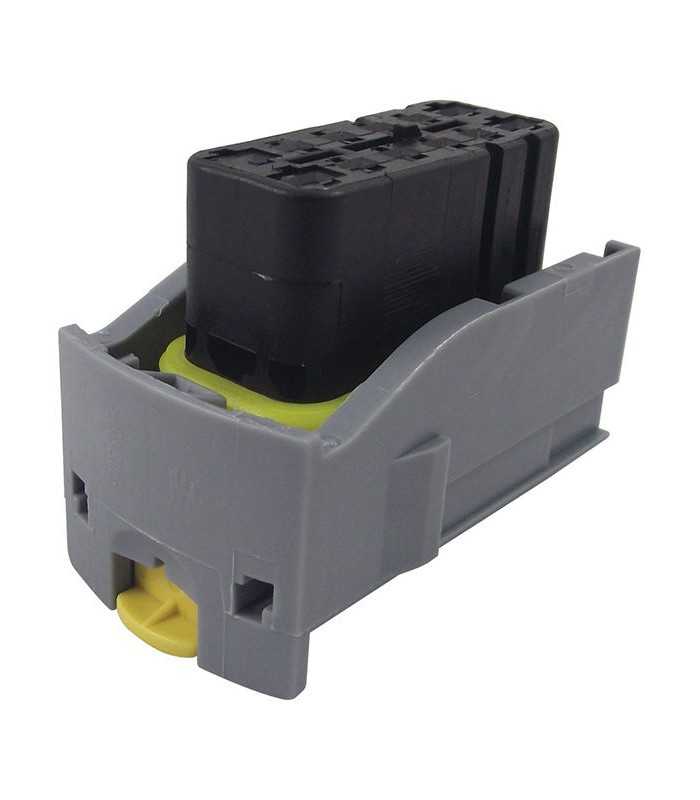

MCP Connectors male 12 way

Errebi code: 11178
Producer code: 284848-1
Producer: TE/Connectivity
Read moreShow less
€4.93 (tax excl.)
€6.01

Discounts for quantities

Quantity Unit price You Save
10 €5.67 €3.43
25 €5.33 €17.19
50 €4.21 €90.22
100 €3.78 €223.38
250 €3.35 €665.97
500 €3.01 €1,503.65
Available in stock 923 Items
100% secure payments
Condition
New product
Reference:
RBCTMCP12VPF
Add to wishlist
Description
Product Type Features
- Connector & Housing Type: Housing for Female Terminals
- Connector System: Wire-to-Wire
- Sealable: Yes
- Hybrid Connector: Yes
- Primary Locking Feature: On the Terminal
- Strain Relief: No
- Row-to-Row Spacing: 4.5 mm [ .177 in ]

Configuration Features
- Number of Positions: 12
- Number of Rows: 2

Electrical Characteristics
- Nominal Voltage Architecture (V): 12, 24
- Operating Voltage (VDC): 24

Body Features
- Primary Product Color: Black
- Cable Exit Angle: 180°
- Body Material: PA GF

Contact Features
- Mating Tab Width (mm): 1.6, 2.8
- Mating Tab Width (in): .063, .11

Mechanical Attachment
- Mounting Feature: Without
- Terminal Position Assurance: Yes
- Polarized: No

Housing Features
- Centerline (Pitch): 5 mm [ .197 in ]

Dimensions
- Width: 26.6 mm [ 1.047 in ]
- Height: 32.6 mm [ 1.283 in ]
- Length: 45.8 mm [ 1.803 in ]

Usage Conditions
- Operating Temperature Range: -25 – 125 °C [ -13 – 257 °F ]

Operation/Application
- Circuit Application: Signal

Other
- Connector Position Assurance Capable: Yes
- Serviceable: No
Read moreShow less
Product Details
RBCTMCP12VPF

Data sheet

Product type
Connector body
Serie
MCP
Material
PA (Polyamide, Nylon)
Color
Black
Operating temperature
-25°C a +105°C
Dimensions
45,80x26,60x32,60 (L x W x H)
Voltage
24V
Mounting
On cable
Kind
Male
Number of poles
12
Number of rows
2
Pitch
5.00 mm
Orientation
180°
Minimum order quantity
1
Unit Type
piece
