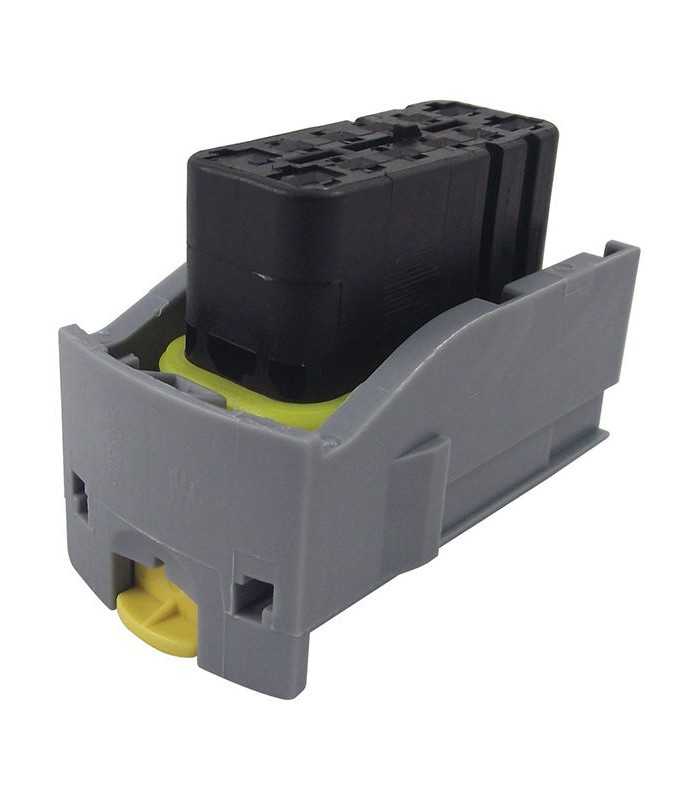

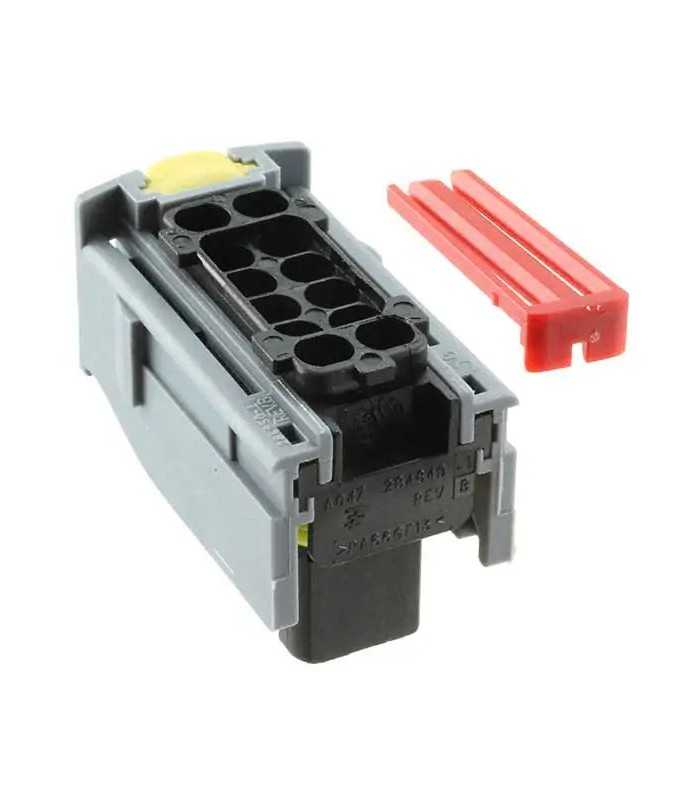

MCP Steckverbinder männlich 12 way

Errebi code: 11178
Produzent code: 284848-1
Produzent: TE/Connectivity
3,78 € (tax excl.)
4,61 €

Mengenrabatt

Menge Preis Sie sparen
11 4,35 € Bis zu 2,90 €
26 4,08 € Bis zu 13,70 €
51 3,23 € Bis zu 70,56 €
101 2,90 € Bis zu 172,99 €
251 2,57 € Bis zu 512,66 €
501 2,31 € Bis zu 1.155,21 €
'Verfügbar in 10 Arbeitstagen ab Bestellung.'
Zustand
Neuer Artikel
Reference:
RBCTMCP12VPF
Zur Wunschliste hinzufügen
Beschreibung
Product Type Features
- Connector & Housing Type: Housing for Female Terminals
- Connector System: Wire-to-Wire
- Sealable: Yes
- Hybrid Connector: Yes
- Primary Locking Feature: On the Terminal
- Strain Relief: No
- Row-to-Row Spacing: 4.5 mm [ .177 in ]

Configuration Features
- Number of Positions: 12
- Number of Rows: 2

Electrical Characteristics
- Nominal Voltage Architecture (V): 12, 24
- Operating Voltage (VDC): 24

Body Features
- Primary Product Color: Black
- Cable Exit Angle: 180°
- Body Material: PA GF

Contact Features
- Mating Tab Width (mm): 1.6, 2.8
- Mating Tab Width (in): .063, .11

Mechanical Attachment
- Mounting Feature: Without
- Terminal Position Assurance: Yes
- Polarized: No

Housing Features
- Centerline (Pitch): 5 mm [ .197 in ]

Dimensions
- Width: 26.6 mm [ 1.047 in ]
- Height: 32.6 mm [ 1.283 in ]
- Length: 45.8 mm [ 1.803 in ]

Usage Conditions
- Operating Temperature Range: -25 – 125 °C [ -13 – 257 °F ]

Operation/Application
- Circuit Application: Signal

Other
- Connector Position Assurance Capable: Yes
- Serviceable: No
Artikeldetails
RBCTMCP12VPF

Technische Daten

Produktart
Steckverbinderkörper
Serie
MCP
Material
PA (Polyamid, Nylon)
Farbe
Schwarz
Betriebstemperatur
-25°C a +105°C
Aussenmass
45,80x26,60x32,60 (L x W x H)
Spannung
24V
Montage
Auf Kabel
Art
Männlich
Anzahl der Pole
12
Anzahl der reihen
2
Raster
5.00 mm
Ausrichtung
180°
