RBCTJWPF8VF

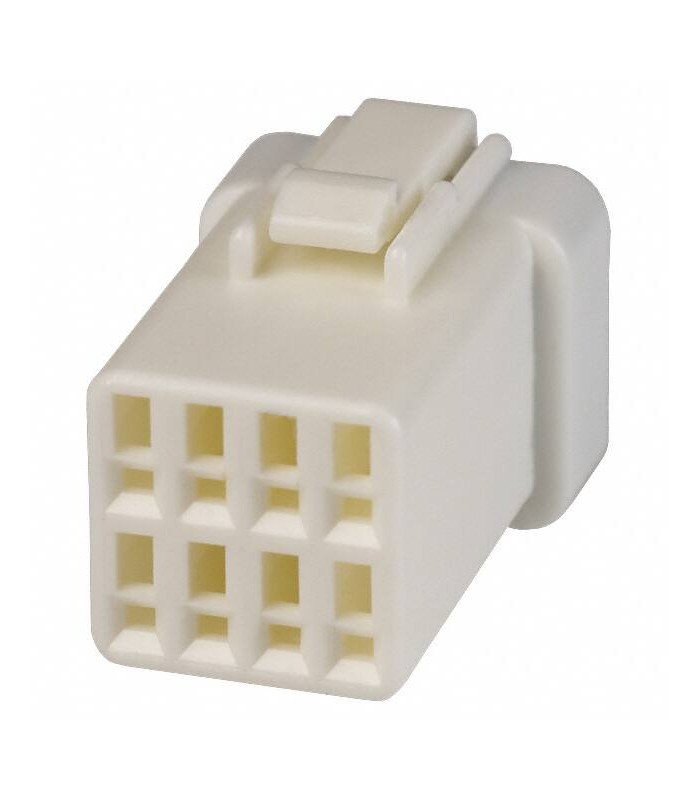

JWPF Connectors male 8 way

Errebi code: 11958
Producer code: 08R-JWPF-VSLE-D
Producer: Japan Solderless Terminals
Read moreShow less
€0.68 (tax excl.)
€0.83 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €0.75 €0.82
25 €0.66 €4.14
50 €0.62 €10.37
100 €0.54 €29.12
250 €0.46 €93.23
500 €0.41 €207.40
1000 €0.37 €456.69
Available in stock 5131 Items
Condition
New
Reference:
RBCTJWPF8VF
Brand:
Japan Solderless Terminals
Add to wishlist
Description
Series: JWPF
No. of Positions: 8
Pitch Spacing: 2mm
SVHC: No SVHC (16-Dec-2013)
Body Plating: Tin
Contact Plating: Tin
Contact Resistance Max: 10mohm
Contact Resistance Min: 5mohm
Current rating: 3.0A
Female Contact Material: Phosphor Bronze
Flammability rating: UL94V-0
Gender: Male
IP / NEMA rating: IP67
Insulation Resistance: 800Mohm
Insulation Thickness Max: 1.74mm
Insulation Thickness Min: 1.4mm
Male Contact Material: Brass
Material: Nylon
No. of Rows: 1
Operating Temperature Max: 85°C
Operating Temperature Min: -25°C
Voltage Rating V AC: 100V
Wire Size AWG Max: 22AWG
Wire Size AWG Min: 26AWG
Working Voltage: 100
Read moreShow less
Product Details
RBCTJWPF8VF

Data sheet

Product type
Connector body
Serie
JWPF
Amperage
3A
Material
PA (Polyamide, Nylon)
Color
White
Operating temperature
-25°C a +85°C
Dimensions
16,50x10,70x11,00 (L x W x H)
Flammability
94V-0
Mounting
On cable
Kind
Male
Number of poles
8
Number of rows
1
Pitch
2.00 mm
Orientation
180°
Minimum order quantity
1
Unit Type
piece
Attachments
011958_001_Drawing.pdf
Download (43.33KB)
