0,54 €
(tax excl.)
0,66 €
(inkl. MwSt.)
Errebi code: 58574Produzent code: 04R-JWPF-VRLE-SProduzent: Japan Solderless Terminals

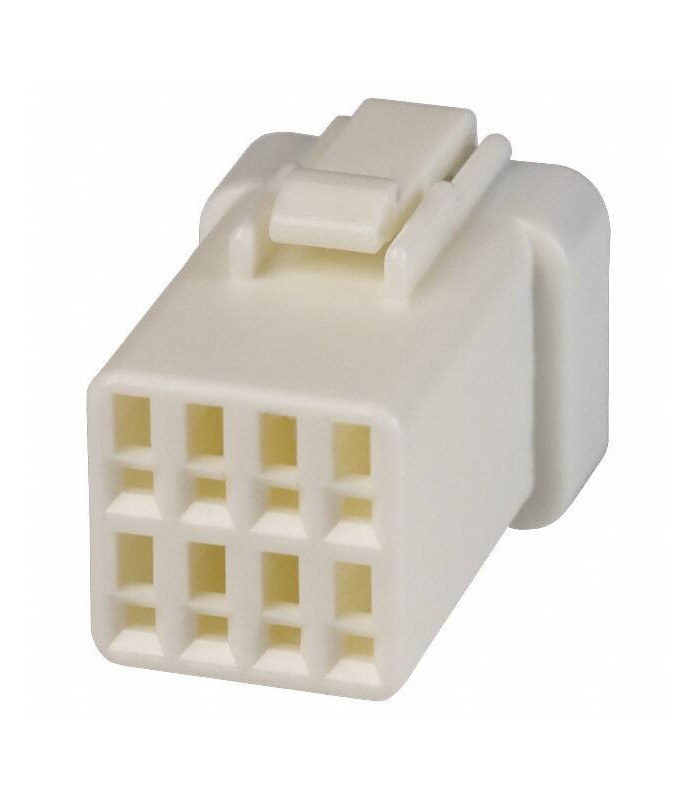

JWPF Steckverbinder männlich 8 wege
Errebi code: 11958
Produzent code: 08R-JWPF-VSLE-D
Produzent: Japan Solderless Terminals
Read moreShow lessProduzent code: 08R-JWPF-VSLE-D
Produzent: Japan Solderless Terminals
0,68 €
(tax excl.)
0,83 €
(inkl. MwSt.)
Zustand
Neu
Reference:
RBCTJWPFPF8V
Marke:
Zur Wunschliste hinzufügen
Series: JWPF
No. of Positions: 8
Pitch Spacing: 2mm
SVHC: No SVHC (16-Dec-2013)
Body Plating: Tin
Contact Plating: Tin
Contact Resistance Max: 10mohm
Contact Resistance Min: 5mohm
Current rating: 3.0A
Female Contact Material: Phosphor Bronze
Flammability rating: UL94V-0
Gender: Male
IP / NEMA rating: IP67
Insulation Resistance: 800Mohm
Insulation Thickness Max: 1.74mm
Insulation Thickness Min: 1.4mm
Male Contact Material: Brass
Material: Nylon
No. of Rows: 1
Operating Temperature Max: 85°C
Operating Temperature Min: -25°C
Voltage Rating V AC: 100V
Wire Size AWG Max: 22AWG
Wire Size AWG Min: 26AWG
Working Voltage: 100
Read moreShow less
No. of Positions: 8
Pitch Spacing: 2mm
SVHC: No SVHC (16-Dec-2013)
Body Plating: Tin
Contact Plating: Tin
Contact Resistance Max: 10mohm
Contact Resistance Min: 5mohm
Current rating: 3.0A
Female Contact Material: Phosphor Bronze
Flammability rating: UL94V-0
Gender: Male
IP / NEMA rating: IP67
Insulation Resistance: 800Mohm
Insulation Thickness Max: 1.74mm
Insulation Thickness Min: 1.4mm
Male Contact Material: Brass
Material: Nylon
No. of Rows: 1
Operating Temperature Max: 85°C
Operating Temperature Min: -25°C
Voltage Rating V AC: 100V
Wire Size AWG Max: 22AWG
Wire Size AWG Min: 26AWG
Working Voltage: 100
RBCTJWPFPF8V
Technische Daten
- Produktart
- Steckverbinderkörper
- Serie
- JWPF
- Stromstärke
- 3A
- Material
- PA (Polyamid, Nylon)
- Farbe
- Weiß
- Betriebstemperatur
- -25°C a +85°C
- Aussenmass
- 16,50x10,70x11,00 (L x W x H)
- Entzündbarkeit
- 94V-0
- Montage
- Auf Kabel
- Art
- Männlich
- Anzahl der Pole
- 8
- Anzahl der reihen
- 1
- Raster
- 2.00 mm
- Ausrichtung
- 180°
- Mindestbestellmenge
- 1
- Maßeinheit
- stück
