€3,176.00
(tax excl.)
€3,874.72
(tax incl.)
Errebi code: 65520Producer code: RBEWAT301Producer: ErreBi Group

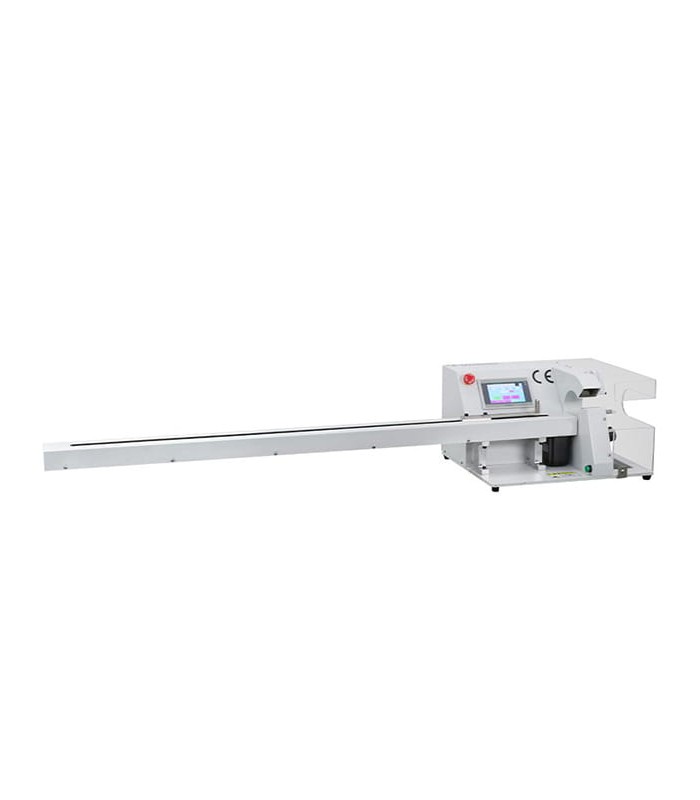

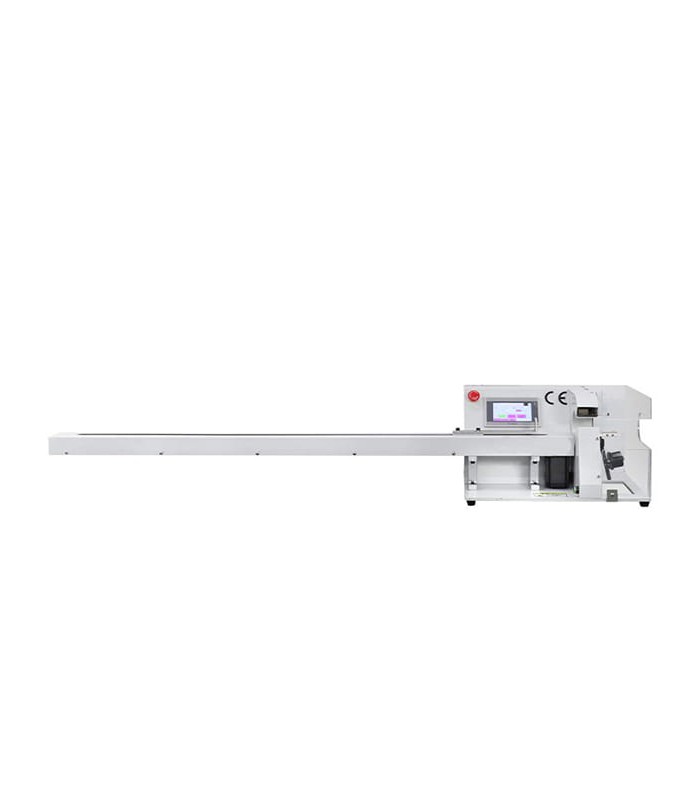

Automatic cable taping machine with linear feed (Ø 0.1 - 30 mm)
Errebi code: 65521
Producer code: RBEWAT301P
Producer: ErreBi Group
Read moreShow lessProducer code: RBEWAT301P
Producer: ErreBi Group
€4,581.00
(tax excl.)
€5,588.82
(tax incl.)
Condition
New
Reference:
RBEWAT301P
Brand:
Add to wishlist
Technical data
Model: RBEWAT301P
Application: long wire winding
Feeding length: max. 1050 mm (customizable)
Winding outer diameter:
- 3 - 25 mm (standard version)
- 0.1 - 3 mm (confirmed based on material)
- 25 - 30 mm (confirmed based on material)
Ribbon width: 5 - 25 mm (customizable)
Internal diameter of the ribbon: 38/32 mm (customizable)
External diameter of the belt: < 110 mm
Rotation speed: 300 - 2500 rpm. (adjustable)
Power supply: 110, 220 V (50 - 60 Hz)
Weight: 40 kilograms
Dimensions: 1470*380*280mm
Read moreShow less
Model: RBEWAT301P
Application: long wire winding
Feeding length: max. 1050 mm (customizable)
Winding outer diameter:
- 3 - 25 mm (standard version)
- 0.1 - 3 mm (confirmed based on material)
- 25 - 30 mm (confirmed based on material)
Ribbon width: 5 - 25 mm (customizable)
Internal diameter of the ribbon: 38/32 mm (customizable)
External diameter of the belt: < 110 mm
Rotation speed: 300 - 2500 rpm. (adjustable)
Power supply: 110, 220 V (50 - 60 Hz)
Weight: 40 kilograms
Dimensions: 1470*380*280mm
RBEWAT301P
Data sheet
- Product type
- Automatic wrapping and tying machine
- Voltage/Frequency
- AC: 110-220V, 50/60Hz
- Dimensions
- 1470x380x280 (L x W x H) mm
- Minimum order quantity
- 1
- Unit Type
- piece
- Width of material
- 5 - 25 mm
- Viewing mode
- 7" touch screen
- Unwinding and winding speed
- 300-2500 rpm
