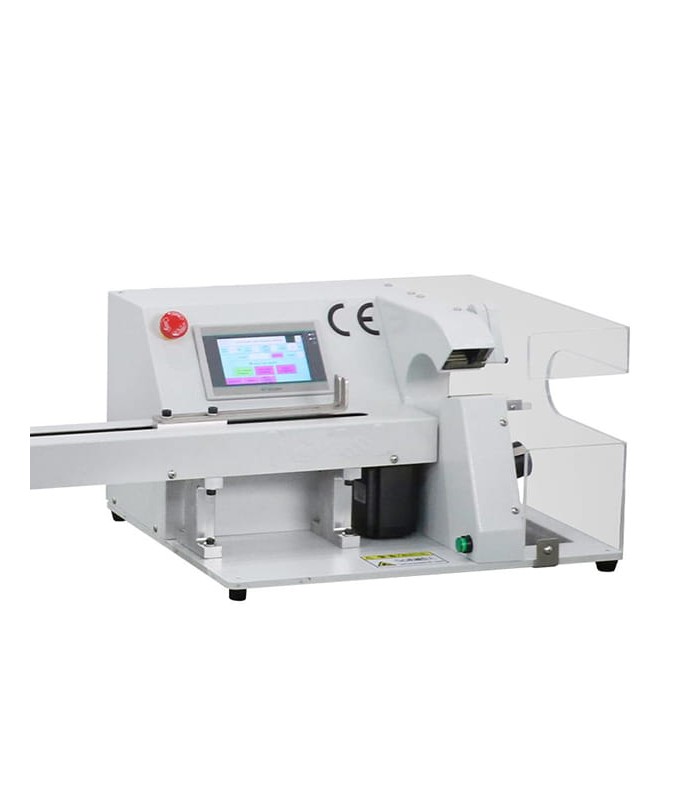

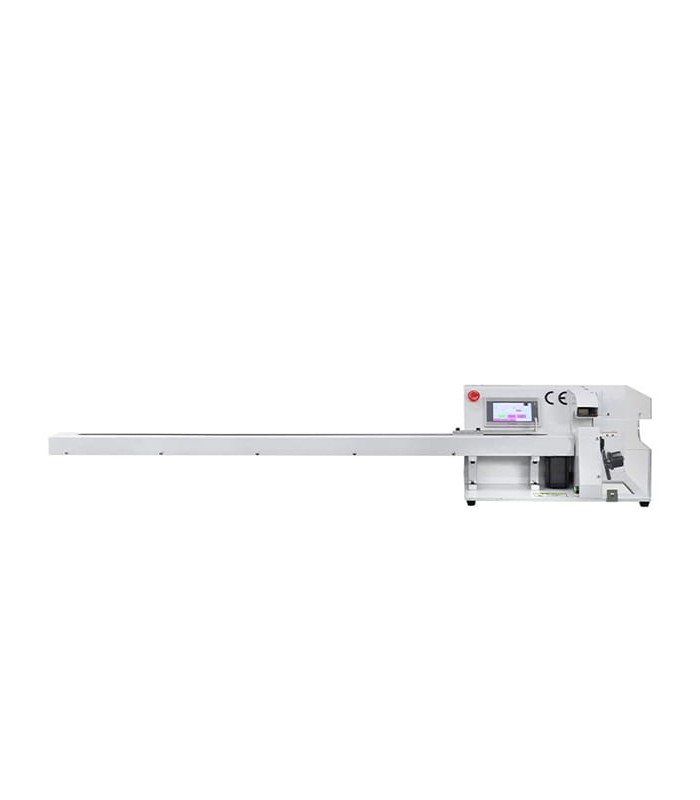

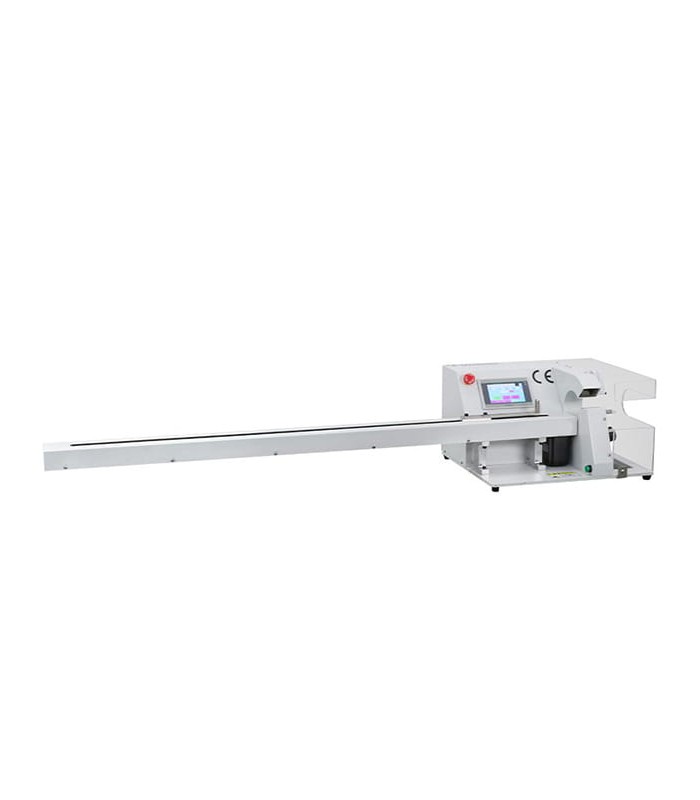

Automatische Kabelwickelmaschine mit linearem Vorschub (Ø 0,1 - 30 mm)

Technical data
Model: RBEWAT301P
Application: long wire winding
Feeding length: max. 1050 mm (customizable)
Winding outer diameter:
- 3 - 25 mm (standard version)
- 0.1 - 3 mm (confirmed based on material)
- 25 - 30 mm (confirmed based on material)
Ribbon width: 5 - 25 mm (customizable)
Internal diameter of the ribbon: 38/32 mm (customizable)
External diameter of the belt: < 110 mm
Rotation speed: 300 - 2500 rpm. (adjustable)
Power supply: 110, 220 V (50 - 60 Hz)
Weight: 40 kilograms
Dimensions: 1470*380*280mm
