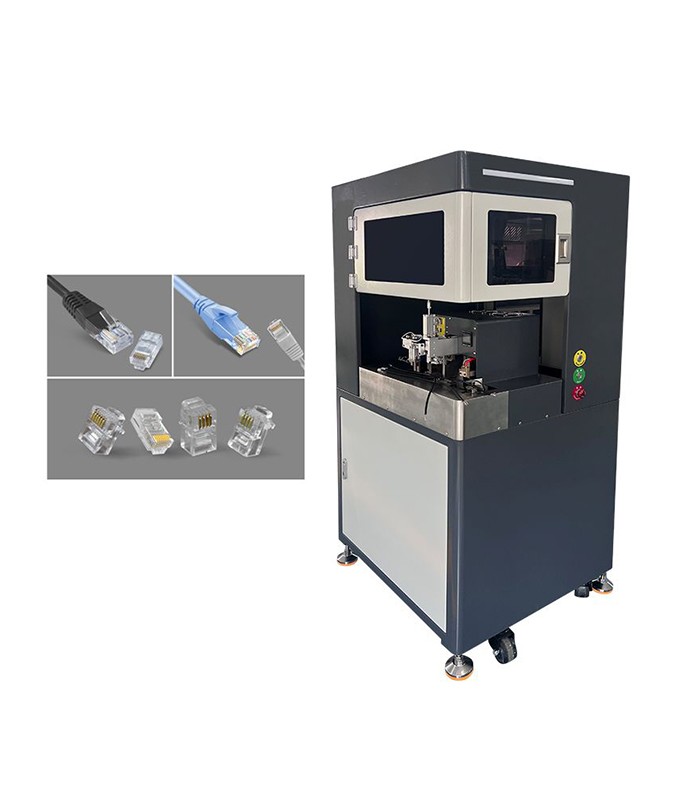

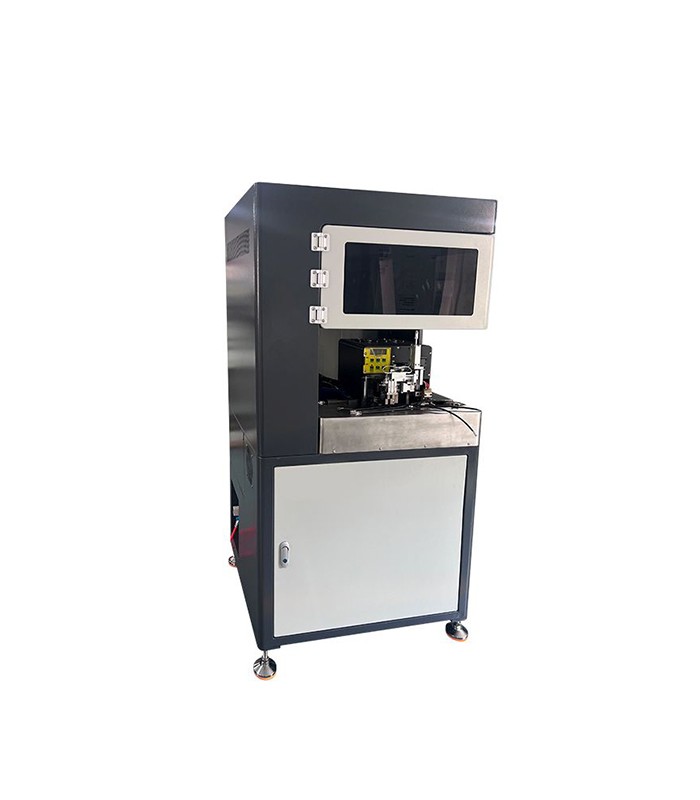

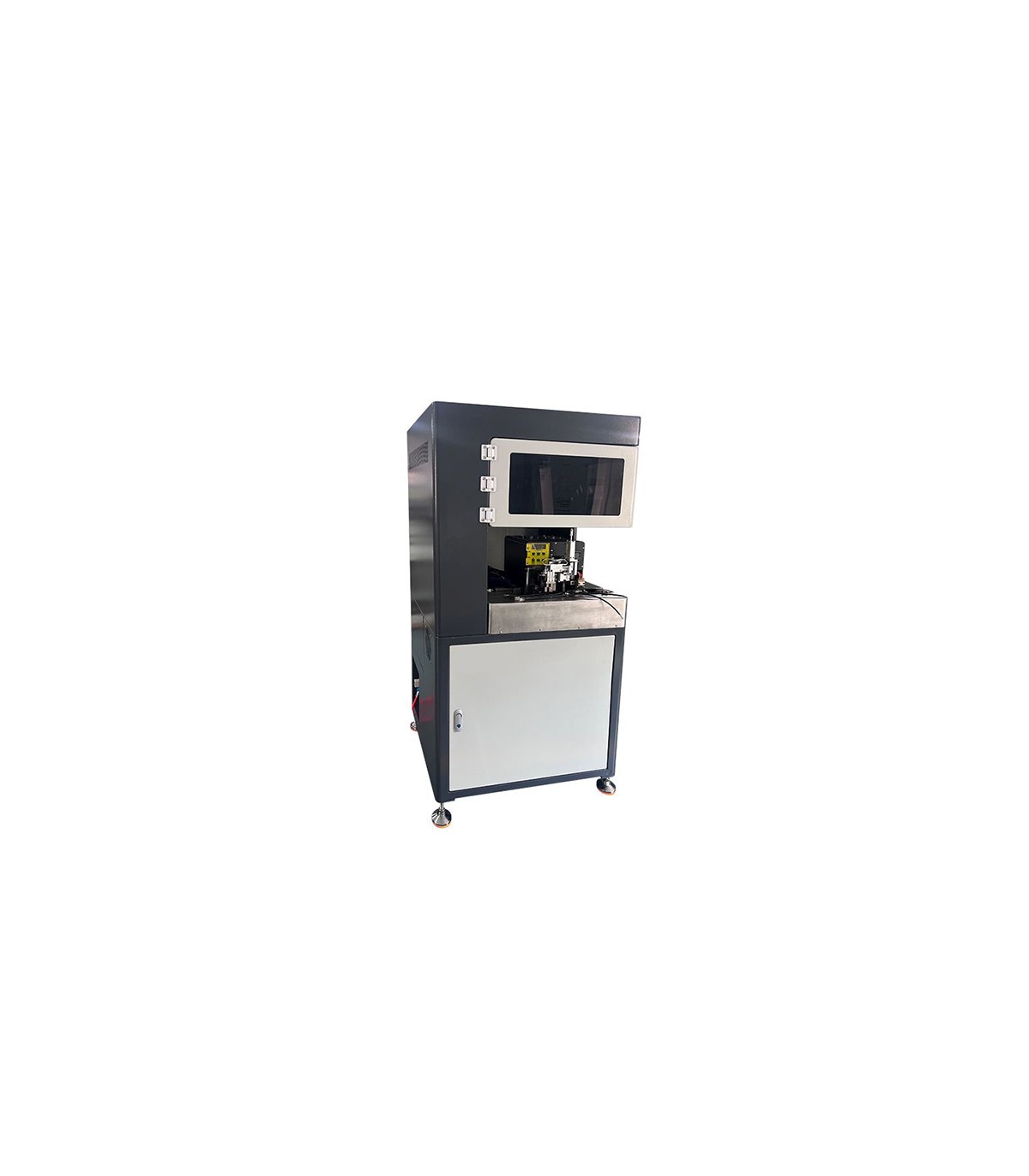

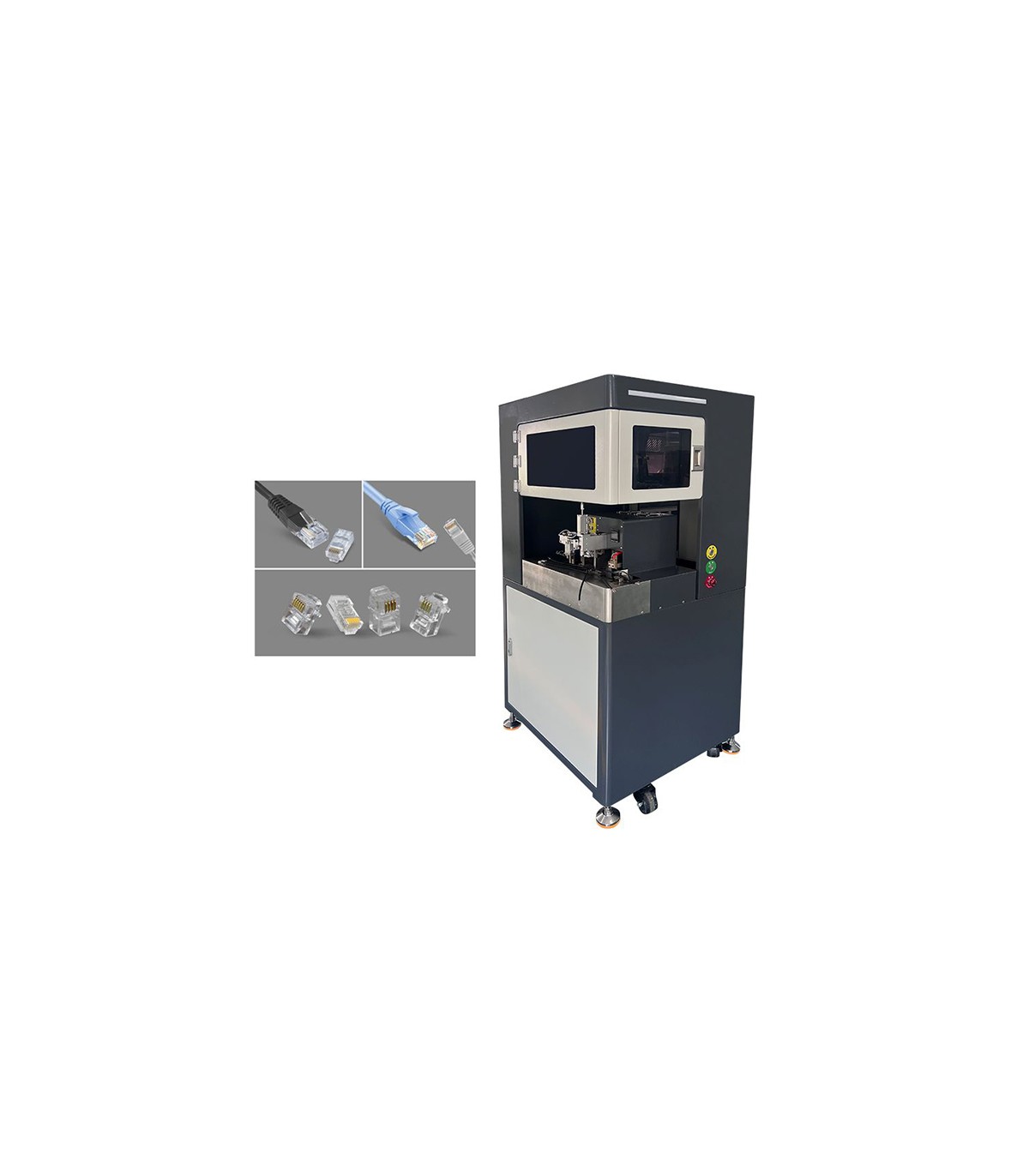

Automatic crimping machine for RJ connectors (2 to 10 pins)

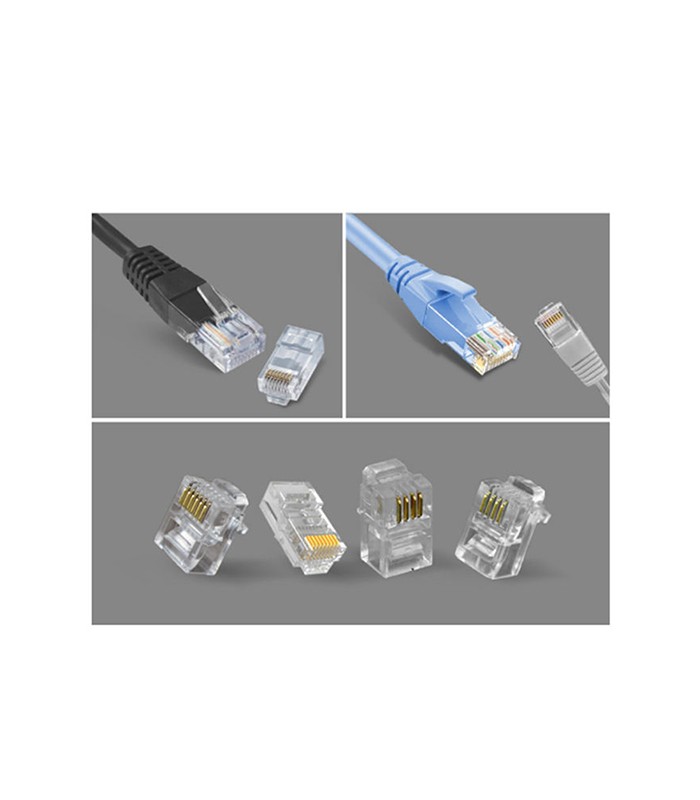

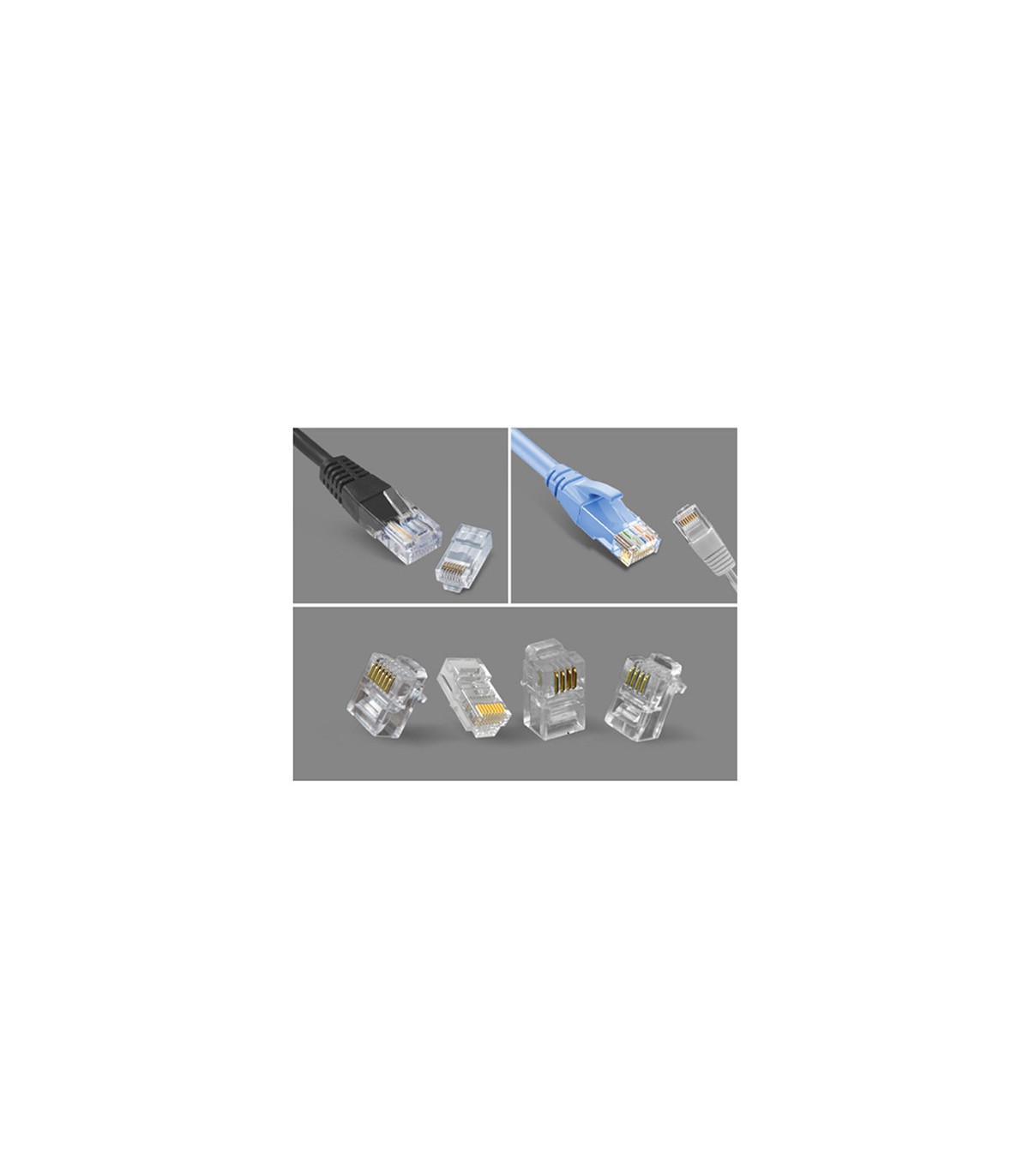

The RBEW5485 is a crimping machine designed for repeatable and standardized operations on 2 to 10 pole (2P - 10P) connectors/terminals, with the goal of increasing productivity and reducing the variability typical of manual processes.

Its distinctive feature is the vibrating plate feeding system, which helps keep a more continuous and orderly flow of components during the work cycle: in practice, it is a solution for those who need medium-to-large batches and want a more stable process.

The RBEW5485 is operated by a foot pedal: the operator positions the component and starts the cycle with a simple, repeatable command. A self-locking function is highlighted: even if the pedal is kept pressed longer, the machine performs only one crimp per activation, helping prevent double strokes/unintentional actions and keeping the cycle controlled.

Practical advantages for sales

1) Process repeatability: designed to keep a consistent result, with crimping accuracy ±0.1

2) Productivity: 400 - 600 pcs/hour, useful for repetitive batches and continuous workflows.

3) Assisted feeding with vibrating plate: improves order and continuity of operation in production environments (less “messy” manual handling of components).

Technical specifications

Model: RBEW5485

Applicable: 2P - 10P

Power supply: AC 110/220 V – 50/60 Hz

Speed: 400 - 600 pcs/h

Crimping accuracy: ± 0.1

Air pressure: 0.5 – 0.7 MPa

Pedal: Yes

Safety: acrylic cover

Function: self-locking (one crimp per activation)

Weight: 350 kg

Dimensions: 800x900x1250 mm
