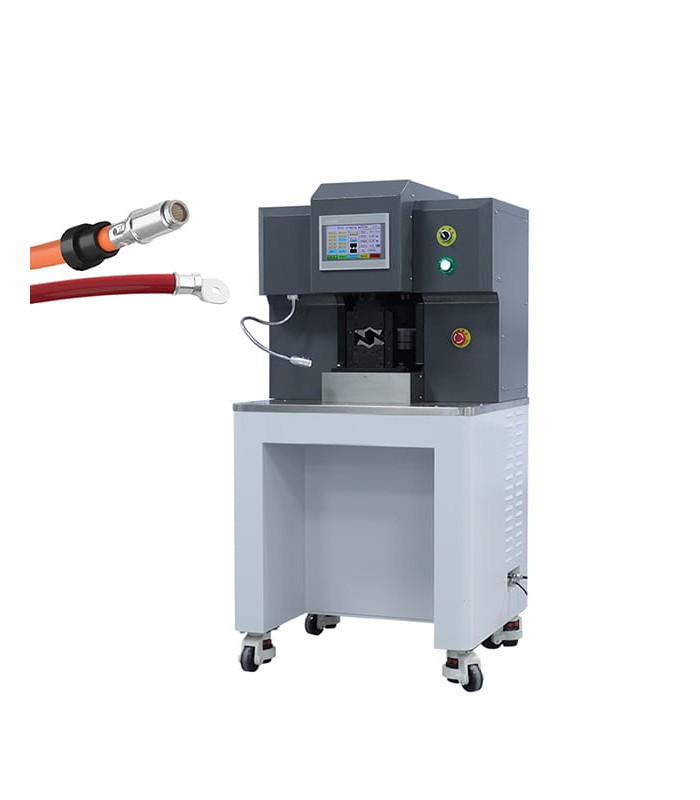

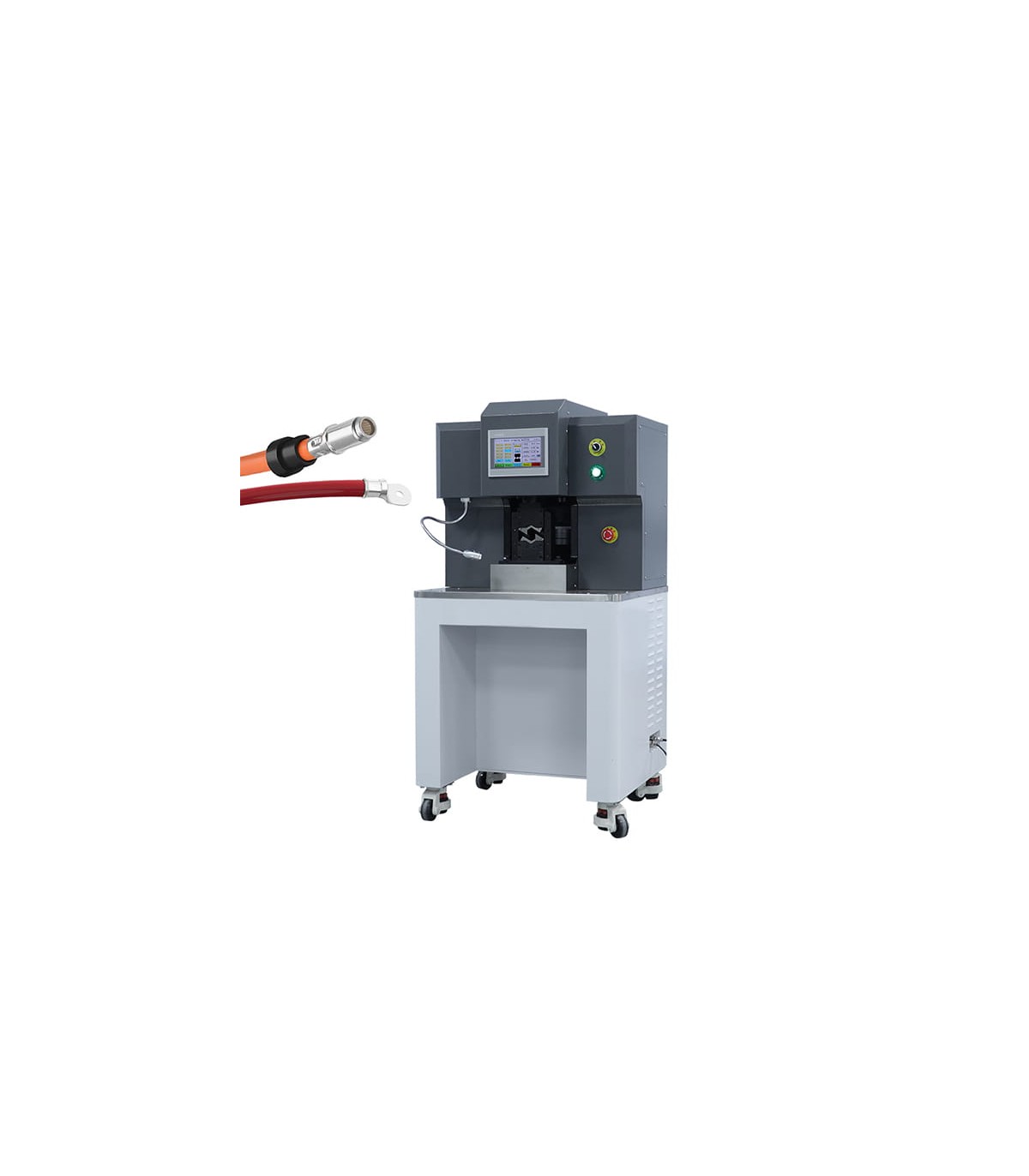

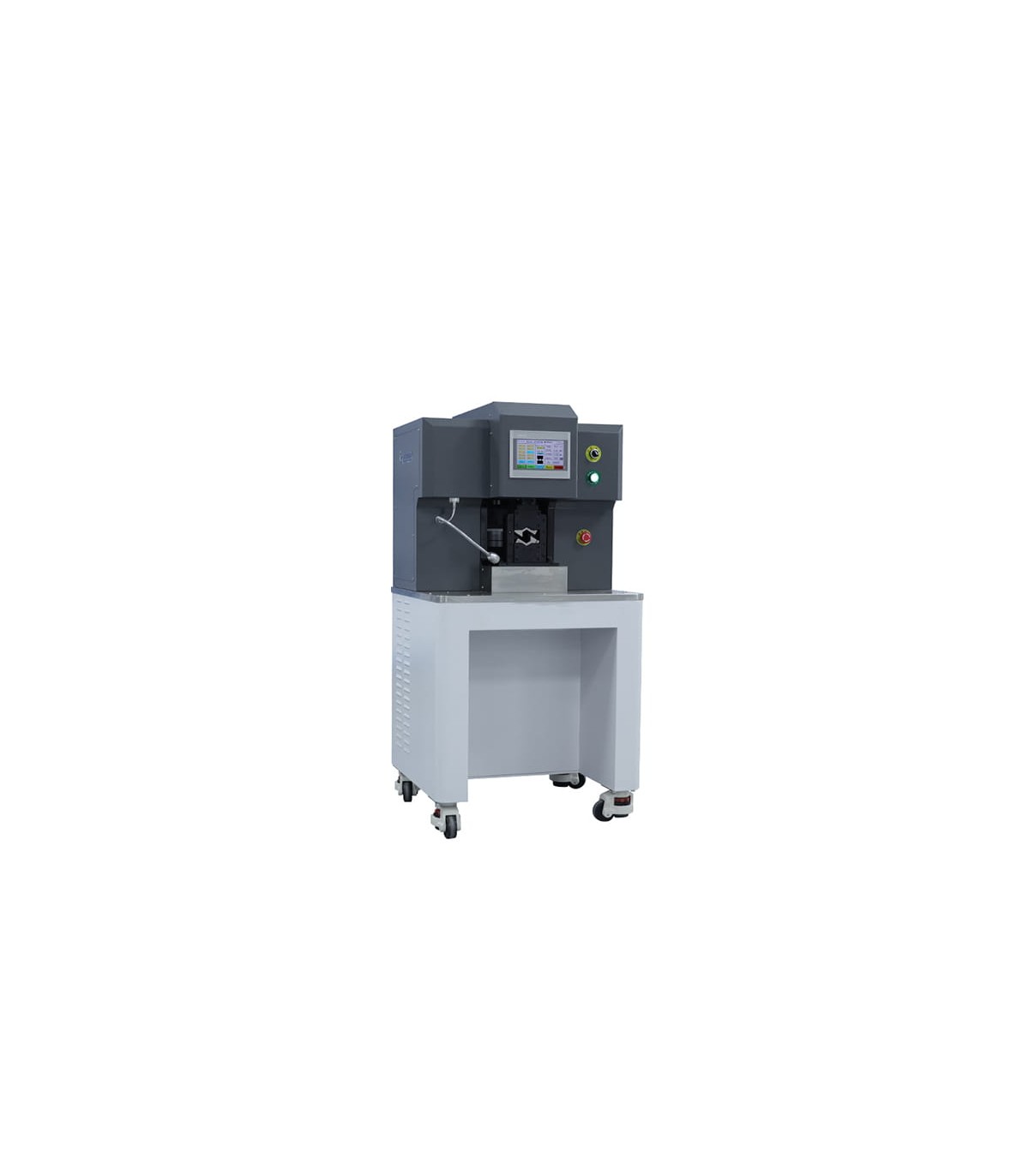

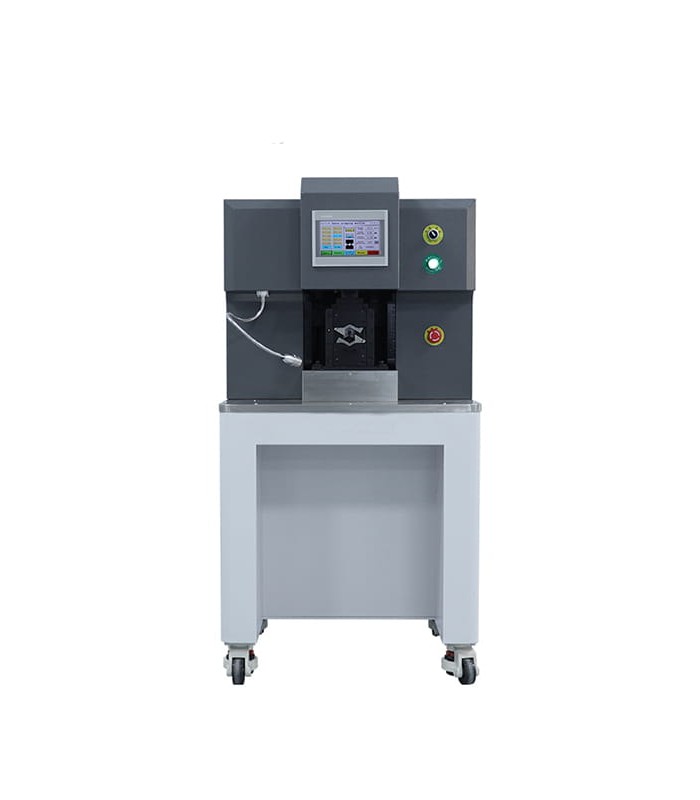

Electronic machine for hexagonal crimping of bare cable lugs 4 - 120 mmq with support bench

The RBEW5460 is a crimping machine designed for industrial applications requiring high force, consistent precision and good operational flexibility.
It is designed for processing medium to large cross-section cables, from 4 to 120 mm².

The core of the machine is the servo motor drive system, which ensures precise control of the crimping movement and working position.
Compared to traditional solutions, this architecture allows finer parameter adjustment, greater consistency between cycles and better adaptability to different terminals, cable sizes and tooling configurations.

From an operational point of view, the RBEW5460 is designed to offer high productivity combined with ease of use.

Among the main advantages of this machine is the high-precision servo control, ensuring stable and repeatable crimping.
This is complemented by fine height adjustment via touchscreen, simplifying setup and improving accuracy. Another advantage is the programmable management of up to 30 programs, helping reduce setup time and minimizing operator errors.

TECHNICAL FEATURES

Model: RBEW5460

Machine type: terminal crimping machine

Wire cross-section: 4 - 120 mm²

Crimping force: up to 30 T

Stroke: approx. 40 mm

Crimping accuracy: ±0.015 mm

Productivity: up to 1500 pcs/hour

Cycle time: approx. 2.5 seconds

Installed power: 2300 W

Drive system: servo motor

Control: touchscreen

Programs: up to 30

Power supply: 220V / 110V - 50/60 Hz

Start mode: electric

Machine dimensions: 580 × 780 × 1480 mm

Weight: 370 kg
